Product Overview

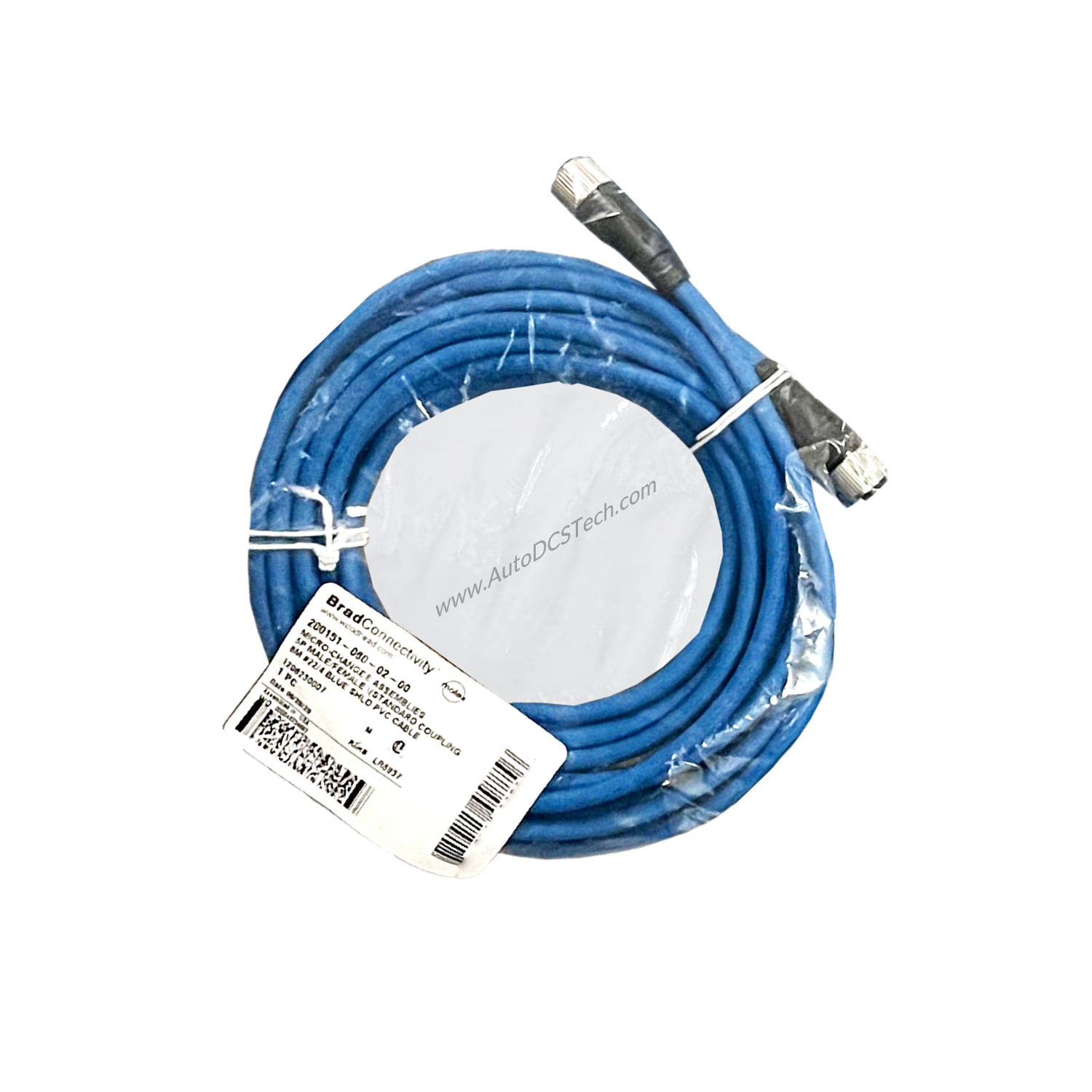

When vibration monitoring systems demand reliable signal transmission in harsh industrial environments, the Bently Nevada 200151-40-03-10 Accelerometer Interface Standard Cable delivers consistent performance. This 4.0-meter cable features connectors on both ends, making it a direct replacement or upgrade for existing accelerometer connections. Designed for maintenance engineers who prioritize uptime, this cable reduces installation time and minimizes signal degradation.
Technical Specifications Breakdown
Cable Length and Armor

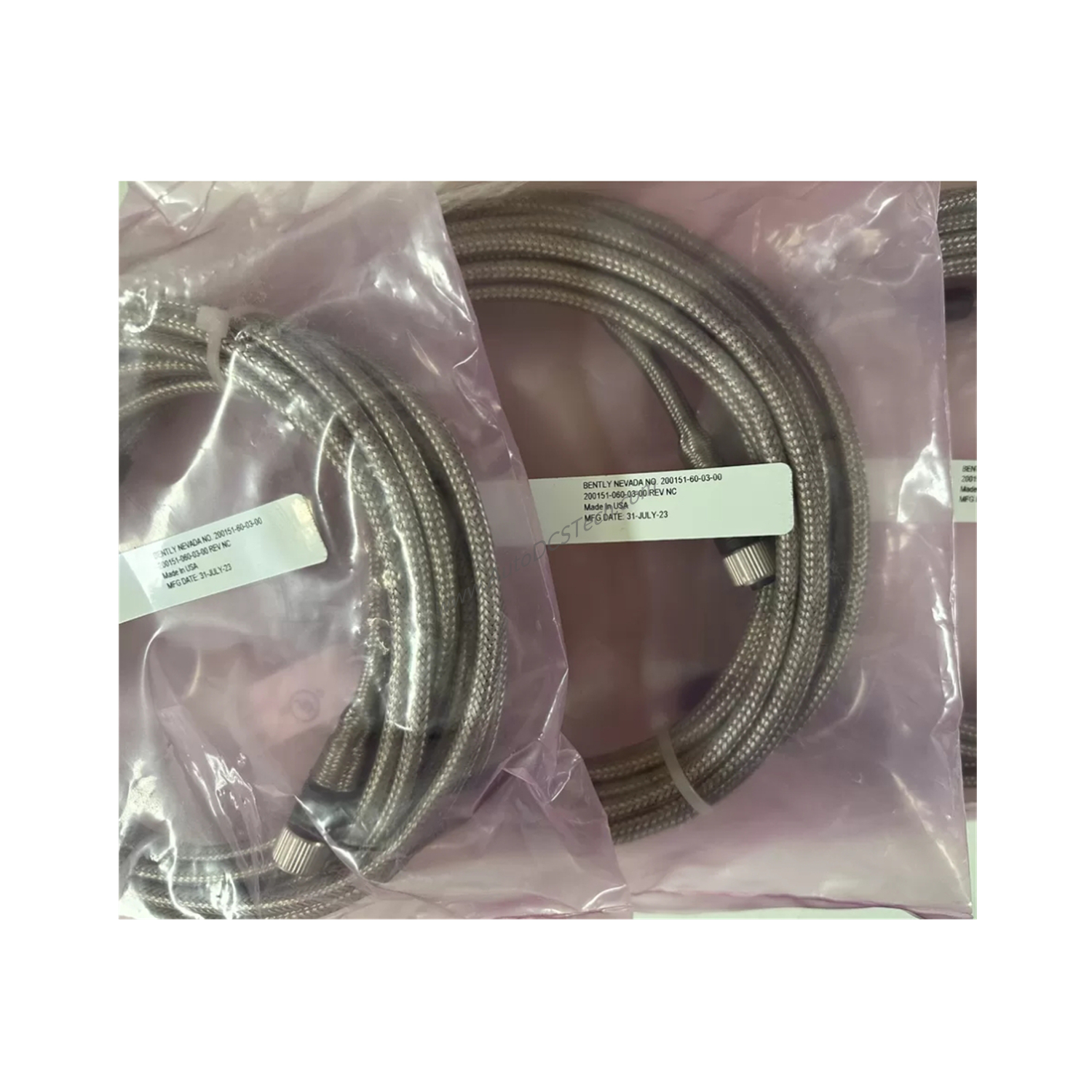

The 200151-40-03-10 uses a -40 cable length designation, providing exactly 4.0 meters of reach. The 03 armor option specifies a blue cable with armor, offering mechanical protection in demanding environments. This construction helps prevent damage from abrasion or impact during routine maintenance activities.
Coupling Nut Design
Option 10 includes an enhanced coupling nut on both ends. This improved grip simplifies tightening the cable to the accelerometer, reducing the risk of loose connections that cause intermittent signals. Maintenance engineers will appreciate the tactile feedback during installation.
Environmental Resistance
The cable operates reliably from -20°C to +100°C (-4°F to +212°F). For applications below -20°C, the cable must remain stationary to avoid flex damage. Connectors provide an IP67 seal to transducers and mating hardware, protecting against moisture and dust ingress. The molded connectors and DC4 electrical insulating compound add thermal shock protection.
Construction Quality
Four conductors of 22 AWG wire with a braided shield and drain wire (85% minimum coverage) ensure signal integrity. The PVC outer jacket resists chemicals and abrasion. Nickel-plated coupling nuts provide corrosion resistance in humid or corrosive environments.
Industry Applications
Rotating Machinery Monitoring
In steam turbines, compressors, and pumps, the 200151-40-03-10 connects accelerometers to monitoring systems. The 4.0-meter length suits typical machine train layouts, while the enhanced coupling nut ensures a secure connection that withstands vibration.
Process Plant Reliability
Chemical plants and refineries benefit from the IP67 seal and armored cable. Maintenance engineers can replace worn cables quickly, reducing unplanned downtime. The -20°C to +100°C range covers most outdoor and indoor process environments.
Installation & Setup Guidance
Before installation, verify the cable path avoids sharp edges and excessive bending. The minimum bend radius is 63.5 mm (2.5 inches). Route the cable to prevent flexing below -20°C. Tighten the enhanced coupling nuts firmly by hand or with a wrench on the hex portion. Ensure the mating connector is clean and dry to maintain the IP67 seal. For thermal shock-prone areas, allow the DC4 compound to cure fully (24 hours at -55°C to +121°C) before exposing to temperature extremes.
Maintenance & Reliability
Inspect the cable jacket and connectors periodically for cuts, abrasion, or corrosion. Check coupling nut tightness during routine vibration sensor calibration. Replace the cable if the braided shield becomes exposed or if moisture enters the connector. The PVC outer jacket and nickel-plated nuts resist typical industrial contaminants, extending service life. Following these practices reduces signal noise and prevents false alarms.
Compatibility & Integration
This cable is designed for Bently Nevada accelerometers and compatible monitoring systems. The connectors on both ends simplify integration into existing installations. Verify connector type and pinout match your accelerometer and monitor before ordering.
Selection Guide & Purchasing Advice
When selecting the 200151-40-03-10, confirm your required cable length (4.0 meters) and armor option (blue with armor). The enhanced coupling nut is standard on both ends. For applications requiring different lengths or armor, consult the full 200151 series options. SpareTechPLC stocks this exact configuration for fast delivery. Contact our team to verify compatibility with your existing Bently Nevada system.
Frequently Asked Questions
Q: What is the operating temperature range of the 200151-40-03-10?
A: The cable operates from -20°C to +100°C (-4°F to +212°F). Below -20°C, avoid flexing the cable to prevent damage.
Q: Does the cable come with connectors on both ends?
A: Yes, the 200151-40-03-10 includes connectors on both ends, with enhanced coupling nuts for better grip.
Q: What is the minimum bend radius?
A: The minimum bend radius is 63.5 mm (2.5 inches).
Q: How do I ensure a proper IP67 seal?
A: Clean and dry the mating surfaces before connection. Tighten the coupling nut securely. The molded connector and DC4 compound provide the seal.
Q: Can I use this cable in a chemical plant?
A: Yes, the PVC outer jacket and nickel-plated coupling nuts resist many industrial chemicals. Verify compatibility with specific chemicals in your environment.
