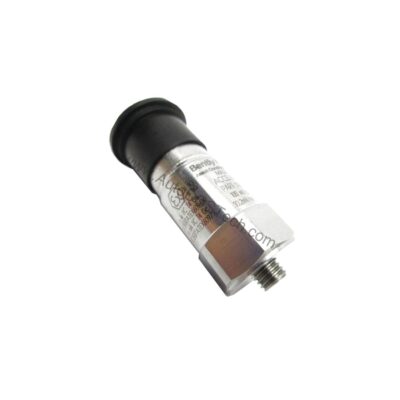

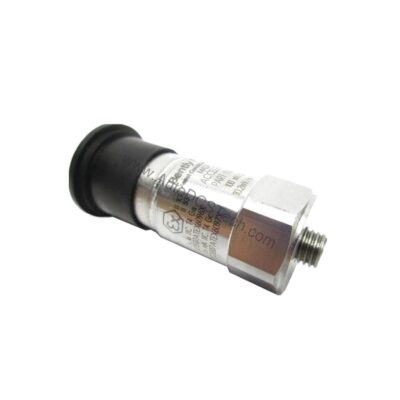

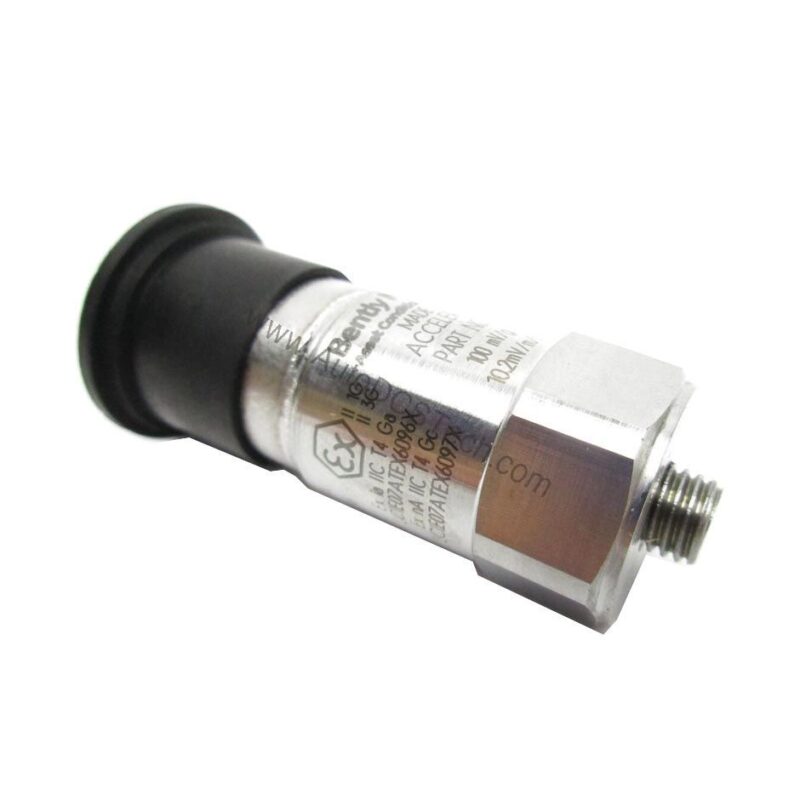

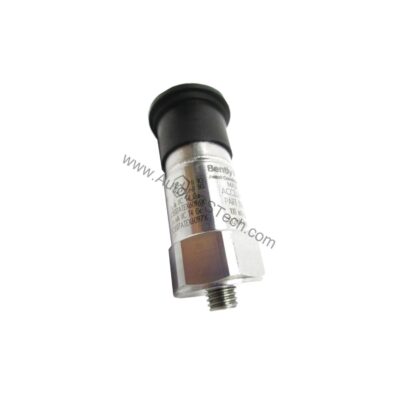

200350-09-00-01: Accelerometer – High Performance Vibration Sensor
The 200350-09-00-01 is the Accelerometer – High Performance Vibration Sensor covered on this page. The attribute that decides whether it fits the existing installation without modification is ±50 g.
The reason to specify this exact variant is accelerometer – high performance vibration sensor. In a machine protection or condition-monitoring installation accelerometer – high performance vibration sensor is the attribute that decides whether the sensor reaches the target and reads it on the correct gap. A probe or transducer specified to the wrong case length, thread or sensitivity either cannot reach the measured surface or returns vibration values that do not line up with the rest of the train. Confirming ±50 g against the existing mount is therefore the first check before a replacement, not an afterthought.
Configuration From the Published Data
This unit is documented as a Accelerometer – High Performance Vibration Sensor. The configuration carried in the order code is: Measurement Range: ±50 g; Mounting Thread: 1/4-28 Female. These are the figures to confirm against the existing mount and monitor before ordering a replacement.
| Feature | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Brand | Bently Nevada |
| Part Number | 200350-09-00-01 |
| Sensitivity | 100 mV/g ±20% (10.2 mV/m/s² ±20%) |
| Frequency Range | 30-600,000 cpm (0.5-10,000 Hz) |
| Measurement Range | ±50 g |
| Output Bias Voltage | 8 to 12 VDC |
| Excitation Voltage | 18 to 28 VDC |
| Constant Current Excitation | 2 to 20 mA |
| Settling Time | 2.0 sec |
| Output Impedance | 108 ohms |
| Operating Temperature | -65°F to +250°F (-54°C to +121°C) |
| Shock Survivability | 5,000 g pk |
| Relative Humidity | 100% condensing |
| Enclosure Rating | IP68 |
| Mounting Thread | 1/4-28 Female |
| Mounting Torque | 2 to 5 ft-lb (2.7 to 6.8 N-m) |
| Sensing Element | Ceramic |
| Sensing Geometry | Shear |
| Housing Material | Stainless Steel |
| Sealing | Welded Hermetic |
| Electrical Connector | 2-Pin Mil-C-5015 |
| Electrical Connection Position | Top |
| Agency Approvals | CSA, ATEX, IECEx |
| Mounting Stud | No mounting stud |
| Tolerance | 100 mV/g ±20% |
| Hex Size | 11/16" (1.8 cm) |
| Height | 1.65" (4.24 cm) |
| Weight | 0.051 kg |
| Transverse | ≤7% |
| Amplitude Linearity | ±1% |
| Mounted Resonant Frequency | 1500 kcpm (25 kHz) |
| Broadband Electrical Noise (1-10 kHz) | 350 μg (3,434 μm/s²). |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| bently-nevada-200350-09-00-00-200350-accelerometers-high-performance-vibrat | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | 200350-09-00-01 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
