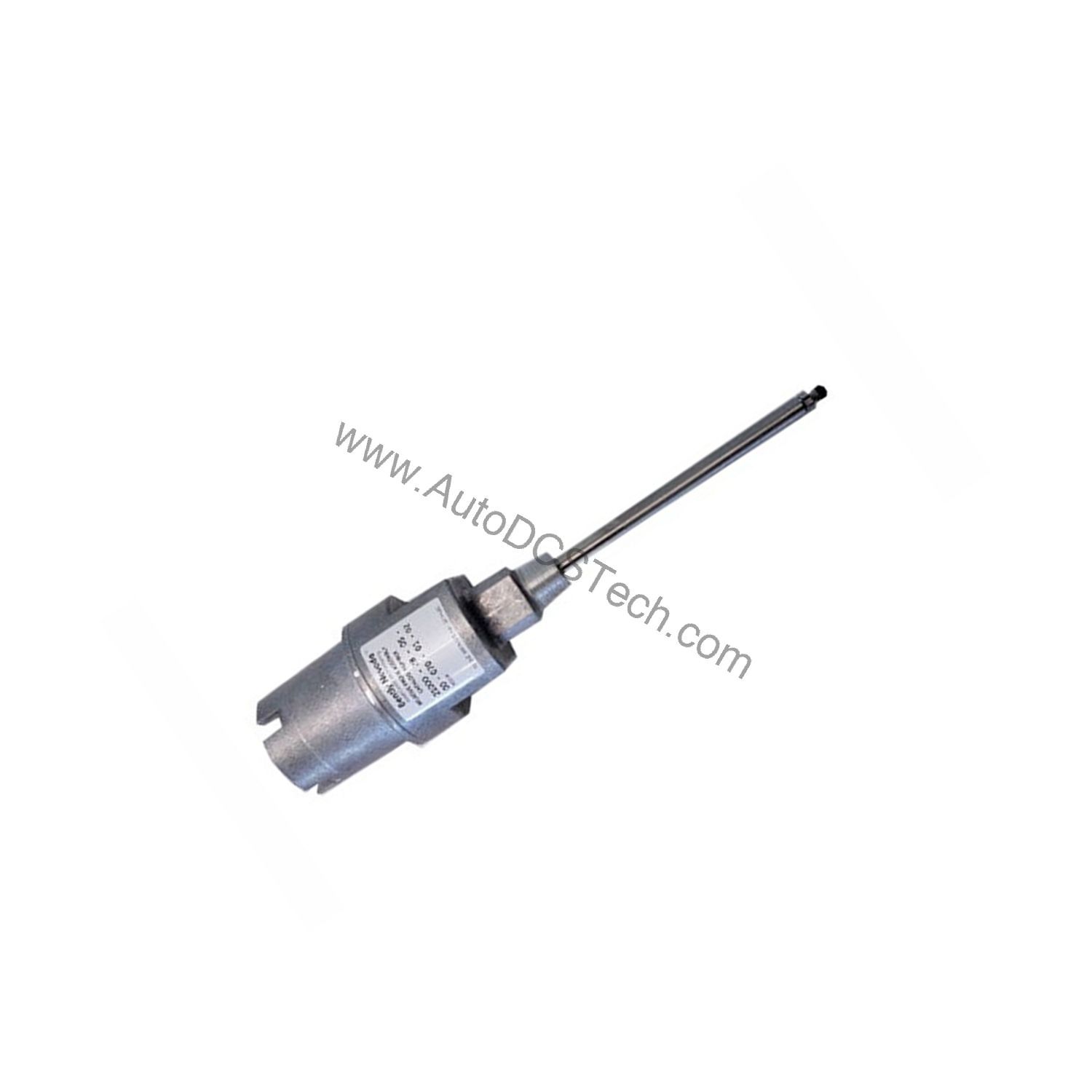

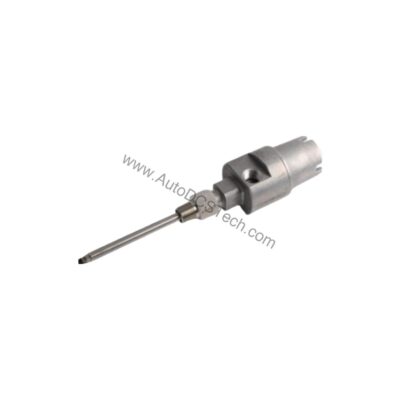

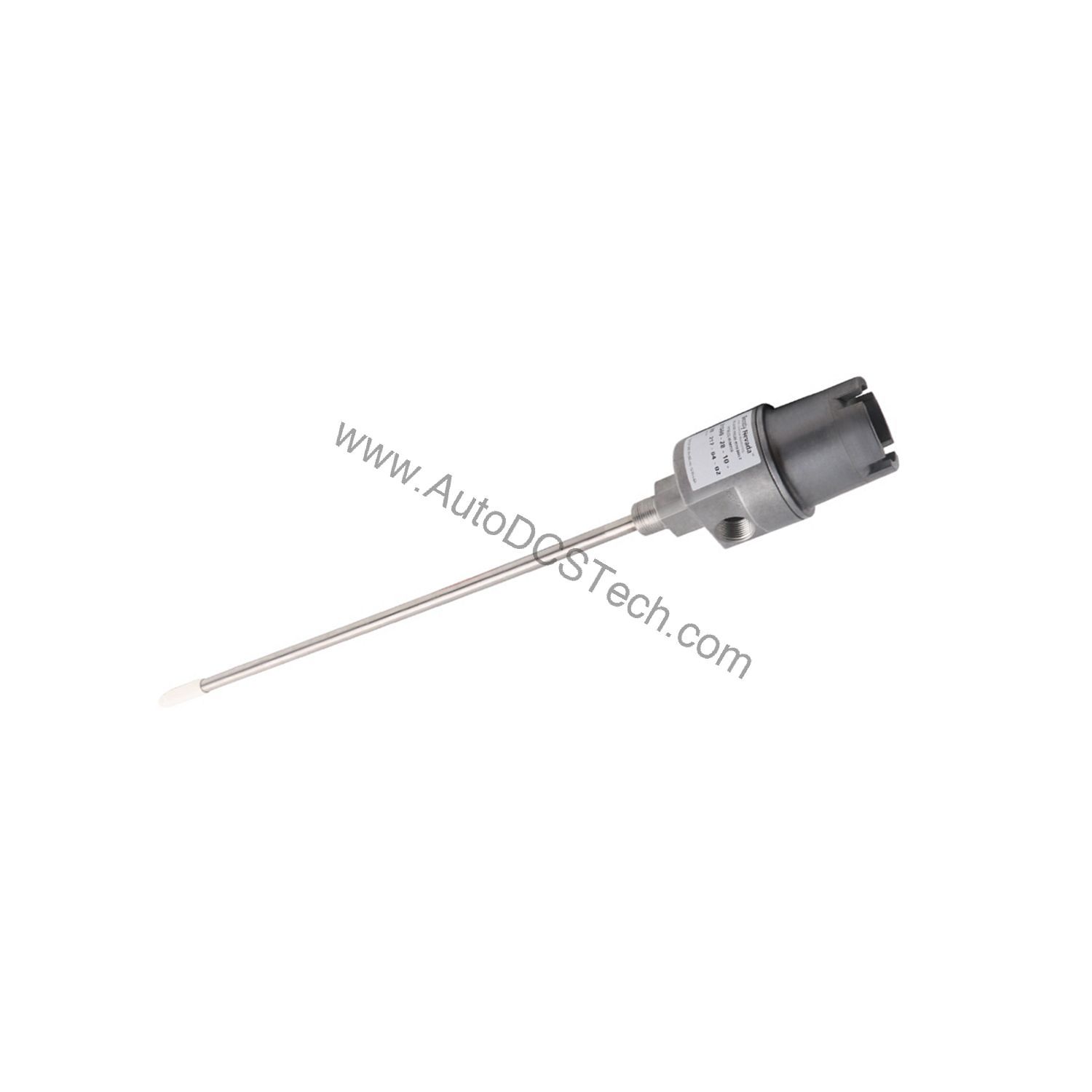

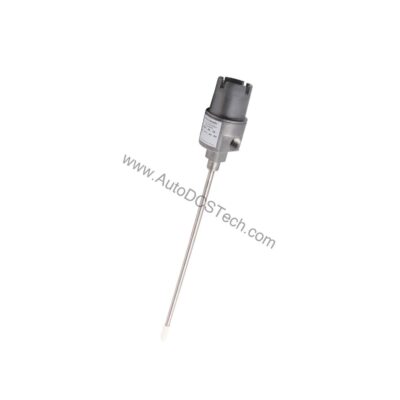

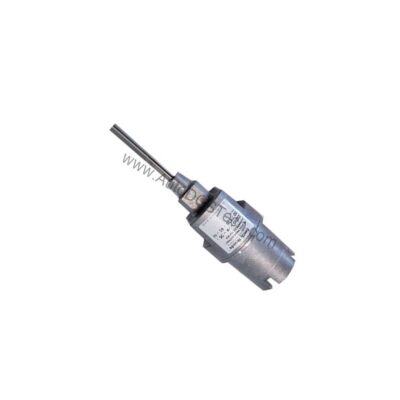

Bently Nevada 21000-16-05-15-098-03-02 Proximity Probe Housing Assembly

Industrial Vibration Monitoring with the Bently Nevada 21000-16-05-15-098-03-02

When protecting critical rotating machinery, reliable vibration measurement is non-negotiable. The Bently Nevada 21000-16-05-15-098-03-02 proximity probe housing assembly provides a robust, field-proven solution for externally mounted probes in demanding environments. Designed for use with a 3300 XL 8 mm probe (option 16), this assembly ensures accurate, repeatable shaft displacement readings.

Technical Specifications Breakdown

Key parameters for the 21000-16-05-15-098-03-02 are listed below for quick reference:

Industry Applications

This housing assembly is engineered for continuous vibration monitoring on steam turbines, centrifugal compressors, and large pumps. The 0.5 m probe cable and 9.8 in probe penetration allow installation in tight clearance zones while maintaining signal integrity. The CSA Type 4 enclosure rating ensures protection against water ingress and dust, making it suitable for outdoor and washdown areas.

Installation & Setup Guidance

Mount the assembly using the 3/4-14 NPT thread (option 02) into a suitable boss on the machine casing. The standoff adapter (1.5 in) positions the probe at the correct gap. Use the supplied cable seal grip with the appropriate grommet (1/8 to 3/16, 1/4 to 5/16, or 5/16 to 3/8 inches) to maintain environmental sealing. Ensure the probe tip is clean and the target surface is free of runout.

Maintenance & Reliability

Periodically inspect the O-rings and thread seal for signs of wear or contamination. Verify that the dome cover is tight and the conduit connections are secure. The 304 stainless steel sleeve resists corrosion in humid or chemically aggressive atmospheres. For hazardous area installations, always follow the CSA approval conditions (Class 1 Divisions 1 and 2 Groups C and D, T5 @ Ta = -50 °C to +40 °C, T4 @ Ta = -50 °C to +80 °C).

Selection Guide & Purchasing Advice

When ordering a replacement or new installation, confirm the required probe cable length, standoff adapter length, and probe penetration dimension (D). The 21000-16-05-15-098-03-02 is a complete assembly with fittings included. AutoDCSTech stocks this unit as new and original in factory packing with a 12-month warranty. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting & Common Issues

If vibration readings are erratic, check the probe cable for damage and ensure the connector is fully seated. Verify that the probe tip is not contacting the shaft (gap voltage should be within the probe's linear range). Inspect the cable seal grip for proper compression to prevent moisture ingress. For non-incendive circuits, confirm wiring per drawing 140979.
