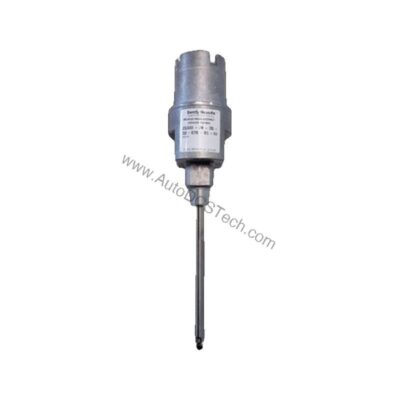

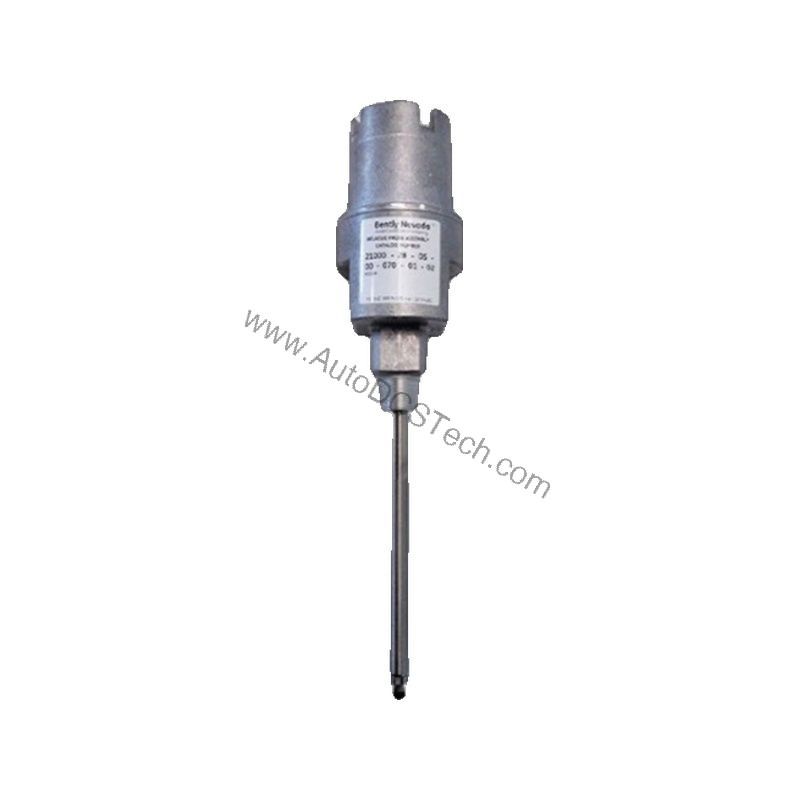

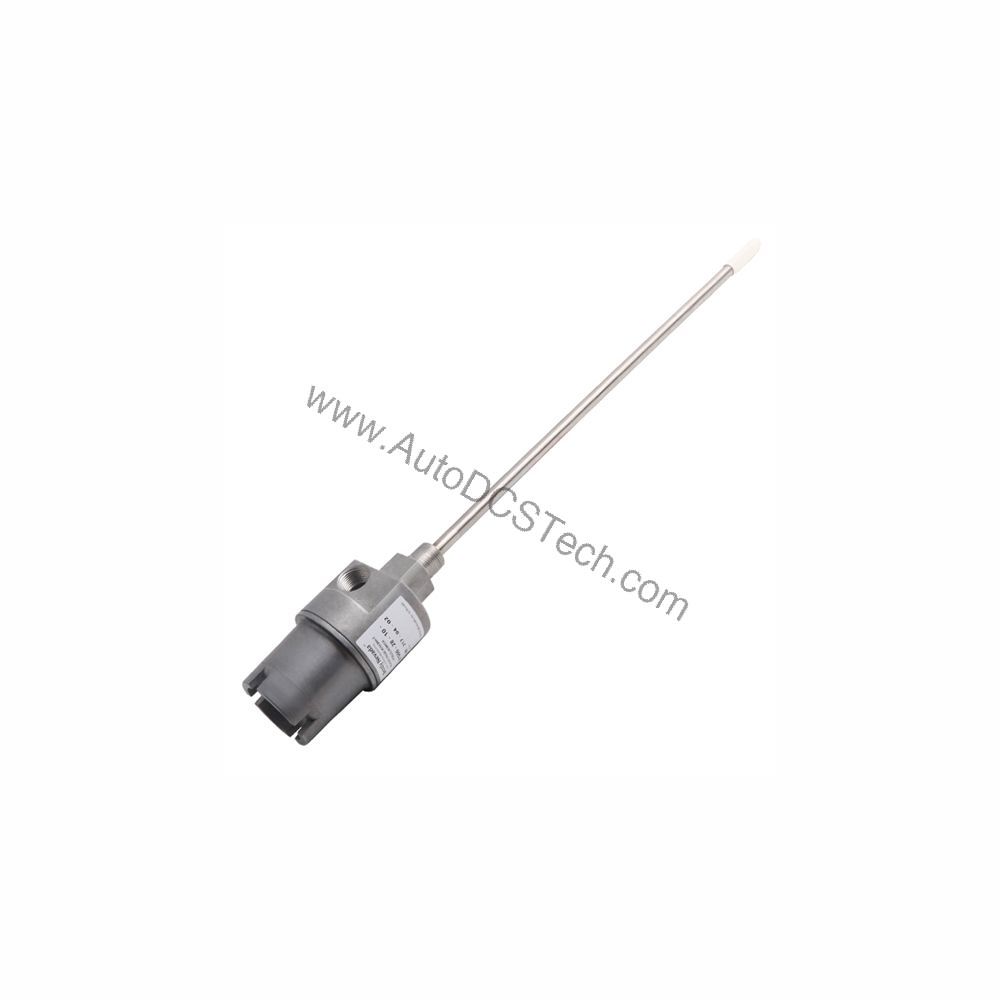

Bently Nevada 21000-34-05-15-039-03-02 Proximity Probe Housing Assembly

Technical Specifications Breakdown

Key parameters for the 21000-34-05-15-039-03-02 are listed below for quick reference:

Industry Applications

This housing assembly is designed for externally mounted proximity probes in hazardous areas. Common applications include:

• Steam Turbine Monitoring: The 21000-34-05-15-039-03-02 mounts on bearing housings to measure shaft vibration and thrust position, helping operators detect early signs of wear.
• Centrifugal Compressor Protection: In oil and gas facilities, the explosion-proof enclosure (CSA Type 4) ensures safe operation in Class I, Division 1 areas.
• Pump Vibration Analysis: The 8 mm probe with 0.5 m cable provides reliable gap voltage signals for predictive maintenance programs.

Installation & Setup Guidance

Proper installation is critical for accurate readings. Follow these steps:

1. Mounting: Use the 3/4-14 NPT mounting thread (required when standoff adapter length is not -00). Ensure the housing is securely fastened to a rigid bracket.
2. Probe Insertion: With a probe penetration of 3.9 in, adjust the standoff adapter (1.5 in) to achieve the recommended gap voltage (typically -9 to -10 Vdc for 3300 XL probes).
3. Cable Routing: Use the provided cable seal grip with grommets (sizes: 1/8 to 3/16 in, 1/4 to 5/16 in, 5/16 to 3/8 in) to maintain environmental sealing.
4. Conduit Connections: The fitting option includes one 3/4-14 NPT plug, one 3/4-14 to 1/2-14 NPT reducer, and the cable seal grip.

Maintenance & Reliability

Inspect the housing assembly periodically for signs of corrosion or mechanical damage. The aluminum body with 304 stainless steel sleeve offers resistance to harsh environments. Verify that O-rings and thread seals remain intact to preserve the CSA Type 4 enclosure rating. No internal disassembly is required for routine checks.

Protecting Critical Rotating Machinery: The Bently Nevada 21000-34-05-15-039-03-02

In industrial environments, unplanned downtime from bearing failures or shaft misalignment can cost thousands per hour. The Bently Nevada 21000-34-05-15-039-03-02 proximity probe housing assembly provides a rugged, explosion-proof solution for continuous vibration and position monitoring of turbines, compressors, and pumps.

Compatibility & Integration

The 21000-34-05-15-039-03-02 is fully compliant with the American Petroleum Institute's (API) 670 Standard for externally mounted proximity probe housings. It works with Bently Nevada 3300 XL 8 mm probes and compatible monitors (e.g., 3500 series). The housing supports both standard and intrinsically safe hazardous area approvals.

Selection Guide & Purchasing Advice

When ordering, verify that the suffix codes match your application requirements. The 21000-34-05-15-039-03-02 includes a 0.5 m probe cable, 1.5 in standoff adapter, and 3.9 in probe penetration. For longer cable lengths or different standoff adapters, consult the full 21000 model ordering options. AutoDCSTech stocks this unit as new and original in factory packing with a 12-month warranty. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
