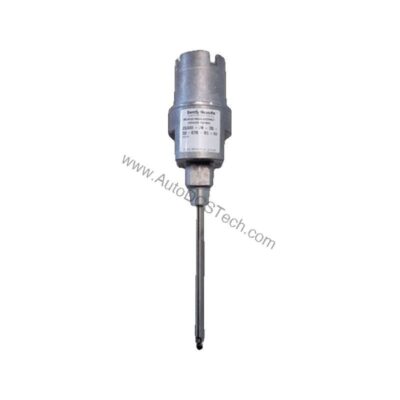

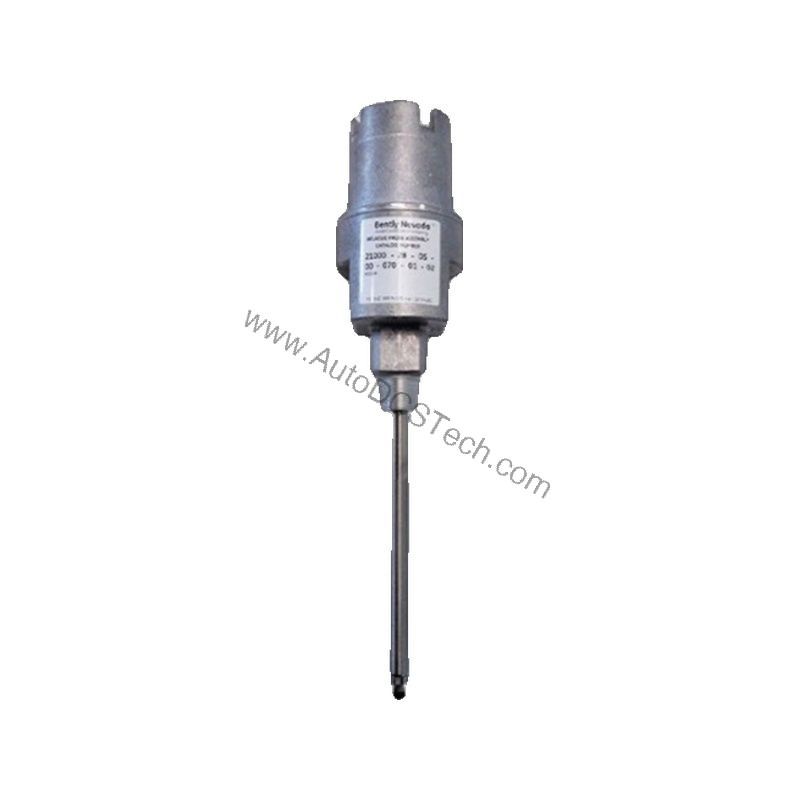

Bently Nevada 21000-34-05-20-018-03-02 Proximity Probe Housing Assembly

Technical Specifications Breakdown

Key parameters for the 21000-34-05-20-018-03-02 are listed below for quick reference:

Industry Applications for the 21000 Housing Assembly

The 21000-34-05-20-018-03-02 configuration, with its 0.5 m cable and 2.0 in standoff adapter, suits installations where the probe must be offset from the machine case. The CSA Type 4 enclosure and explosion-proof rating allow safe use in Class I, Division 1 hazardous areas. By using a certified assembly, you reduce the risk of false trips and unplanned downtime.

Installation and Setup Guidance

Mount the housing using the 3/4-14 NPT thread. Ensure the probe tip is positioned at the correct gap voltage per Bently Nevada guidelines. The cable seal grip accommodates cable diameters from 1/8 to 3/8 inches. Verify that the standoff adapter length and probe penetration match your machine's dimensions. Do not exceed the maximum (C) + (D) dimension of 13.5 in (34.3 cm).

Maintenance and Reliability

Periodically inspect the O-rings and thread seal for wear. Keep the dome cover tightened to maintain the explosion-proof seal. The aluminum body with 304 stainless steel sleeve resists corrosion in harsh environments. For the 3300 XL 8 mm probe, the operating and storage temperature range is -51°C to +177°C (-60°F to +351°F).

Robust Protection for Critical Vibration Monitoring

Industrial rotating machinery demands precise, reliable vibration measurement. The Bently Nevada 21000-34-05-20-018-03-02 proximity probe housing assembly provides a rugged, explosion-proof enclosure for a 3300 XL 8 mm probe, ensuring accurate data in hazardous environments. This assembly is designed for externally mounted probes per API 670 standards.

Compatibility and Integration

The 21000 housing is compatible with Bently Nevada 3300 XL 8 mm proximity probes. It meets API 670 requirements for externally mounted probe housings. The assembly includes a connector protector and selectable hazardous area approvals, simplifying integration into existing safety systems.

Selection Guide and Purchasing Advice

When ordering, verify that the suffix codes match your application: probe option 34 for 8 mm probe, cable length 05 for 0.5 m, standoff adapter 20 for 2.0 in, penetration 018 for 1.8 in, and mounting thread -02 for 3/4-14 NPT. AutoDCSTech stocks this Bently Nevada 21000-34-05-20-018-03-02 as new and original in factory packing with a 12-month warranty. Please verify current lifecycle status and availability before ordering.
