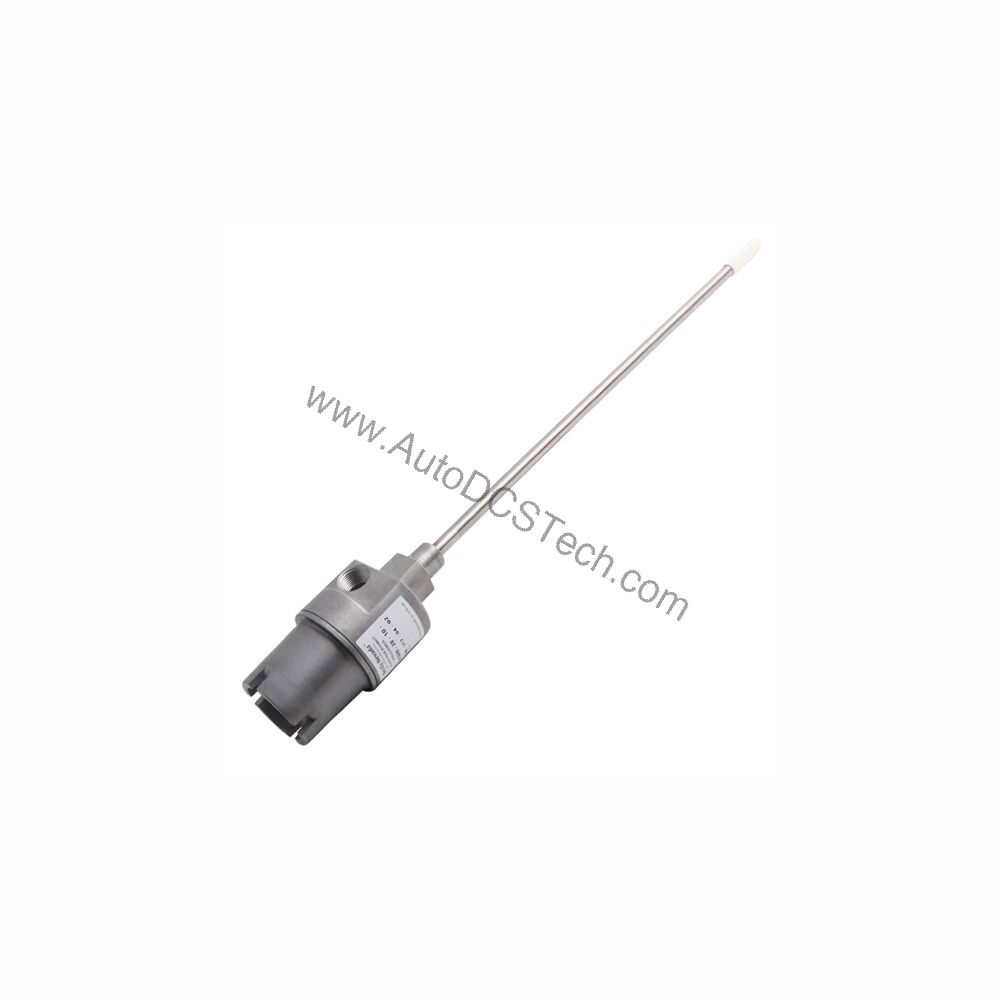

Bently Nevada 21000-34-10-00-030-03-02 Proximity Probe Housing Assembly

Technical Specifications Breakdown

Key parameters for the 21000-34-10-00-030-03-02 are listed below for quick reference:

Industry Applications for the 21000 Housing Assembly

This housing assembly is purpose-built for permanent installation on critical rotating assets. Typical applications include:

• Steam Turbines and Centrifugal Compressors: The 3/4-14 NPT mounting thread and 3.0-inch probe penetration allow direct installation into standard casing ports, providing accurate radial vibration and thrust position measurements.
• Hydrocarbon Processing Pumps: The CSA Type 4 enclosure rating and explosion-proof certification make this assembly suitable for hazardous areas where flammable gases or vapors may be present. The aluminum body with 304 stainless steel sleeve resists corrosion in refinery and chemical plant environments.
• Large Electric Motors and Generators: The 1.0 m probe cable length accommodates typical conduit routing from the housing to junction boxes, simplifying field wiring.

Installation & Setup Guidance

Proper installation is critical for reliable proximity probe performance. Follow these engineer-level guidelines:

• Mounting Thread Preparation: Apply a suitable thread sealant to the 3/4-14 NPT mounting thread before installation to ensure a leak-tight seal. Do not over-torque; use hand-tight plus one turn.
• Probe Penetration Setting: The 3.0-inch probe penetration must be set precisely to achieve the correct gap voltage (typically -9 to -11 Vdc for 3300 XL probes). Use the included standoff adapter (if ordered) or a spacer to adjust the probe tip-to-target distance.
• Cable Seal Grip Assembly: Select the correct grommet for your cable diameter (1/8 to 3/16, 1/4 to 5/16, or 5/16 to 3/8 inches). Insert the cable through the grip, tighten the nut to compress the grommet, and verify a firm seal to prevent moisture ingress.
• Conduit Connection: Use the provided 3/4-14 NPT plug or the reducer (3/4-14 to 1/2-14 NPT) to connect rigid conduit or flexible conduit fittings. Ensure all connections are tight and weatherproof.

Maintenance & Reliability

The 21000 housing assembly is designed for long-term, maintenance-free operation in harsh environments. Periodic inspections should include:

• Visual Check: Examine the dome cover and conduit fittings for signs of corrosion, damage, or loose connections. Replace any damaged O-rings or seals.
• Cable Integrity: Verify that the probe cable is not chafed or pinched at the cable seal grip. Ensure the grommet remains pliable and provides a tight seal.
• Environmental Rating: The assembly is rated CSA Type 4 (watertight and dust-tight). After any maintenance, confirm that all covers and fittings are properly tightened to maintain the enclosure rating.

Robust Protection for Critical Vibration Monitoring

In rotating machinery monitoring, the probe housing is the first line of defense against environmental contamination and mechanical damage. The Bently Nevada 21000-34-10-00-030-03-02 Proximity Probe Housing Assembly provides a rugged, sealed enclosure for a 3300 XL 8 mm probe, ensuring reliable shaft vibration and position measurements in demanding industrial environments. This assembly is engineered to meet API 670 standards for externally mounted proximity probes, making it a trusted choice for compressor, turbine, and pump protection systems.

Compatibility & Integration

This housing assembly is designed specifically for Bently Nevada 3300 XL 8 mm proximity probes. It is fully compatible with Bently Nevada monitoring systems such as 3500, 3300, and 2300 series racks. The assembly meets API 670 standards for externally mounted proximity probe housings, ensuring interchangeability with other API 670-compliant housings.

Selection Guide & Purchasing Advice

When ordering the 21000-34-10-00-030-03-02, verify that the probe penetration (3.0 in) and mounting thread (3/4-14 NPT) match your machine's port dimensions. If a standoff adapter is needed for offset mounting, select the appropriate suffix code. AutoDCSTech stocks this assembly as new and original in factory packing, with a 12-month warranty. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting & Common Issues

• No Probe Output Signal: Check the cable connection at the probe and at the monitor. Verify that the cable seal grip is not crushing the cable. Inspect the probe tip for physical damage.
• Erratic Readings: Ensure the probe tip is clean and free of debris. Confirm that the probe penetration is set correctly and that the target surface is within the probe's linear range.
• Moisture Inside Housing: Inspect the dome cover O-ring and conduit fitting seals. Replace any damaged seals and ensure all fittings are tight.
