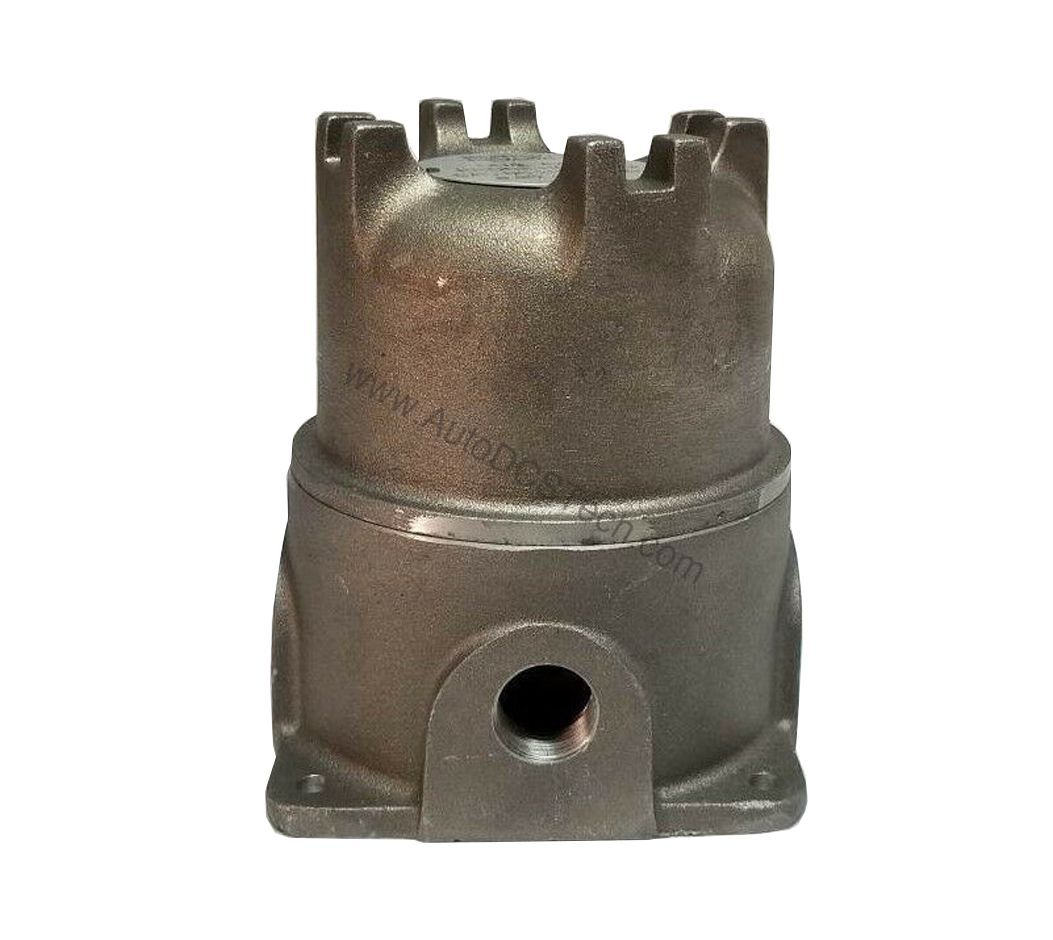

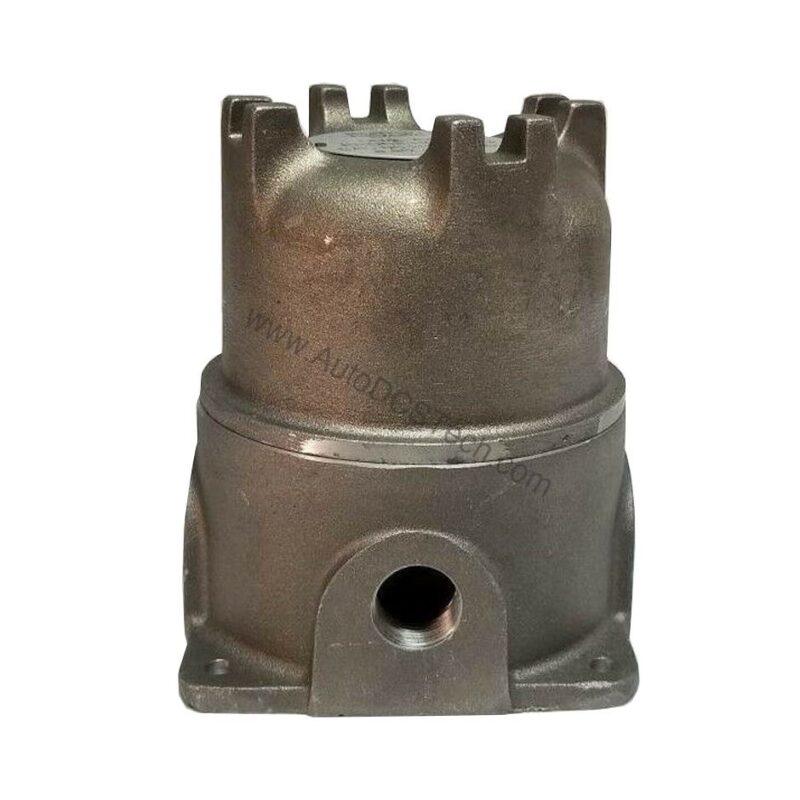

Bently Nevada 21022-12-05-020-04 Dual Axial Probe Housing Assembly

Cost-Effective Axial Position Monitoring with the Bently Nevada 21022-12-05-020-04

For industrial rotating machinery, unplanned downtime due to thrust bearing failure can cost thousands per hour. The Bently Nevada 21022-12-05-020-04 Dual Axial Probe Housing Assembly offers a reliable, externally mounted solution that minimizes installation complexity and maintenance costs while meeting API 670 standards.

Technical Specifications Breakdown

Key parameters for the 21022-12-05-020-04 are listed below for quick reference:

Industry Applications for the Dual Axial Probe Housing

Steam Turbines in Power Generation – The 21022-12-05-020-04 mounts on the machine end near the thrust bearing, allowing both probes to observe shaft axial movement. This early warning system prevents catastrophic thrust bearing damage, reducing repair costs by up to 40% compared to unmonitored operation.

Centrifugal Compressors in Oil & Gas – External mounting permits probe adjustments without opening the machine case, saving labor hours during commissioning. The protective aluminum housing shields probes from dust and splashing liquids, extending sensor life in harsh environments.

Hydroelectric Generators – The dual probe configuration provides redundancy for critical thrust position monitoring. Using the 3300 XL 8 mm probe with 0.5 meter cable ensures consistent gap settings, minimizing false trips and associated production losses.

Installation and Setup Guidance

Mount the enclosure on the machine case using four standard machine screws. The probes install in sleeve/adapter assemblies that fit into two 3/4-in NPT threaded holes on the machine case. The fittings kit (three 3/4-14 NPT plugs) is supplied separately and should be installed after probe positioning. The removable cover provides easy access for setting probe gaps, allowing fine-tuning without disassembly.

Maintenance and Reliability

Periodically inspect the housing for signs of corrosion or physical damage, especially in high-vibration environments. The aluminum alloy (0.3% copper free) resists galvanic corrosion, while the 304 stainless steel sleeves offer durability. Check that the cover seal remains intact to prevent ingress of contaminants. Regular gap verification ensures accurate axial position readings.

Compatibility and Integration

This assembly is designed for use with Bently Nevada 3300 XL 8 mm proximity probes. The 0.5 meter probe cable length is suitable for close-coupled installations. Ensure the monitor system accepts the probe type and cable length for optimal signal integrity.

Selection Guide and Purchasing Advice

When selecting the 21022-12-05-020-04, verify that the probe penetration (2.0 in) matches your machine's thrust bearing clearance. The 0.5 meter cable length is fixed; for longer runs, consider extension cables. Contact AutoDCSTech for lifecycle status and availability before ordering to ensure compatibility with your existing Bently Nevada system.
