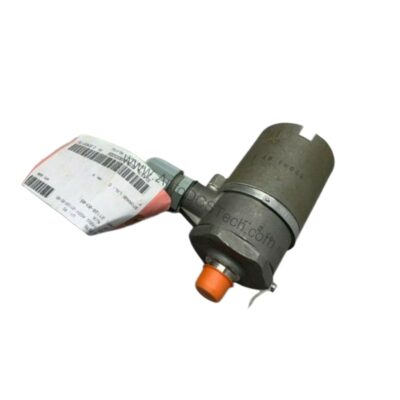

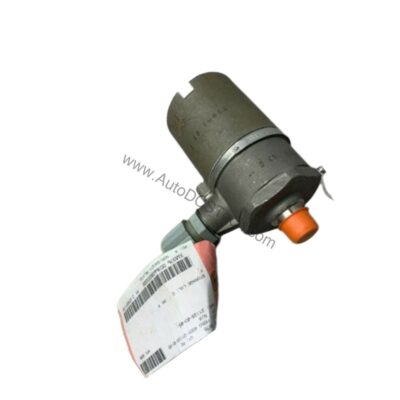

Bently Nevada 21128-04-03 Velocity Transducer Housing NEMA 4X IP65

Technical Specifications Breakdown

Key parameters for the 21128-04-03 are listed below for quick reference:

Application in Rotating Machinery Monitoring

This housing is preferred for non-hazardous environmental conditions where sensors need protection from water jets and corrosive atmospheres. Typical installations include:

• Steam and gas turbines: Protects velocity transducers monitoring bearing vibration in areas with high humidity and occasional steam leaks.
• Compressors and pumps: Shields sensors in washdown zones or near chemical dosing points.
• Paper mills and food processing: Prevents ingress from hose-directed cleaning water while maintaining sensor accuracy.

Installation and Setup Guidance

When using the 21128 housing, cable part number 89477-AA is necessary to connect the Velomitor sensor to a monitor. The tall cap option is required if installing a Velomitor CT, or a 9200 or 74712 Seismoprobe with an isolated base. Ensure the 1/2-in NPT cable exit fitting is properly sealed to maintain the NEMA 4X and IP65 rating. Mounting thread is 1/2-in 14 BSP (G 1/2-in) for this variant.

Maintenance and Reliability

Inspect the neoprene O-ring periodically for cracks or compression set. Verify that the cable gland and mounting threads remain tight to preserve the environmental seal. The 303 stainless steel construction requires no special coating; simply clean with a mild detergent if needed. Avoid submerging the housing.

The Engineering Challenge: Protecting Vibration Sensors in Harsh Environments

In industrial rotating machinery monitoring, velocity transducers are critical for early fault detection. However, these sensors are vulnerable to hose-directed water, corrosive chemicals, and physical impact. Exposed sensors lead to false readings, unplanned downtime, and costly replacements. The Bently Nevada 21128-04-03 velocity transducer housing solves this problem by providing a robust, sealed enclosure that meets NEMA 4X and IP65 standards when properly installed.

Robust Construction for Demanding Conditions

Machined from 303 stainless steel, the 21128-04-03 resists corrosion and physical abuse. Its design incorporates a neoprene O-ring to maintain a moisture-resistant seal. The temperature rating of -29°C to +121°C (-20°F to +250°F) ensures reliable performance across a wide range of industrial environments.

Selection Guide and Purchasing Advice

Choose the 21128-04-03 when you need a 1/2-in BSP mounting thread and a 1/2-in NPT cable exit. For other mounting threads, consider the BA42608 variant. Please verify current lifecycle status and availability with AutoDCSTech before ordering. AutoDCSTech stocks genuine Bently Nevada parts to ensure reliable operation.
