Bently Nevada 21128-12-03 Velocity Transducer Housing, NEMA 4X, IP65

Technical Specifications Breakdown

Key parameters for the 21128-12-03 are listed below for quick reference:

Industry Applications for the 21128-12-03

Turbine and Compressor Monitoring

In power generation and oil & gas facilities, steam turbines and centrifugal compressors operate in areas exposed to wash-down procedures and chemical spills. The 21128-12-03 housing with its NEMA 4X/IP65 rating prevents moisture ingress that could corrupt velocity readings.

Pump and Motor Protection

Pump rooms often combine high humidity with splashing fluids. Using this housing eliminates false alarms caused by sensor corrosion. The 303 stainless steel construction withstands caustic cleaning agents, while the neoprene O-ring maintains a reliable seal across the full -29°C to +121°C range.

Paper and Steel Mills

These environments present physical abuse risks from falling debris and accidental contact. The robust housing absorbs impacts that would otherwise damage the velocity sensor. The 1/2-in NPT cable exit allows secure conduit connections, preventing cable pull-out.

Installation & Setup Guidance

When mounting the 21128-12-03, ensure the internal 1/2-in 20 UNF thread is clean and free of debris. Apply anti-seize compound to the sensor threads to facilitate future removal. The tall cap provides clearance for Velomitor CT sensors or 9200/74712 Seismoprobes with isolated bases. Use cable part number 89477-AA to connect the Velomitor sensor to the monitor. Torque the cable grip fittings to manufacturer specifications to maintain the IP65 seal.

Maintenance & Reliability

Inspect the neoprene O-ring annually for cracks or compression set. Replace if any deformation is visible. Clean the housing exterior with mild detergent and water; avoid abrasive cleaners that could damage the stainless steel surface. Verify that the cable entry fittings remain tight after thermal cycling. The housing is not submersible, so avoid immersion during wash-down.

Robust Protection for Critical Velocity Measurements

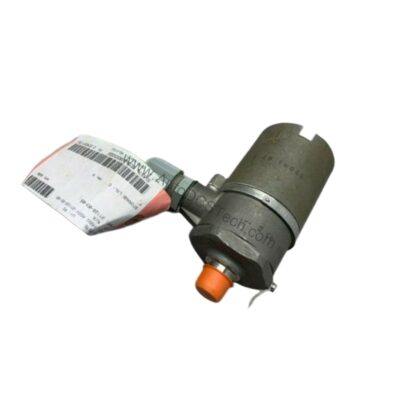

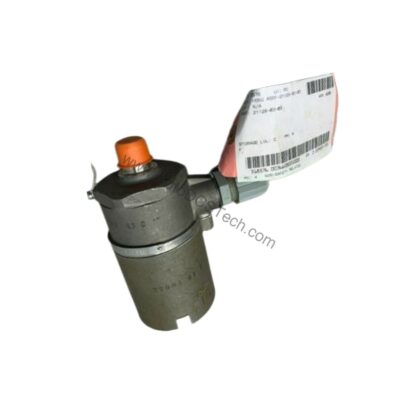

Industrial environments expose vibration sensors to water jets, corrosive chemicals, and physical impacts. The Bently Nevada 21128-12-03 velocity transducer housing provides a rugged 303 stainless steel enclosure that meets NEMA 4X and IP65 requirements when properly installed. This component shields your velocity sensor from hose-directed water, corrosion, and physical abuse, ensuring reliable machinery protection and condition monitoring in non-hazardous areas.

Compatibility & Integration

The 21128-12-03 is designed for non-hazardous environments. For hazardous locations, use the CA21128 explosion-proof version (CSA certified for Classes I, II, III, Division 1, Groups B-G) or the BA42608 BASEEFA-approved housing. All three share the same mounting footprint, simplifying upgrades. The tall cap option is required for Velomitor CT sensors.

Selection Guide & Purchasing Advice

Choose the 21128-12-03 when your application demands NEMA 4X/IP65 protection in a non-hazardous area. The 3/4-in NPT mounting thread with tall cap suits most standard installations. If you need explosion-proof certification, select the CA21128 variant. Contact AutoDCSTech to verify current lifecycle status and availability before ordering. Our inventory includes genuine Bently Nevada housings ready for immediate shipment.

Troubleshooting & Common Issues

If the housing fails to seal after installation, check the O-ring for proper seating and the cable fitting for correct torque. Moisture inside the housing usually indicates an improperly tightened cap or damaged O-ring. For intermittent sensor signals, verify that the internal mounting thread is not cross-threaded and that the sensor is fully seated. Replace the neoprene O-ring if it shows signs of hardening.
