Precision Vibration Monitoring with the Bently Nevada 21500-00-12-10-02

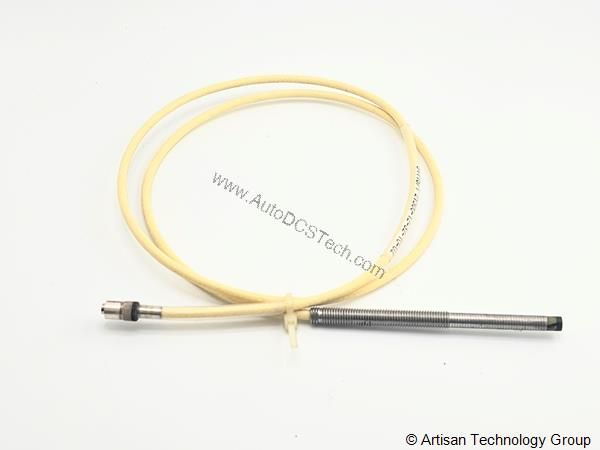

Industrial rotating machinery demands reliable, accurate vibration monitoring to prevent catastrophic failures. The Bently Nevada 21500-00-12-10-02 proximity probe is engineered to deliver consistent performance in harsh environments. This 5 mm diameter probe, part of the 7200 Proximitor system, provides non-contact measurement of shaft vibration and position, enabling early detection of issues like imbalance, misalignment, and bearing wear.
Technical Specifications Breakdown
Key parameters for the 21500-00-12-10-02 are listed below for quick reference:
| Feature | Specification |
|---|---|
| Model | 21504 7200 Proximity Transducer Systems |
| Tip Diameter | 5 mm |
| Threads | 1/4-28 |
| Total Length | 1.0 metre (39 inches) Tolerance: +.25 metre,-.10 metre (+ 10 inches,-4 inches) |
| Connector Option | With miniature male coaxial connector |
| Power | -17.5 Vde to -26 Vdc at 12 mAmaximum consumption |
| Calibrated Range | 80 mils (2.0 mm). Begins at approximately 10 mils (0.25 mm) from probe face |
| Scale Factor | 200 mV/mil (7.87 V/mm), ±4% (measured in increments of 10 mils over the calibrated range) if calibrated as a system, Within ±9.5% including interchangeability errors |
| Frequency Response | 0 to 10 kHz (0 to 600,000 cpm); -5% at 10 kHz (600,000 cpm) |
| Operating Temperature (Proximitor) | -60°F to +212°F (-51°C to +100°C) |
| Operating Temperature (Probe and Extension Cable) | -30°F to +350°F (-34°C to +177°C) |
| System Weight | 1.3 lbs. (0.59 kg) |
Critical Applications in Rotating Machinery
Its 200 mV/mil scale factor and 0 to 10 kHz frequency response capture both low-speed run-up and high-speed vibration events.
Installation and Setup Guidance
Mount the probe using the 1/4-28 threaded case into a standard mounting hole. Ensure the probe face is within the calibrated range of 10 to 80 mils from the target surface. Use the miniature male coaxial connector for a secure, low-noise connection to the extension cable. Verify total length tolerance of +.25 metre, -.10 metre to avoid cable strain.
Maintenance and Reliability
The probe's stainless steel construction resists corrosion from air, water, lube oil, ammonium hydroxide, sulfuric acid (10%), MEK, or DMF, as specified for 8 mm probes. Inspect the cable and connector periodically for damage. Operating temperature limits of -30°F to +350°F for the probe ensure reliable performance in extreme environments.
Compatibility and Integration
This probe is designed for use with Bently Nevada 7200 series Proximitor systems. The 200 mV/mil output is directly compatible with standard vibration monitors and data collectors. For optimal accuracy, calibrate the probe as a system with its Proximitor and cable.
Selection Guide and Purchasing Advice
When selecting a replacement or spare probe, verify the unthreaded length (0 mm), overall case length (1.2 in), and connector option (miniature male coaxial). AutoDCSTech stocks this Bently Nevada 21500-00-12-10-02 as new and original in factory packing, backed by a 12-month warranty. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
Availability & Condition at AutoDCSTech
| Part Number | 21500-00-12-10-02 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
