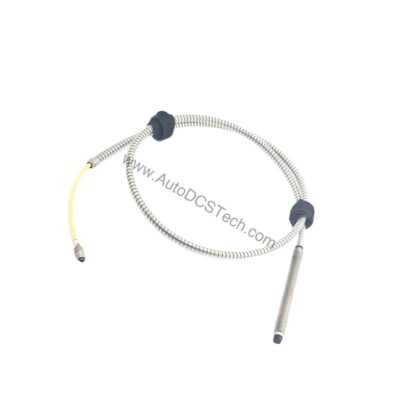

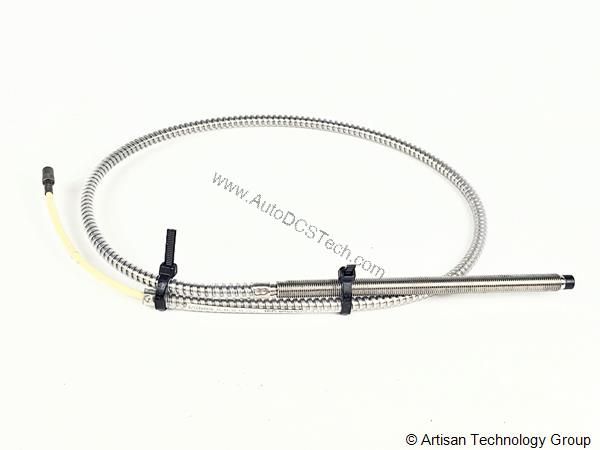

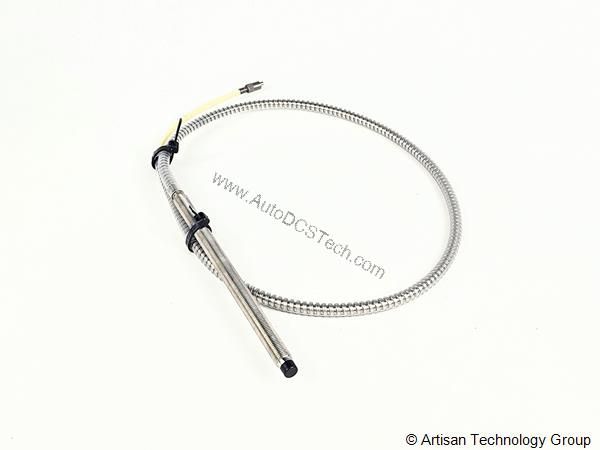

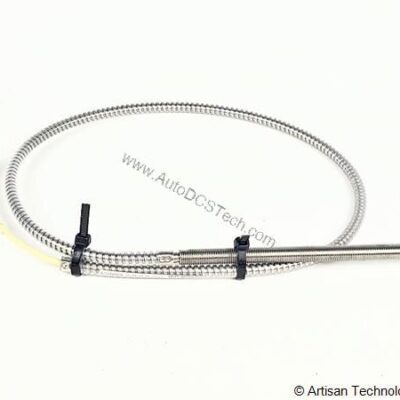

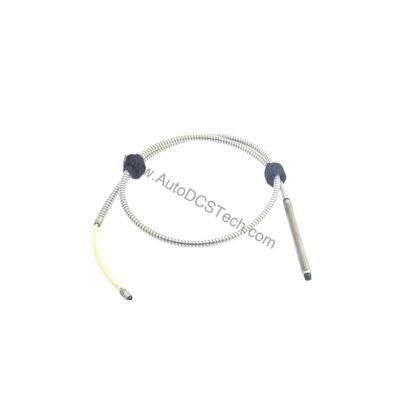

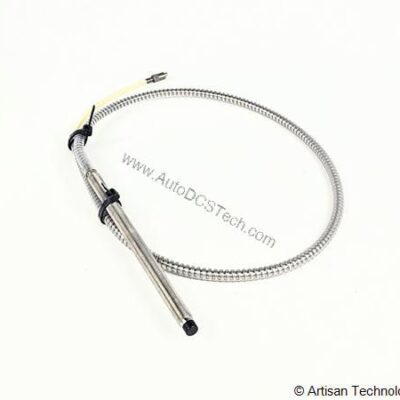

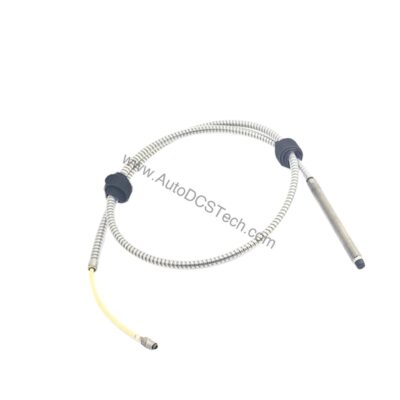

Bently Nevada 21505-00-52-10-02 8 mm Proximity Probe for Vibration Monitoring

Technical Specifications Breakdown

Key parameters for the 21505-00-52-10-02 are listed below for quick reference:

Industry Applications for Reliable Vibration Monitoring

Common applications include:

• Steam and Gas Turbines: Continuous monitoring of radial vibration and thrust position helps avoid blade rubs and bearing failures. The 80 mil range covers typical shaft excursions in large rotating equipment.
• Centrifugal Compressors: In oil and gas facilities, the 200 mV/mil scale factor provides clear signals for early detection of imbalance or misalignment. The stainless steel armor resists harsh process fluids.
• Pumps and Motors: For critical pumps in refineries or water treatment, the probe’s frequency response up to 10 kHz captures high-speed vibrations. The corrosion resistance to water and lube oil ensures long service life.

Installation and Setup Guidance

Proper installation is key to achieving the specified linearity and scale factor. Follow these guidelines:

• Mounting: Use the 3/8-24 threaded configuration to secure the probe in a rigid bracket or housing. Ensure the probe face is clean and free of debris before installation.
• Gap Setting: The calibrated range begins at approximately 10 mils (0.25 mm) from the probe face. Use a non-magnetic feeler gauge or the system’s voltage readout to set the initial gap within the linear range.
• Cable Routing: The 1.0 m cable with miniature male coaxial connector must be routed away from high-voltage lines and sharp edges. The stainless steel armor protects against abrasion in industrial environments.
• System Calibration: For best accuracy (±4% scale factor), calibrate the probe with its matching Proximitor and extension cable as a system. If components are swapped, expect interchangeability errors up to ±9.5%.

Maintenance and Reliability

To maintain reliable performance over time:

• Inspect the probe face periodically for buildup of conductive contaminants. Clean with a soft cloth and isopropyl alcohol if needed.
• Check cable integrity at every turnaround. Look for cuts or kinks in the armor that could expose the inner conductor.
• Monitor temperature exposure: The probe and extension cable are rated for -30°F to +350°F (-34°C to +177°C). Ensure the installation location stays within these limits.
• Verify system calibration annually or after any component replacement. Use a calibrated shaft simulator to confirm linearity and scale factor.

Compatibility and Integration

The 21505-00-52-10-02 is designed for use with Bently Nevada 7200 series Proximitor and extension cables. The miniature male coaxial connector mates directly with standard Bently Nevada cables. The probe operates with -17.5 Vde to -26 Vdc power, compatible with most Bently Nevada monitoring systems. For integration into existing networks, the probe’s 200 mV/mil output interfaces with vibration monitors, data collectors, and distributed control systems (DCS).

Selection Guide and Purchasing Advice

When selecting a proximity probe for your rotating machinery, consider the shaft diameter, required range, and environmental conditions. At AutoDCSTech, we stock this model as new and original in factory packing, backed by a 12-month warranty. Before ordering, verify that the total length (1.0 m) and connector type (miniature male coaxial) match your system requirements. Please confirm current lifecycle status and availability with AutoDCSTech, as product lifecycles can change.
