Bently Nevada 21508-02-12-10-02 8 mm Proximity Probe Vibration Transducer

Failure Mode Analysis & Prevention: The Bently Nevada 21508-02-12-10-02 in Rotating Machinery Protection

Unplanned downtime from bearing or shaft vibration can cascade into catastrophic equipment failure. The Bently Nevada 21508-02-12-10-02 8 mm proximity probe is engineered to detect early signs of rotor instability, misalignment, and imbalance before they escalate. This article evaluates the transducer as a critical component in your predictive maintenance strategy.

Product Overview

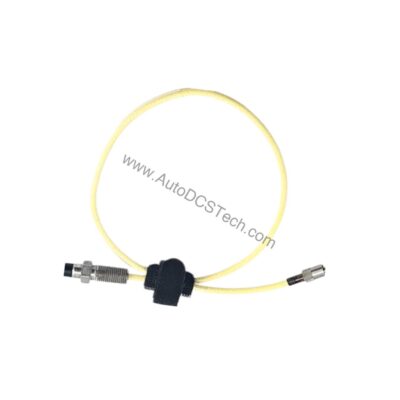

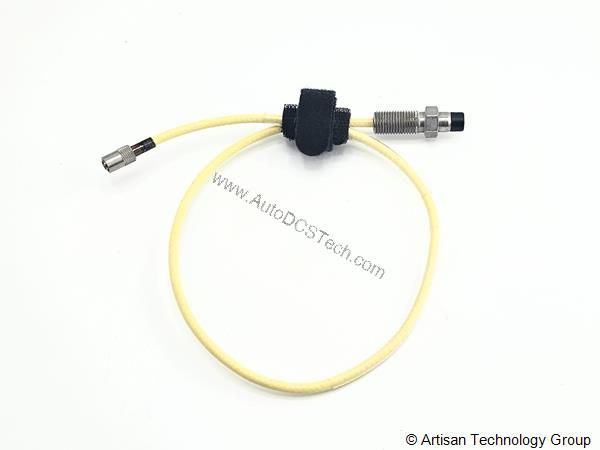

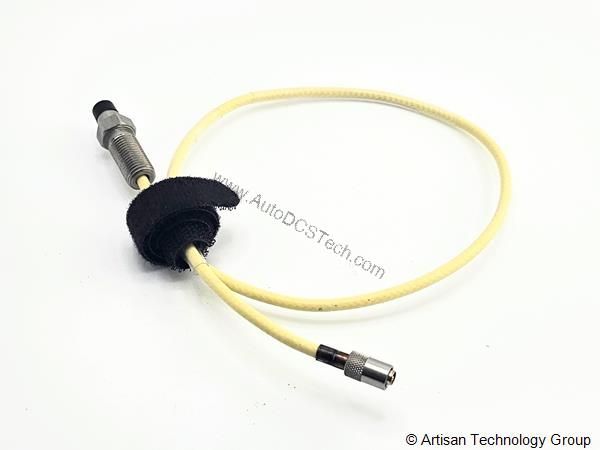

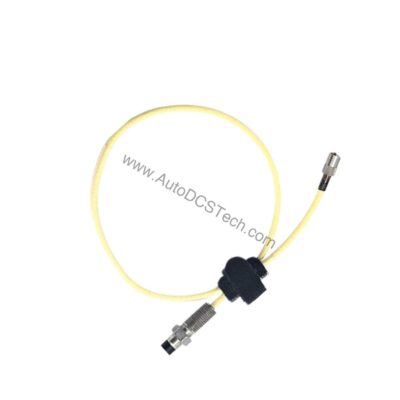

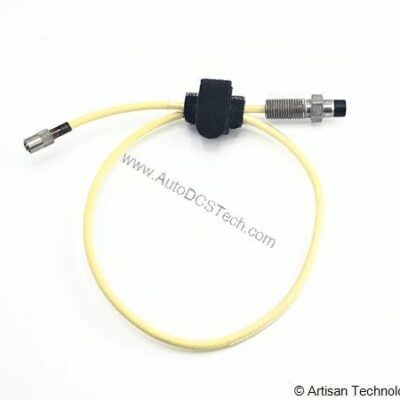

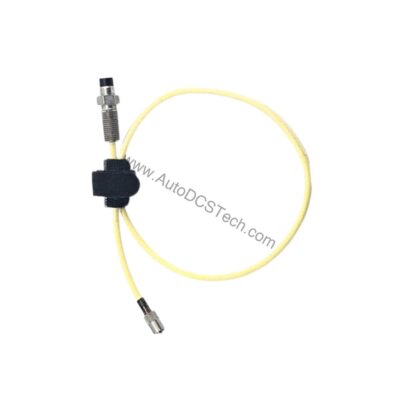

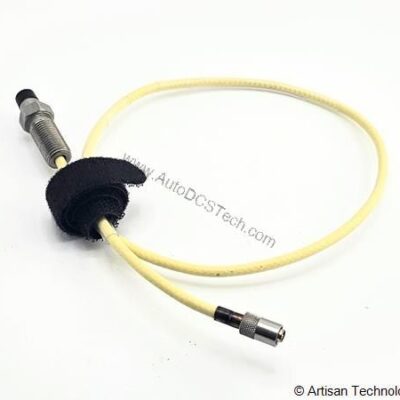

The 21508-02-12-10-02 is part of the Bently Nevada 7200 Proximity Transducer Systems series. It is an 8 mm diameter, reverse mount proximity probe designed for non-contact vibration and position measurement on rotating machinery such as turbines, compressors, and pumps. The probe features a 3/8-24 thread, no lead armor, and a total length of 1.0 metre (39 inches) with a miniature male coaxial connector (option 02). This configuration allows direct connection to compatible proximitor modules for continuous monitoring.

Technical Specifications Breakdown

Key parameters for the 21508-02-12-10-02 are listed below for quick reference:

Industry Applications

This probe is widely deployed in the oil and gas, power generation, and petrochemical sectors. For example, on a steam turbine train, the 21508-02-12-10-02 mounts into a bearing housing to measure shaft relative vibration. Its 80 mil (2.0 mm) calibrated range covers typical vibration amplitudes in large rotating equipment. The reverse mount configuration allows installation in confined spaces where standard probes cannot fit. By catching abnormal vibration patterns early, operators can schedule repairs during planned outages rather than face emergency shutdowns.

Installation & Setup Guidance

Proper installation begins with verifying the probe gap. The calibrated range starts at approximately 10 mils (0.25 mm) from the probe face. Use a non-conductive feeler gauge or a micrometer to set the initial gap within the linear region. The 3/8-24 thread requires a compatible mounting boss or bracket; ensure the probe tip is perpendicular to the target surface within ±1 degree. The miniature coaxial connector must be securely mated to the extension cable, and the cable should be routed away from high‑frequency noise sources. Always confirm power supply is within -17.5 Vdc to -26 Vdc at 12 mA maximum before energizing the system.

Maintenance & Reliability

For continuous duty, inspect the probe face and cable periodically for contamination or mechanical damage. The 8 mm probe is resistant to air, water, lube oil, ammonium hydroxide, 10% sulfuric acid, MEK, and DMF, making it suitable for harsh environments. The system operates reliably in relative humidity up to 95% (non‑condensing). No field calibration is required if the probe is used as part of a factory‑calibrated system; however, verify scale factor (±4% system) annually using a known displacement standard.

Compatibility & Integration

The 21508-02-12-10-02 integrates directly with Bently Nevada 7200 series proximitors and monitoring systems. The 200 mV/mil output is standard for most Bently Nevada vibration monitors. The miniature coaxial connector (option 02) mates with compatible extension cables and proximitor inputs. Ensure the total cable length (probe + extension) does not exceed the proximitor’s specified limit — typically 305 metres (1000 feet) for 7200 systems.

Selection Guide & Purchasing Advice

When selecting a replacement or spare probe, verify the thread size (3/8-24), tip diameter (8 mm), and total length (1.0 m) match your existing installation. AutoDCSTech stocks the Bently Nevada 21508-02-12-10-02 as new and original in factory packing, backed by a 12‑month warranty. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting & Common Issues

If the output signal is erratic or out of range, first check the coaxial connector for corrosion or looseness. Measure the DC gap voltage at the proximitor: a gap outside 10 to 90 mils (0.25 to 2.29 mm) indicates improper installation or target runout. Verify the power supply is stable at -24 Vdc ±10%. If scale factor deviates beyond ±9.5% (including interchangeability), the probe or cable may be damaged. Replace the probe if the tip shows visible wear or if continuity fails between the center conductor and shield.
