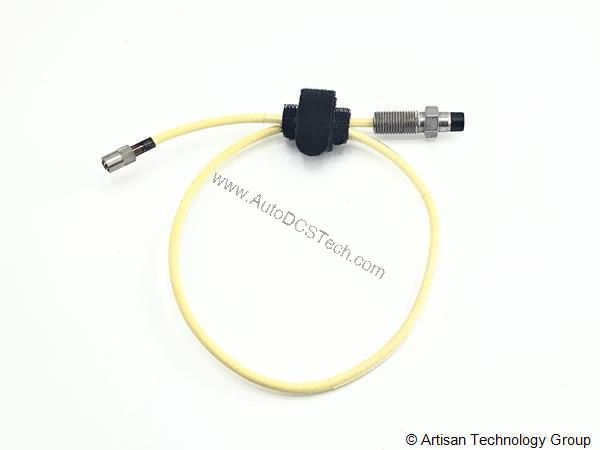

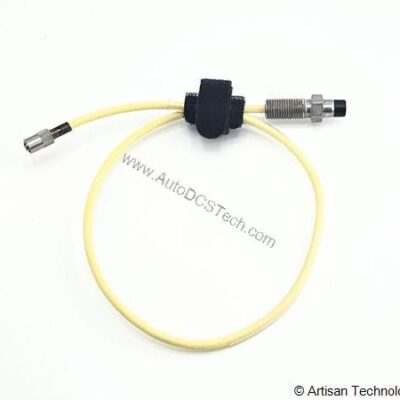

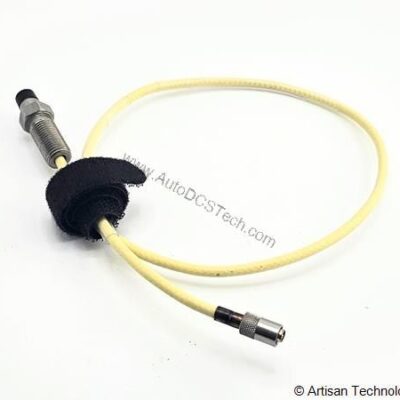

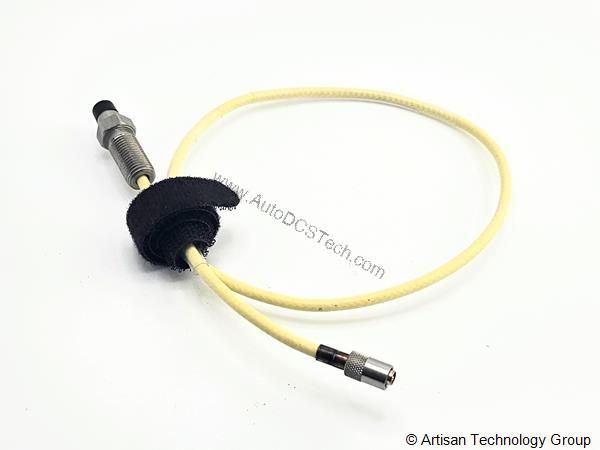

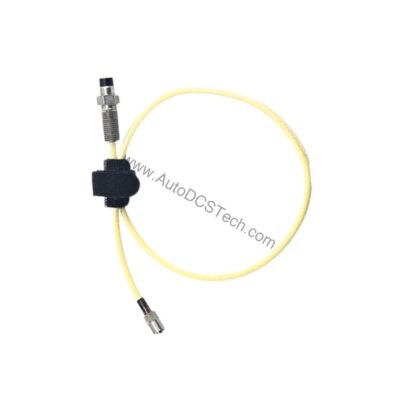

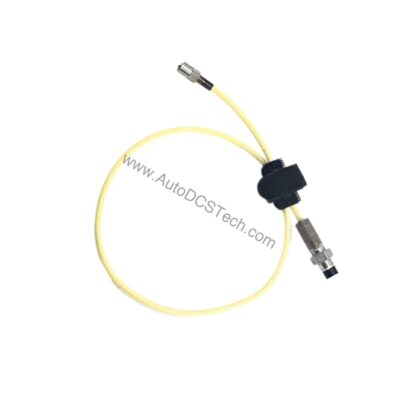

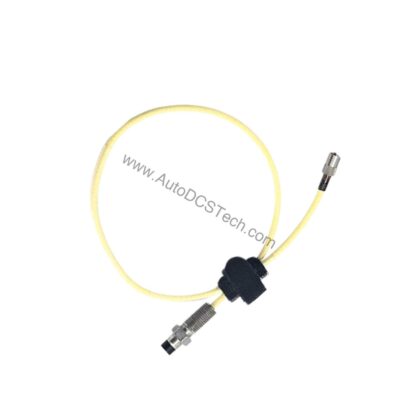

Bently Nevada 21508-02-12-90-02 8 mm Proximity Probe Vibration Sensor

Technical Specifications Breakdown

Key parameters for the 21508-02-12-90-02 are listed below for quick reference:

Engineering Applications: Preventing Failure Before It Starts

Turbomachinery Shaft Vibration Monitoring

Rotating equipment such as steam turbines, compressors, and pumps generate vibration signatures that indicate bearing wear, imbalance, or misalignment. The 21508-02-12-90-02, with its 8 mm diameter and reverse tip configuration, mounts directly into bearing housings using 3/8-24 threads. Its 200 mV/mil scale factor and 0 to 10 kHz frequency response capture both slow-speed and high-speed events up to 600,000 cpm, enabling early detection of developing faults.

Harsh Environment Compatibility

In refineries and chemical plants, sensors face corrosive atmospheres. This probe is tested for direct contact with air, water, lube oil, ammonium hydroxide, 10% sulfuric acid, MEK, and DMF. The wide operating temperature range for the probe and cable (-34°C to +177°C) ensures reliable performance near hot steam seals or cryogenic processes.

Installation Guidance for Optimal Accuracy

Proper gap setting is critical. The calibrated range begins at approximately 0.25 mm from the probe face and extends to 2.0 mm. When installing, use a nonferrous feeler gauge to set the initial gap within the linear region. The 9-metre cable with miniature male coaxial connector must be routed away from high-EMI sources and secured to prevent vibration fatigue. For system calibration, pair this probe with a compatible Bently Nevada Proximitor to achieve ±4% scale factor accuracy.

Maintenance and Reliability Considerations

The probe and extension cable are sealed against humidity up to 95% noncondensing. No routine maintenance is required on the sensor itself, but periodic inspection of the cable jacket and connector for cuts or corrosion is recommended. The Proximitor electronics should be checked annually for drift. If the system includes interchangeability errors, note that the overall accuracy remains within ±9.5% without individual calibration.

Reliable Vibration Monitoring for Critical Machinery

Unplanned downtime due to undetected shaft vibration can lead to catastrophic equipment failure and costly production losses. The Bently Nevada 21508-02-12-90-02 is an 8 mm proximity probe engineered to deliver precise, continuous vibration and position measurements in the most demanding industrial environments. As part of the proven 7200 Proximity Transducer System, this sensor provides the real-time data needed for predictive maintenance and asset protection.

Compatibility and Integration

The 21508-02-12-90-02 is designed for the Bently Nevada 7200 Proximity Transducer System. It operates with a -17.5 Vdc to -26 Vdc power supply at 12 mA maximum. The reverse tip configuration and 3/8-24 threads are standard for many Bently Nevada mounting hardware kits. Always verify that the Proximitor model matches the probe cable length and connector type.

Selection Guide and Purchasing Advice

When selecting a replacement or spare probe, confirm the thread size (3/8-24), cable length (9 metres), and connector option (miniature male coaxial). The 21508-02-12-90-02 is supplied new and in original factory packing. AutoDCSTech stocks this exact configuration with a 12-month factory warranty. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting Common Issues

If the output signal is erratic or out of range, first check the power supply voltage at the Proximitor terminals — it must be between -17.5 Vdc and -26 Vdc. Inspect the coaxial connector for bent pins or moisture ingress. Verify that the probe tip is not contacting the shaft (gap should be within 0.25 mm to 2.0 mm). If scale factor readings drift, confirm that ambient temperature at the probe face does not exceed +177°C. For linearity errors beyond 0.8 mils, recalibrate the system as a matched set.
