Technical Specifications Breakdown

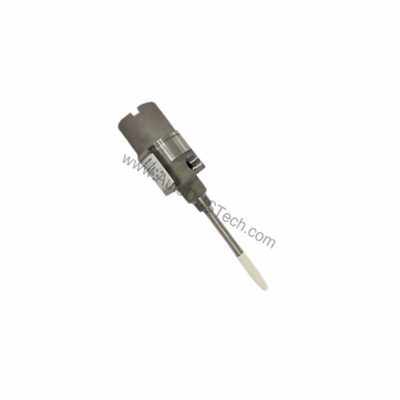

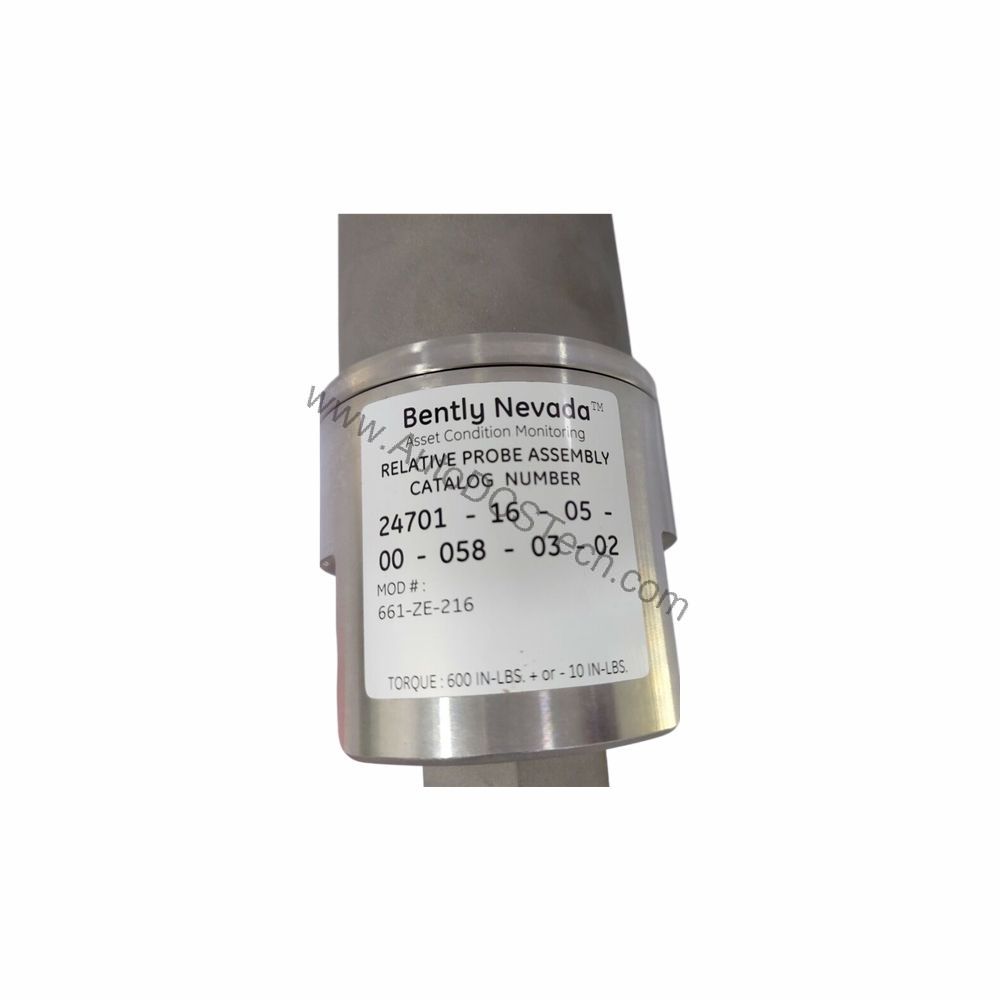

Key parameters for the 24701-16-10-00-037-03-02 are listed below for quick reference:
| Feature | Specification |
|---|---|
| Model | 24701 - Proximity Probe Housing Assemblies |
| Probe Option | 16 = 3300 XL 8mm probe |
| Probe Cable Length | 10 = 39 in (1.0 m) |
| Standoff Adapter | No standoff adapter (00) |
| Probe Penetration | 037 - 3.7 in |
| Fittings Option | 03 (One 3/4-14 NPT plug, one 3/4-14 to 1/2-14 NPT reducer, one cable seal grip with grommets for 1/8 to 3/16 inches, 1/4 to 5/16 inches, 5/16 to 3/8 inches cable sizes) |
| Mounting Thread Option | 02 - 3/4-14 NPT |
| Material | 303 stainless steel body, with 304 stainless steel sleeve |
| Weight (typical, without fittings) | 1.8 kg (4.1 lb) |
| Maximum (C) + (D) with visible probe (P/N and S/N) | 17.0 in (43.18 mm) |
| Maximum (C) + (D) Dimension | 29.2 in (74.2 mm) |
Industry Applications for Reliable Vibration Monitoring
This proximity probe housing assembly is designed for continuous monitoring of shaft vibration and position in turbomachinery such as steam turbines, compressors, and pumps. The 3300 XL 8mm probe provides high-resolution measurement, while the stainless steel construction (303 body, 304 sleeve) resists corrosion in demanding environments. The 3/4-14 NPT mounting thread ensures secure installation in standard bearing housings.
Installation and Setup Guidance
Proper installation is critical for accurate readings. Mount the assembly using the 3/4-14 NPT thread into the machine case. The probe penetration of 3.7 in (037 option) must be set according to the manufacturer's gap voltage specification. Use the provided fittings: the 3/4-14 NPT plug, reducer, and cable seal grip with appropriate grommets for cable sizes 1/8 to 3/16 inches, 1/4 to 5/16 inches, or 5/16 to 3/8 inches. Ensure the probe cable length of 1.0 m is routed without sharp bends.
Maintenance and Reliability
Inspect the housing and cable seal grip periodically for signs of wear or contamination. The stainless steel materials provide durability, but environmental factors such as moisture or chemical exposure should be monitored. Replace O-rings if leakage is suspected. For safety-rated equipment, always follow general inspection practices and consult the manufacturer's documentation.
Compatibility and Integration
This assembly is designed for use with Bently Nevada monitoring systems that accept 3300 XL 8mm proximity probes. The 3/4-14 NPT mounting thread is a common standard for industrial machine cases. The integrated cable seal grip accommodates various cable diameters, simplifying installation in existing conduit systems.
Selection Guide and Purchasing Advice
When selecting a proximity probe housing assembly, confirm that the probe option, cable length, penetration, and mounting thread match your machine's requirements. The 24701-16-10-00-037-03-02 is a new original factory-packed unit with a 12-month warranty from AutoDCSTech. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
Availability & Condition at AutoDCSTech
| Part Number | 24701-16-10-00-037-03-02 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
Datasheet & Downloads
Specification sheet for 24701-16-10-00-037-03-02. For lead time, condition and price, contact our team.
