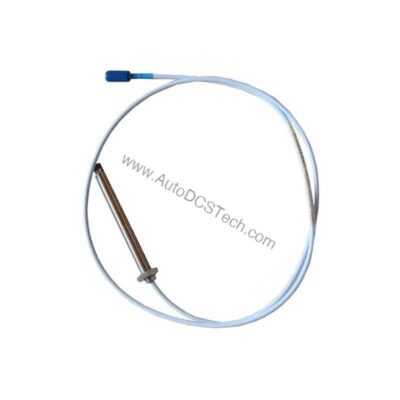

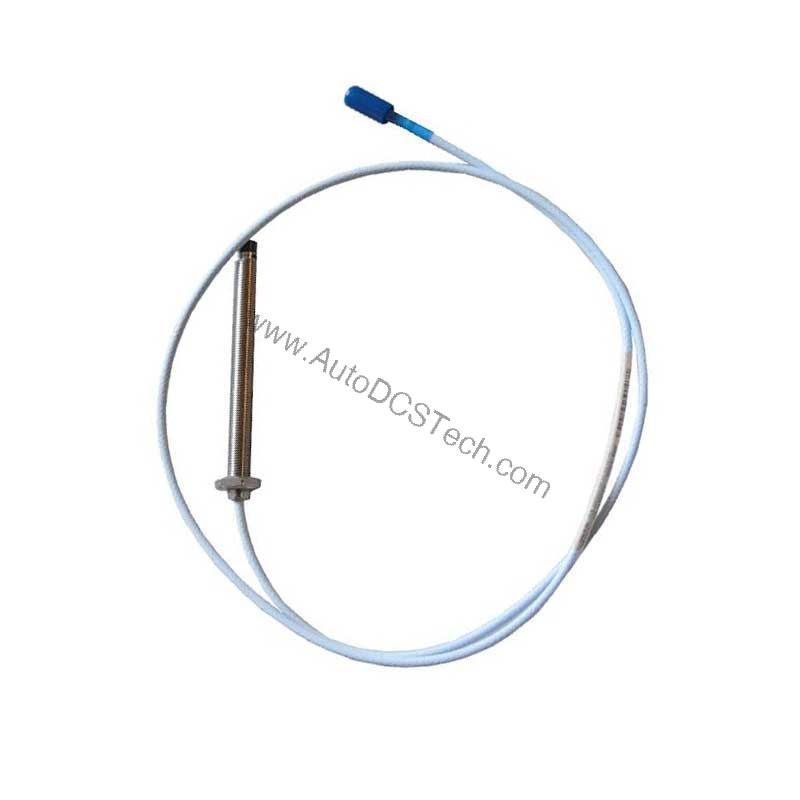

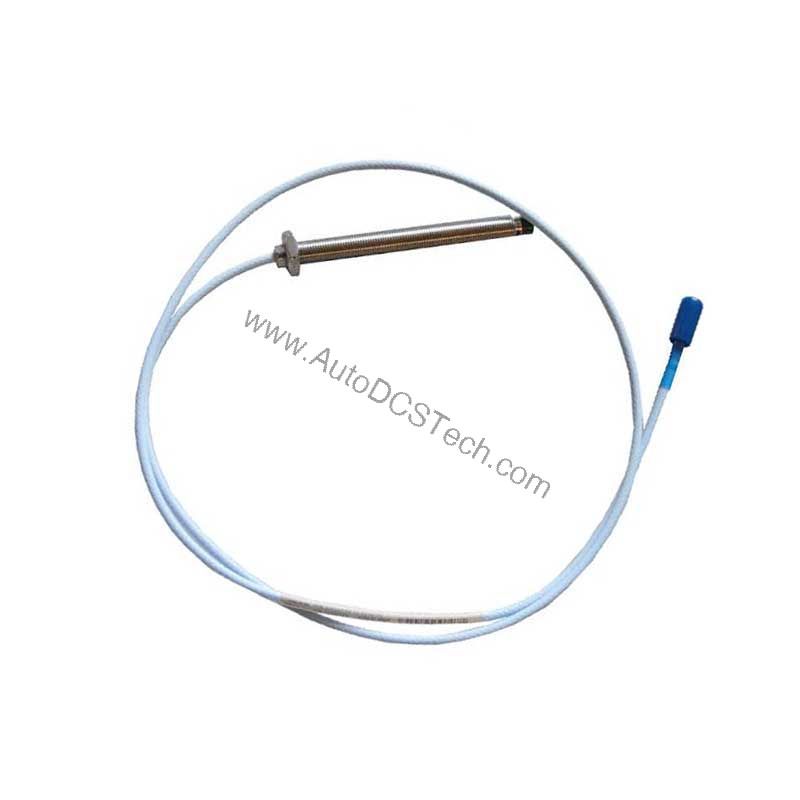

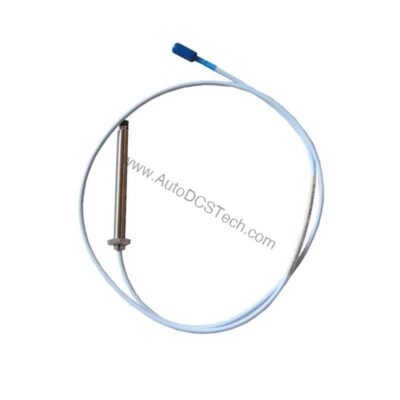

Bently Nevada 300103-00-05-10-02-00 3300 XL 8 mm Proximity Probe

Technical Specifications Breakdown

Key parameters for the 300103-00-05-10-02-00 are listed below for quick reference:

Industry Applications for Cost Savings

Turbine and Compressor Monitoring

In steam turbines and centrifugal compressors, the 3300 XL probe continuously measures shaft vibration. Early detection of imbalance or misalignment prevents costly rotor damage and extends overhaul intervals, directly improving operational ROI.

Pump and Motor Protection

For large pumps and electric motors, the probe's 2 mm linear range covers typical vibration amplitudes. By integrating with a Bently Nevada monitoring system, you can schedule maintenance based on actual condition rather than fixed schedules, reducing spare parts inventory and labor costs.

Installation Guidance for Optimal Performance

When installing the probe, ensure the M10 x 1 thread engages with a maximum thread engagement of 15 mm. Use field wiring of 0.2 to 1.5 mm² (16 to 24 AWG) with a 3-conductor shielded triad cable. The maximum length between the 3300 XL Proximitor Sensor and the monitor is 305 meters (1,000 feet). For high-frequency applications, refer to frequency response graphs to account for signal roll-off. Proper gap setting at -9 Vdc ensures the probe operates within its linear range, maximizing measurement accuracy and reducing false alarms.

Maintenance and Reliability

The probe's PPS tip and stainless steel case resist harsh environments. Operating temperature range from -52°C to +177°C (-62°F to +350°F) suits most industrial settings. Exposing the probe to temperatures below -34°C (-30°F) may cause premature failure of the pressure seal, so avoid such conditions. Relative humidity below 3% change in Average Scale Factor (ASF) when tested per IEC 68-2-3 for up to 56 days ensures stable performance. Regular inspection of the cable and connector for wear helps maintain signal integrity.

Cost-Efficient Vibration Monitoring with the Bently Nevada 3300 XL Probe

In rotating machinery maintenance, unplanned downtime is a major cost driver. The Bently Nevada 300103-00-05-10-02-00 3300 XL 8 mm Proximity Probe delivers reliable shaft vibration and position data, helping you avoid catastrophic failures and reduce repair expenses. This probe is engineered for demanding environments, offering a linear range of 2 mm (80 mils) that begins at approximately 0.25 mm (10 mils) from the target, extending to 2.3 mm (90 mils). The recommended gap setting for radial vibration is -9 Vdc, approximately 1.27 mm (50 mils), ensuring accurate readings from the start.

Compatibility and Integration

This probe is designed for use with Bently Nevada 3300 XL Proximitor Sensors and monitoring systems. When installed with intrinsically safe zener barriers per drawing 141092 or galvanic isolators, it meets Class I, Zone 0: AEx/Ex ia IIC T5...T1 Ga; Class 1, Groups A, B, C, and D; Class II, Groups E, F, and G; Class III. For non-incendive circuits per drawing 140979, it meets Class I, Zone 2: AEx/Ex nA IIC T5…T1 Gc; Class 1, Division 2, Groups A, B, C, D; and AEx/Ex ec IIC T5…T1 Gc. Verify your system compatibility before ordering.

Selection Guide and Purchasing Advice

When selecting a replacement probe, confirm the total length, connector type, and agency approval match your requirements. The 300103-00-05-10-02-00 includes a 1.0 meter cable with miniature coaxial ClickLoc connector and no agency approval option. For cost-effective procurement, contact AutoDCSTech to verify current lifecycle status and availability. Our team can help you choose the right configuration to minimize downtime and total cost of ownership.
