Bently Nevada 31000-16-10-00-122-00-05 Proximity Probe Housing for 3300 XL 8 mm Probe

Technical Specifications Breakdown

Key parameters for the 31000-16-10-00-122-00-05 are listed below for quick reference:

Industry Applications

• Oil & Gas: In refineries and pipelines, the housing protects probes monitoring compressor and pump vibration, where exposure to moisture and corrosive atmospheres is common.
• Power Generation: Steam and gas turbines in power plants benefit from the housing's ability to maintain seal integrity under temperature extremes and high humidity.
• Pulp & Paper: Harsh washdown environments and chemical exposure are no match for the Type 4X and IP66 rated enclosure.

Installation Guidance

Mount the housing using the 7/8-14 UNF 2A thread. The recommended torque for the retaining nut is 29.4 N·m (260 in·lb). Ensure the O-ring is properly seated to maintain the IP66 seal. The probe cable length of 1.0 m (39 in) should be routed without sharp bends to avoid signal degradation.

Maintenance & Reliability

Periodically inspect the housing for cracks or damage, especially after high-impact events. Verify that the O-ring remains pliable and free of debris. The stainless steel sleeve and retaining chain resist corrosion, but regular cleaning of the exterior is recommended in dirty environments.

Robust Protection for Critical Vibration Monitoring

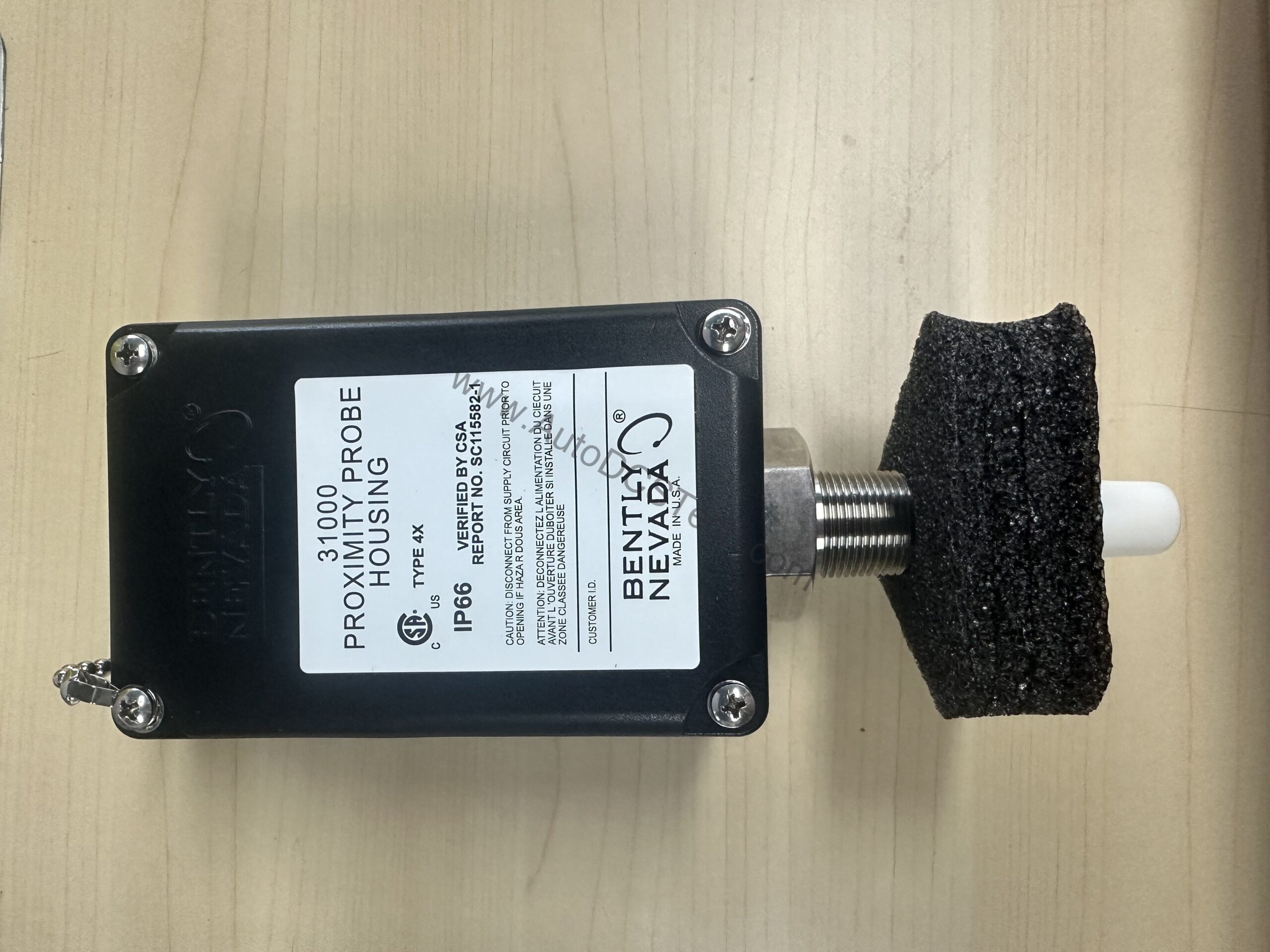

Industrial rotating machinery demands precise and reliable vibration monitoring. The Bently Nevada 31000-16-10-00-122-00-05 provides a rugged, sealed enclosure for the 3300 XL 8 mm proximity probe, ensuring accurate measurements even in the most challenging conditions. This housing is engineered to protect the probe from moisture, dust, and physical impact, extending sensor life and reducing unplanned downtime.

Engineered for Harsh Environments

This housing is built to withstand extreme conditions. The glass-reinforced PPS thermoplastic with conductive fibers provides electrostatic dissipation, certified to CENELEC standard EN50014 for hazardous areas. The Type 4X and IP66 ratings ensure protection against water ingress and corrosion, making it suitable for outdoor and washdown applications. The housing impact strength is certified by BASEEFA to withstand two separate 4 Joule impacts at -39°C and at 115°C, and CSA verified 7 Joule impact at ambient temperature.

Compatibility & Integration

This housing is designed specifically for the Bently Nevada 3300 XL 8 mm proximity probe system.

Selection Guide & Purchasing Advice

When ordering, ensure the part number 31000-16-10-00-122-00-05 matches your probe configuration. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
