Technical Specifications Breakdown
Key parameters for the 330101-00-35-20-02-CN are listed below for quick reference:
| Feature | Specification |
|---|---|
| Product Type | 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor |
| Unthreaded Length Option | 00 - 0.0 in |
| Overall Case Length Option | 35 - 3.5 in |
| Total Length Option | 20 - 2.0 meters (6.6 feet) |
| Connector and Cable-Type Option | 02 - Miniature coaxial ClickLoc connector, standard cable |
| Country Specific Approval | CN |
| Nominal Probe DC Resistance (2.0 m) | 7.88 ± 0.50 Ω |
| Linear Range | 2 mm (80 mils) |
| Incremental Scale Factor (Standard 5 or 1 meter System) | 7.87 V/mm (200 mV/mil) ± 5% |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel (SST) |
| Standard Probe Temperature Range | -52°C to +177°C (-62°F to +350°F) |
Industry Applications for the 3300 XL Probe
The 2 mm linear range and 7.87 V/mm scale factor provide high-resolution data for early fault detection. The robust PPS tip and stainless steel case withstand oil, moisture, and temperature extremes common in power generation and petrochemical plants.
Installation and Setup Guidance
When installing the 330101-00-35-20-02-CN, ensure the probe tip is clean and the target surface is smooth and free of coatings. Use the recommended gap setting of -9 Vdc (approximately 1.27 mm or 50 mils) for radial vibration measurements. Field wiring should use 0.2 to 1.5 mm² (16 to 24 AWG) three-conductor shielded triad cable, with a maximum length of 305 meters (1,000 feet) between the Proximitor sensor and the monitor. The miniature coaxial ClickLoc connector simplifies cable attachment and ensures reliable signal transmission.
Maintenance and Reliability
The 3300 XL probe incorporates patented TipLoc and CableLoc designs for enhanced mechanical integrity. The CableLoc feature provides 330 N (75 lbf) pull strength, reducing the risk of cable detachment. For extended temperature applications, the probe tip can operate up to +218°C (+425°F) with the ETR option. Regular inspection of the connector and cable for damage is recommended, especially in high-vibration environments.
Robust Vibration Sensing with the Bently Nevada 330101-00-35-20-02-CN

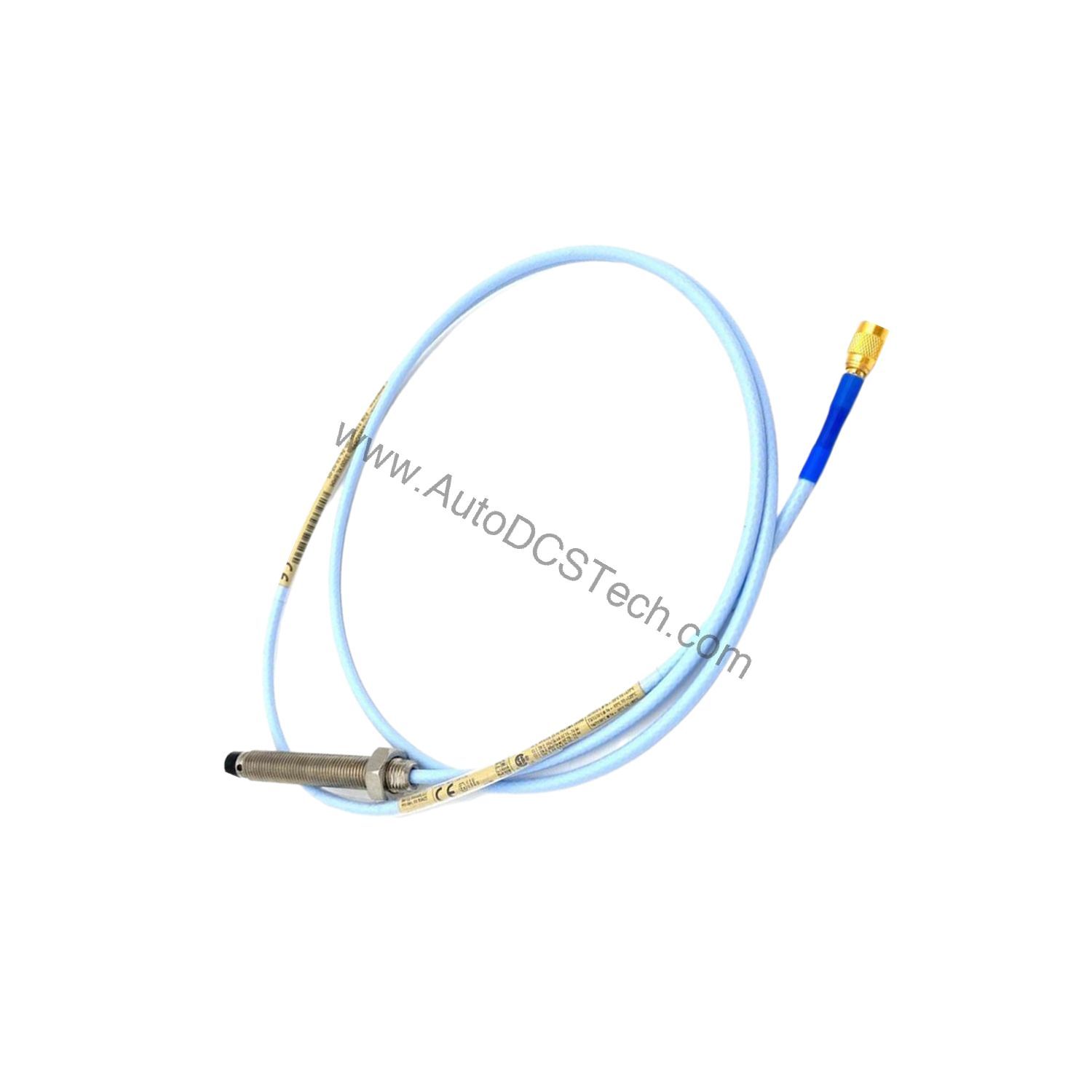

Industrial rotating machinery demands precise, reliable vibration monitoring to prevent catastrophic failures and optimize maintenance schedules. The Bently Nevada 330101-00-35-20-02-CN is a 3300 XL 8 mm Probe designed to deliver accurate displacement measurements in harsh environments. This probe features a 3/8-24 UNF thread and is supplied without armor, making it suitable for standard mounting configurations where additional mechanical protection is not required.
Compatibility and Integration
The 330101-00-35-20-02-CN is part of the 3300 XL system and is compatible with Bently Nevada Proximitor sensors and monitors. The standard cable length of 2.0 meters (6.6 feet) allows flexible placement near the machine. For applications requiring liquid sealing, an optional FluidLoc cable is available to prevent oil leakage through the cable interior.
Selection Guide and Purchasing Advice
When selecting a replacement or new probe, verify the thread size (3/8-24 UNF) and overall length requirements for your installation. The 330101-00-35-20-02-CN is available from AutoDCSTech, a trusted supplier of industrial automation parts. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
Availability & Condition at AutoDCSTech
| Part Number | 330101-00-35-20-02-CN |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
