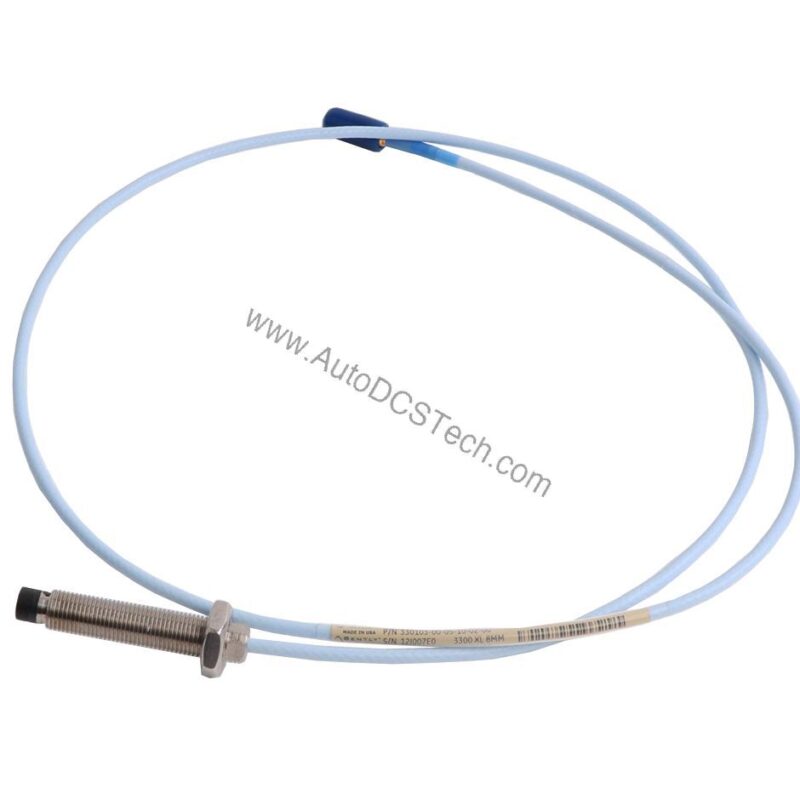

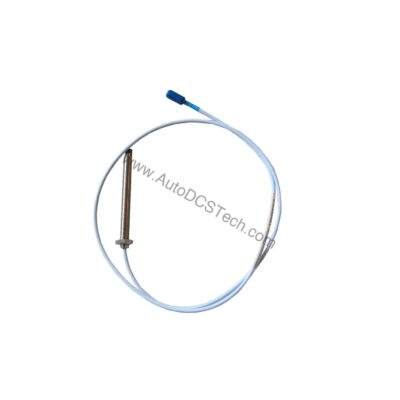

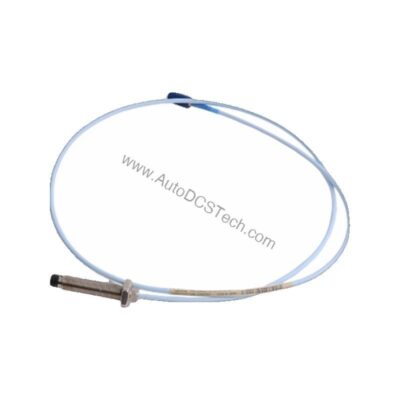

330103-00-07-10-12-00: 3300 XL 8 mm Proximity Probe
The 330103-00-07-10-12-00 is the 3300 XL 8 mm Proximity Probe covered on this page. The attribute that decides whether it fits the existing installation without modification is 2 mm (80 mils).
This configuration's 3300 xl 8 mm proximity probe is the attribute that drives the replacement decision. In a machine protection or condition-monitoring installation 3300 xl 8 mm proximity probe is the attribute that decides whether the sensor reaches the target and reads it on the correct gap. A probe or transducer specified to the wrong case length, thread or sensitivity either cannot reach the measured surface or returns vibration values that do not line up with the rest of the train. Confirming 2 mm (80 mils) against the existing mount is therefore the first check before a replacement, not an afterthought.
Configuration From the Published Data
This unit is documented as a 3300 XL 8 mm Proximity Probe. The configuration carried in the order code is: Linear Range: 2 mm (80 mils). These are the figures to confirm against the existing mount and monitor before ordering a replacement.
| Feature | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Brand | Bently Nevada |
| Part Number | 330103-00-07-10-12-00 |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel (SST) |
| Probe DC Resistance (1.0 m) | 7.59 ± 0.50 Ω |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap Setting | -9 Vdc [approx. 1.27 mm (50 mils)] |
| Operating Temperature (Standard) | -52°C to +177°C (-62°F to +350°F) |
| Extended Temperature (Tip) | -52°C to +218°C (-62°F to +425°F) |
| Extended Temperature (Cable) | -51°C to +260°C (-60°F to +500°F) |
| Relative Humidity | < 3% change in ASF at 93% humidity per IEC 68-2-3 |
| Weight | 323 g/m (11.4 oz) |
| Field Wiring | 0.2 to 1.5 mm² (16 to 24 AWG), max 305 m (1000 ft) cable length. |
Datasheet & Downloads
Specification sheet for 330103-00-07-10-12-00. For lead time, condition and price, contact our team.
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| bently-nevada-330103-00-07-10-12-05-3300-xl-8-mm-proximity-probe | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | 330103-00-07-10-12-00 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
