Bently Nevada 330103-03-10-10-02-00 3300 XL 8 mm Proximity Probe

Technical Specifications Breakdown

Key parameters for the 330103-03-10-10-02-00 are listed below for quick reference:

Industry Applications

Its 2 mm linear range and -9 Vdc recommended gap setting ensure reliable data for predictive maintenance programs. The robust PPS tip and stainless steel case withstand high temperatures up to +177°C, making it suitable for steam turbine applications.

Installation & Setup Guidance

When installing the 330103-03-10-10-02-00, ensure proper thread engagement (maximum 15 mm) and use the recommended gap setting of -9 Vdc for radial vibration monitoring. Field wiring should use 0.2 to 1.5 mm² (16 to 24 AWG) three-conductor shielded triad cable with tinned ends. The maximum cable length between the probe and monitor is 305 meters (1,000 feet). For intrinsically safe installations, use approved zener barriers per drawing 141092 or galvanic isolators.

Maintenance & Reliability

Inspect the probe and cable periodically for physical damage or wear. Avoid exposing the probe to temperatures below -34°C (-30°F) to prevent premature pressure seal failure. The probe is designed to seal differential pressure between tip and case using a Viton O-ring. Note that probes are not pressure tested prior to shipment.

Compatibility & Integration

It supports both standard and extended temperature range configurations. For hazardous area use, it is approved for Class I, Zone 0 and Class I, Division 2 environments when installed with appropriate barriers.

Selection Guide & Purchasing Advice

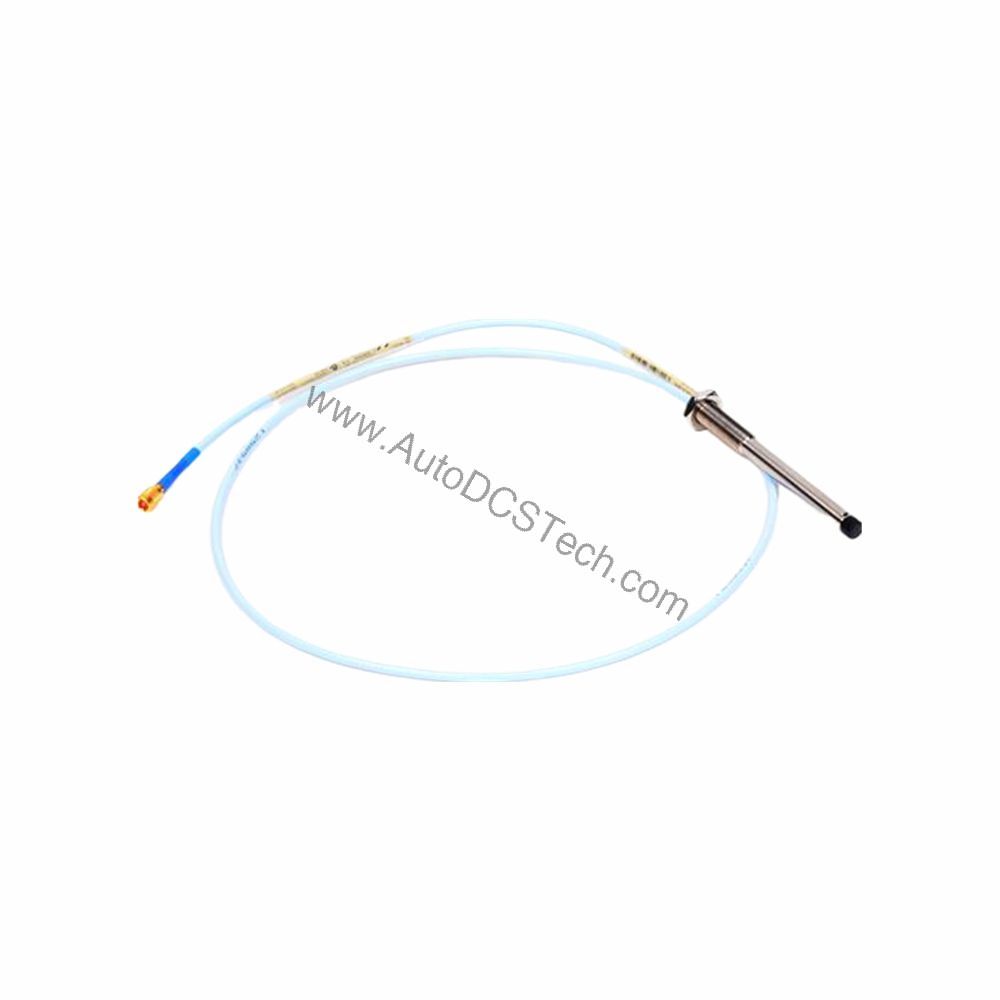

Select the correct probe length and connector type for your application. The 330103-03-10-10-02-00 features a 1.0 meter cable with a miniature coaxial ClickLoc connector. For extended temperature ranges or agency approvals, contact AutoDCSTech for custom options. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
