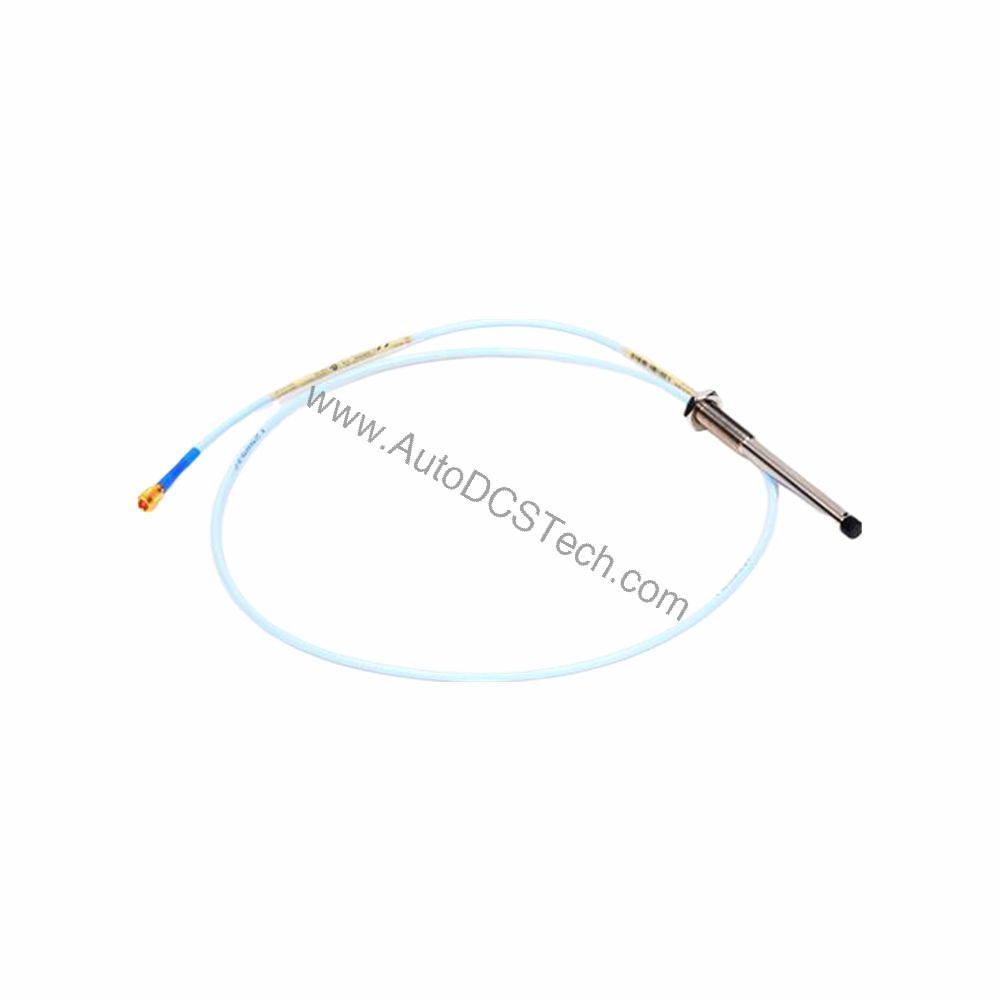

Bently Nevada 330103-05-12-10-01-00 3300 XL 8 mm Proximity Probe

Precision Vibration Monitoring with the Bently Nevada 330103-05-12-10-01-00

When protecting critical rotating machinery, accurate and reliable proximity sensing is non-negotiable. The Bently Nevada 330103-05-12-10-01-00 is a 3300 XL 8 mm proximity probe engineered for demanding industrial environments. This component delivers consistent performance for radial vibration and position measurements, helping you prevent unplanned downtime and extend equipment life.

Technical Specifications Breakdown

Key parameters for the 330103-05-12-10-01-00 are listed below for quick reference:

Industry Applications

The PPS tip and stainless steel case withstand harsh conditions, reducing false readings and maintenance intervals.

Installation & Setup Guidance

Proper installation begins with verifying thread engagement: the M10 x 1 thread allows a maximum engagement of 15 mm. Use 3-conductor shielded triad cable (0.2 to 1.5 mm², 16 to 24 AWG) for field wiring. Keep the distance between the 3300 XL Proximitor Sensor and monitor under 305 meters (1,000 feet) to avoid signal roll-off at high frequencies. Set the initial gap to approximately 1.27 mm (50 mils) for radial vibration applications.

Maintenance & Reliability

Inspect the probe cable and connector periodically for wear or damage. The probe sealing material (Viton O-ring) maintains differential pressure integrity, but avoid exposing the probe to temperatures below -34°C (-30°F) to prevent premature seal failure. The probe is not pressure tested before shipment; contact the custom design department if a pressure seal test is required for your application.

Compatibility & Integration

For hazardous locations, the probe can be installed with intrinsically safe zener barriers (per drawing 141092) or galvanic isolators for Class I, Zone 0 areas. Non-incendive installations (per drawing 140979) support Class I, Zone 2 environments.

Selection Guide & Purchasing Advice

When selecting a replacement or new probe, verify the unthreaded length (50 mm), overall case length (120 mm), and total length (1.0 meter) match your application. The miniature coaxial ClickLoc connector simplifies installation. AutoDCSTech stocks the Bently Nevada 330103-05-12-10-01-00 to support your vibration monitoring needs. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
