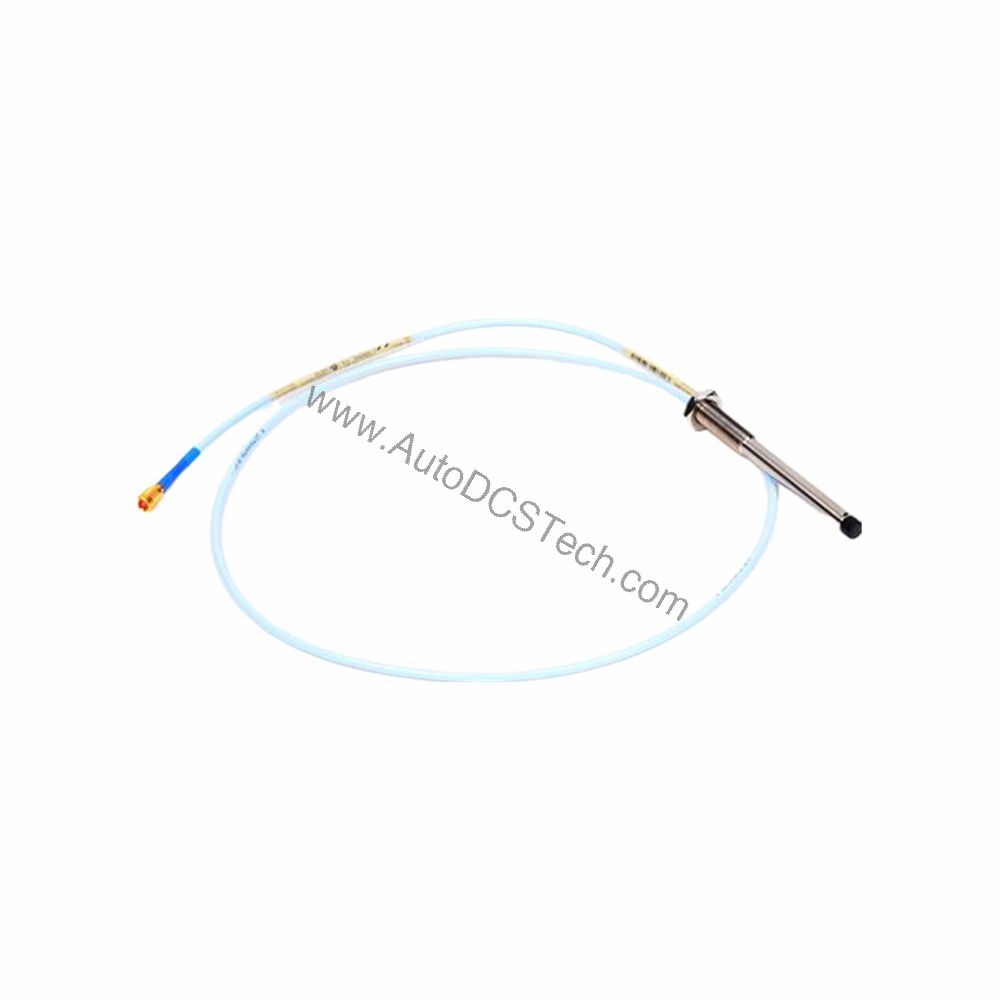

Bently Nevada 330103-05-12-10-02-00 3300 XL 8 mm Proximity Probe

Technical Specifications Breakdown

Key parameters for the 330103-05-12-10-02-00 are listed below for quick reference:

Industry Applications for the 3300 XL Probe

Its 2 mm linear range and precise gap setting enable early detection of shaft vibration, misalignment, and bearing wear. The M10 x 1 thread simplifies installation in standard mounting holes, while the ClickLoc connector ensures secure, quick cable attachment.

Installation & Setup Guidance

For best results, mount the probe with the recommended gap of -9 Vdc (approximately 1.27 mm or 50 mils). Use field wiring of 0.2 to 1.5 mm² (16 to 24 AWG) with a three-conductor shielded triad cable. Maximum cable length between the Proximitor Sensor and monitor is 305 meters (1,000 feet). Ensure the probe tip is clean and the target surface is smooth for accurate readings.

Maintenance & Reliability

The 330103-05-12-10-02-00 is built for long-term reliability in demanding environments. The PPS tip resists chemicals and wear, while the stainless steel case withstands corrosion. Operating temperature range from -52°C to +177°C allows use in extreme conditions. Inspect the cable and connector periodically for damage. The probe is designed to seal differential pressure with a Viton® O-ring, but it is not pressure tested before shipment—contact our custom design department if pressure seal testing is required.

Compatibility & Integration

The miniature coaxial ClickLoc connector ensures reliable signal transmission. For intrinsically safe installations, use with approved zener barriers per drawing 141092 or galvanic isolators for Class I, Zone 0 areas.

Selection Guide & Purchasing Advice

When selecting a proximity probe, match the total length (1.0 meter) and thread (M10 x 1) to your machine's requirements. Contact AutoDCSTech for availability and lifecycle status before ordering. We stock genuine Bently Nevada parts to minimize downtime.
