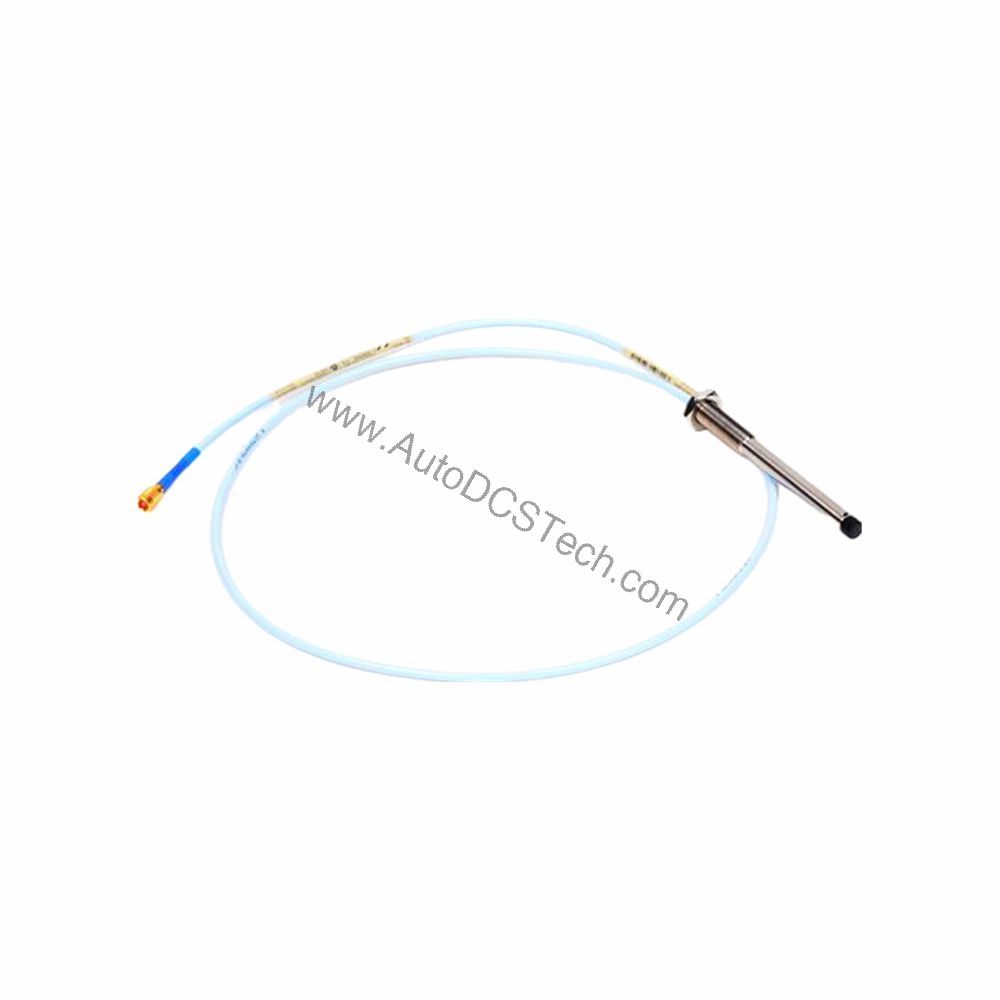

Bently Nevada 330103-05-12-10-02-05 3300 XL 8 mm Proximity Probe

Optimize Your Vibration Monitoring with the Bently Nevada 330103-05-12-10-02-05

In rotating machinery monitoring, accuracy and reliability directly impact operational costs. The Bently Nevada 330103-05-12-10-02-05 3300 XL 8 mm proximity probe delivers precise displacement measurements to prevent unplanned downtime and extend equipment life. This probe is engineered for harsh industrial environments, offering robust performance without compromising on sensitivity.

Technical Specifications Breakdown

Key parameters for the 330103-05-12-10-02-05 are listed below for quick reference:

Cost-Effective Condition Monitoring in Critical Applications

Using the 330103-05-12-10-02-05 in steam turbines, compressors, and pumps reduces maintenance costs by enabling early detection of shaft vibration and displacement. The 2 mm linear range covers typical clearance requirements, while the -9 Vdc recommended gap setting ensures consistent signal output. With CSA, ATEX, and IECEx approvals, this probe is suitable for hazardous areas, avoiding costly retrofits.

Installation Guidance for Maximum ROI

Proper installation minimizes signal noise and extends probe life. Use 3-conductor shielded triad cable with tinned field wiring, up to 305 meters (1,000 feet) between the probe and monitor. The M10 x 1 thread allows up to 15 mm thread engagement. Ensure the probe tip is clean and the target surface is smooth to maintain linearity. The probe seals with a Viton® O-ring; avoid temperatures below -34°C (-30°F) to prevent pressure seal failure.

Maintenance Practices to Preserve Accuracy

Periodically inspect the probe cable and connector for damage. The standard probe operates from -52°C to +177°C (-62°F to +350°F); extended range tips handle up to +218°C (+425°F). Humidity exposure below 93% relative humidity has minimal effect on the Average Scale Factor. Replace probes if resistance deviates beyond 7.59 ± 0.50 Ω.

Compatibility and Integration

This probe works with Bently Nevada 3300 XL Proximitor Sensors and monitors. Field wiring length up to 305 meters (1,000 feet) maintains signal integrity. For intrinsically safe installations, use zener barriers per drawing 141092 or galvanic isolators. For non-incendive circuits, follow drawing 140979.

Purchasing Advice from AutoDCSTech

When selecting the 330103-05-12-10-02-05, verify your required cable length and agency approvals. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
