Technical Specifications Breakdown
Key parameters for the DS200FGPAG1A are listed below for quick reference:
| Feature | Specification |
|---|---|
| Model Number | DS200FGPAG1A |
| Series | LS2100 |
| OEM / Manufacturer | GE Energy |
| Part Specific Manual | GEI-100223 |
| Number of Test Points | 30, Nine for Gate A, Nine for Gate B, and 12 for Cell Status Monitors |
| Twelve-Pulse Convertor Supply Voltage | 2080 or 3300 VAC |
| Compatibility | Not Backwards Compatible |
| Number of Gate Driver Circuits | Two |
| Quantity of Fiber-Optic Connectors | 15, One Fiber-Optic Transmitter, and Fourteen Fiber-Optic Receivers |
Industry Applications for the DS200FGPAG1A
This gate pulse amplifier board is ideally suited for industrial environments where LCI drives are used for large motor control, such as in mining conveyors, pump stations, and compressor trains. The 2080 or 3300 VAC twelve-pulse convertor supply voltage makes it a robust choice for high-voltage applications. The fiber-optic connectors provide immunity to electrical interference, allowing reliable operation near high-power cables. Engineers managing critical drive systems will appreciate the dedicated SCR status monitoring and gate driver circuits that enhance system diagnostics and uptime.
Installation & Setup Guidance
When installing the DS200FGPAG1A, ensure the board is handled in an ESD-safe environment. Keep the module in its protective container until ready for installation to minimize static damage. The board features 15 fiber-optic connectors—one transmitter and fourteen receivers. For duplex networks, use two receiving ports; the remaining ports serve simplex networks. When routing fiber-optic cables, avoid exceeding the recommended bend radius to prevent signal degradation or cable damage. The fiber-optic network can be configured by adjusting signal power based on cable length and other factors. Up to two repeaters can be added to extend network reach.
Maintenance & Reliability
Periodic inspection of the fiber-optic connectors and cable integrity is recommended to maintain reliable communication. The board's design, with 30 test points (nine for Gate A, nine for Gate B, and 12 for cell status monitors), facilitates troubleshooting during routine maintenance. Ensure the twelve-pulse convertor supply voltage remains within the specified 2080 or 3300 VAC range. Because the board is not backwards compatible, verify that your system uses the LS2100 Series before ordering.
Gate Pulse Amplifier Board for Critical Drive Systems

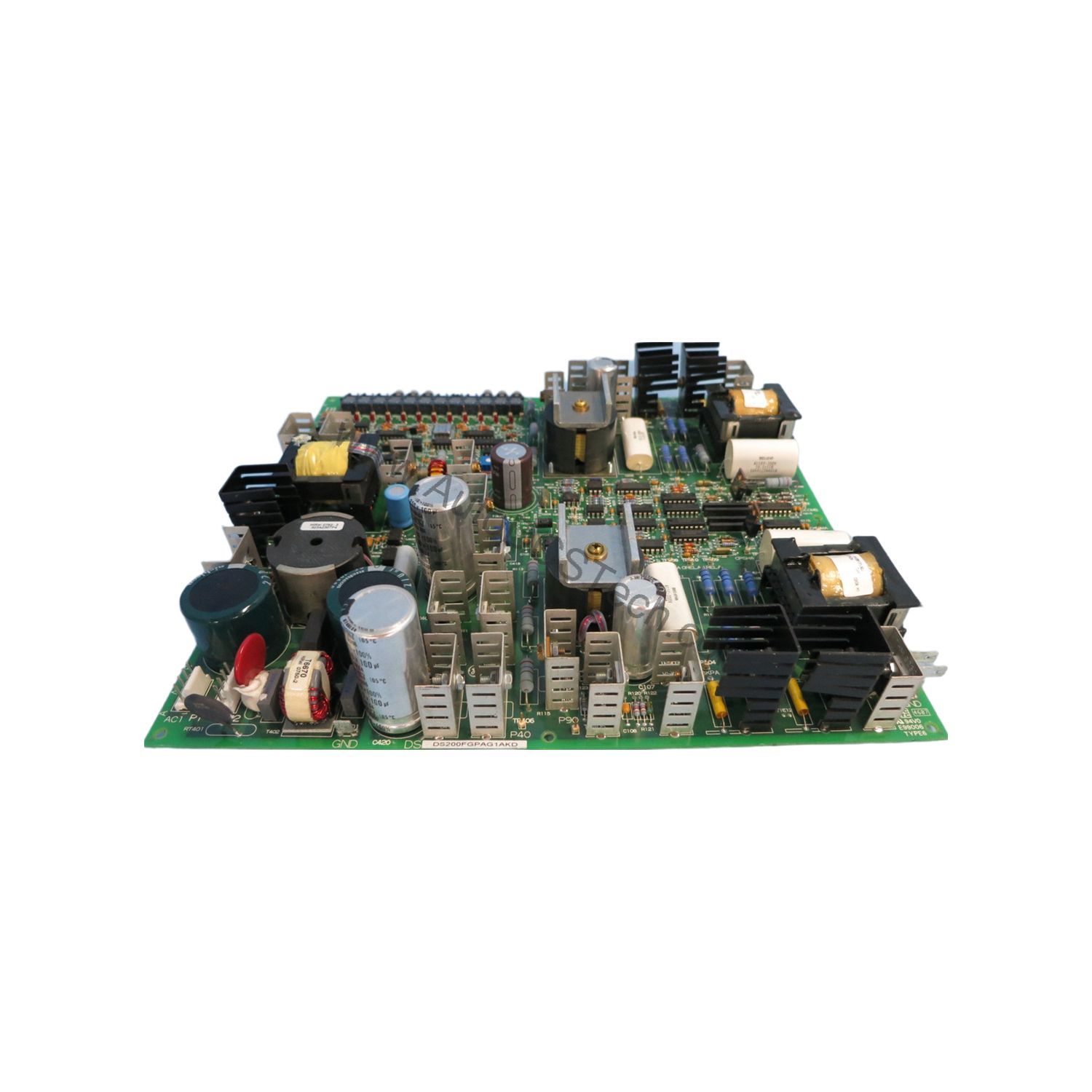

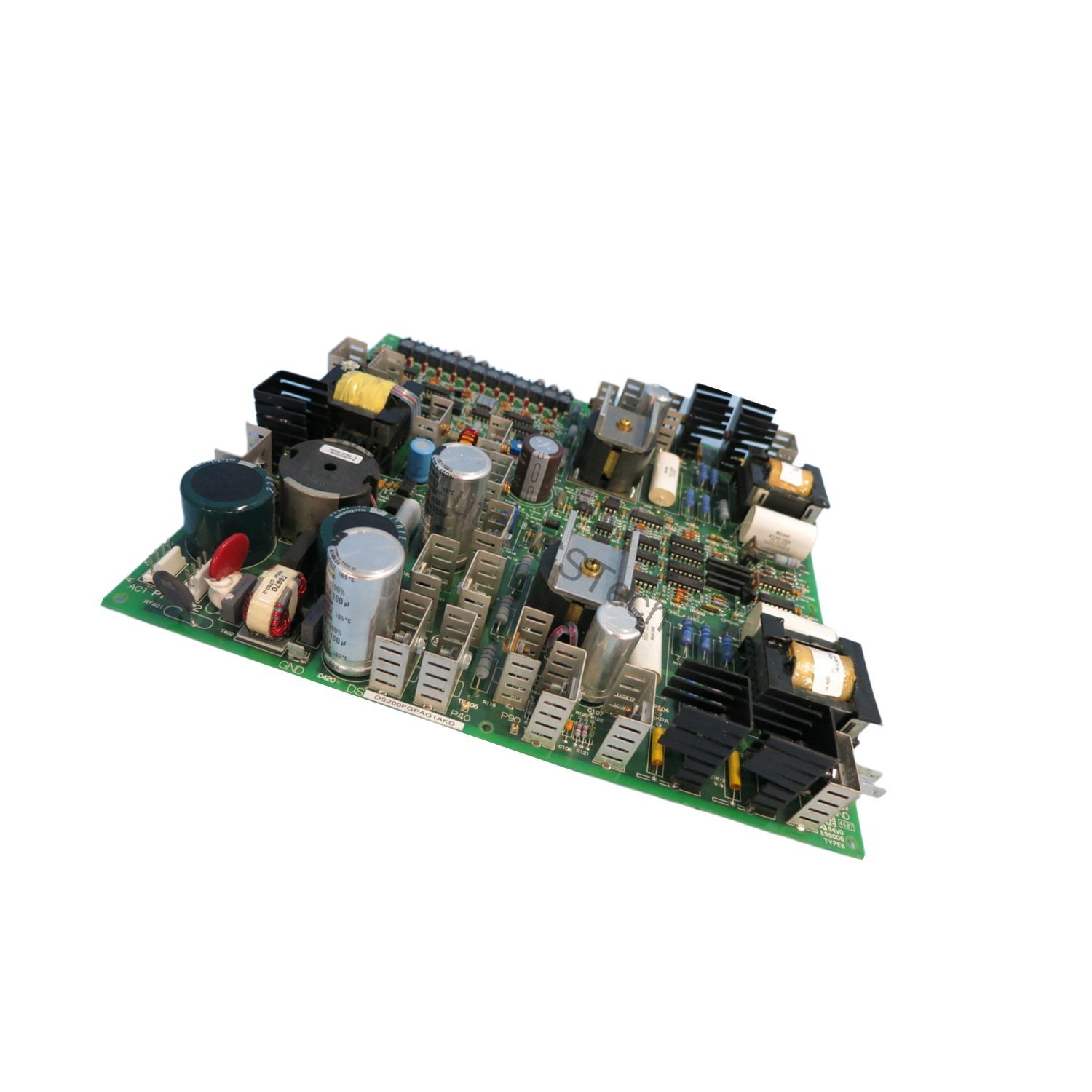

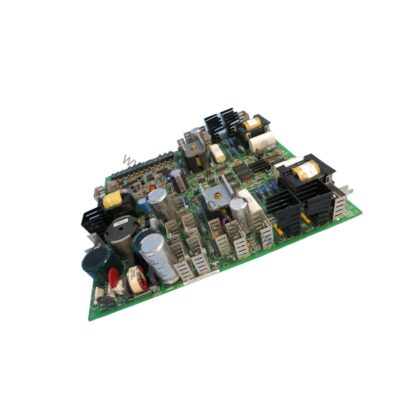

The DS200FGPAG1A Gate Pulse Amplifier Board is a key component in the LS2100 Series from General Electric Industrial Systems. This module is designed to support Load Commutated Inverter (LCI) applications by performing three essential functions: SCR status monitoring, gate driver operation, and switching power supply regulation. It integrates three FPGAs, each dedicated to a three-phase silicon-controlled rectifier bridge, ensuring precise control and monitoring.
Selection Guide & Purchasing Advice
For engineers seeking a reliable gate pulse amplifier board for LCI drive systems, the DS200FGPAG1A offers proven performance from GE Energy. Common revisions include DS200FGPAG1AMD, DS200FGPAG1AKD, DS200FGPAG1AHD, and DS200FGPAG1AFC. Please verify current lifecycle status and availability with AutoDCSTech before ordering. AutoDCSTech provides genuine industrial automation parts with expert support to help you select the right component for your application.
