GE DS200SIOBH1ABA Mark V VME Stand I/O Card

DS200SIOBH1ABA Overview

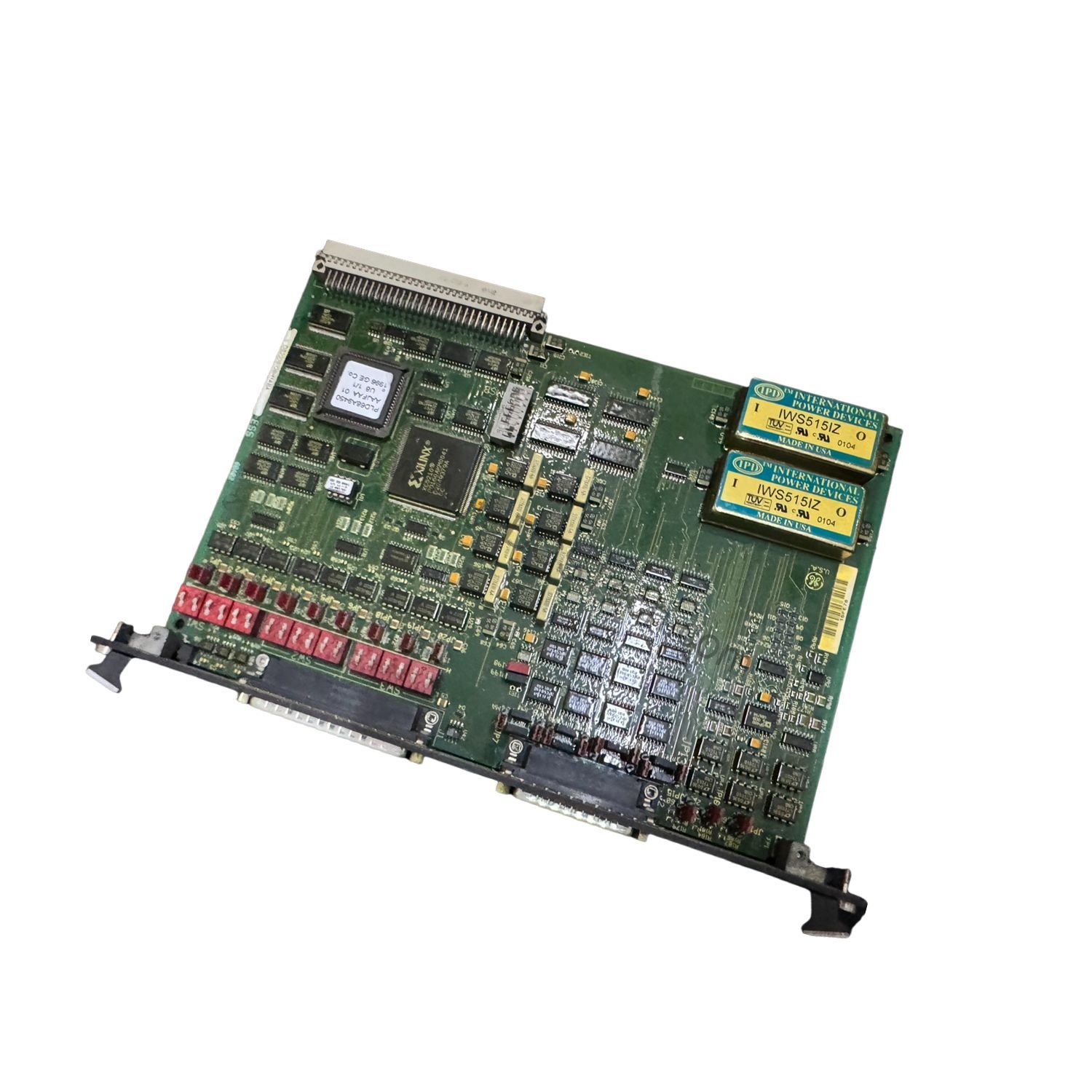

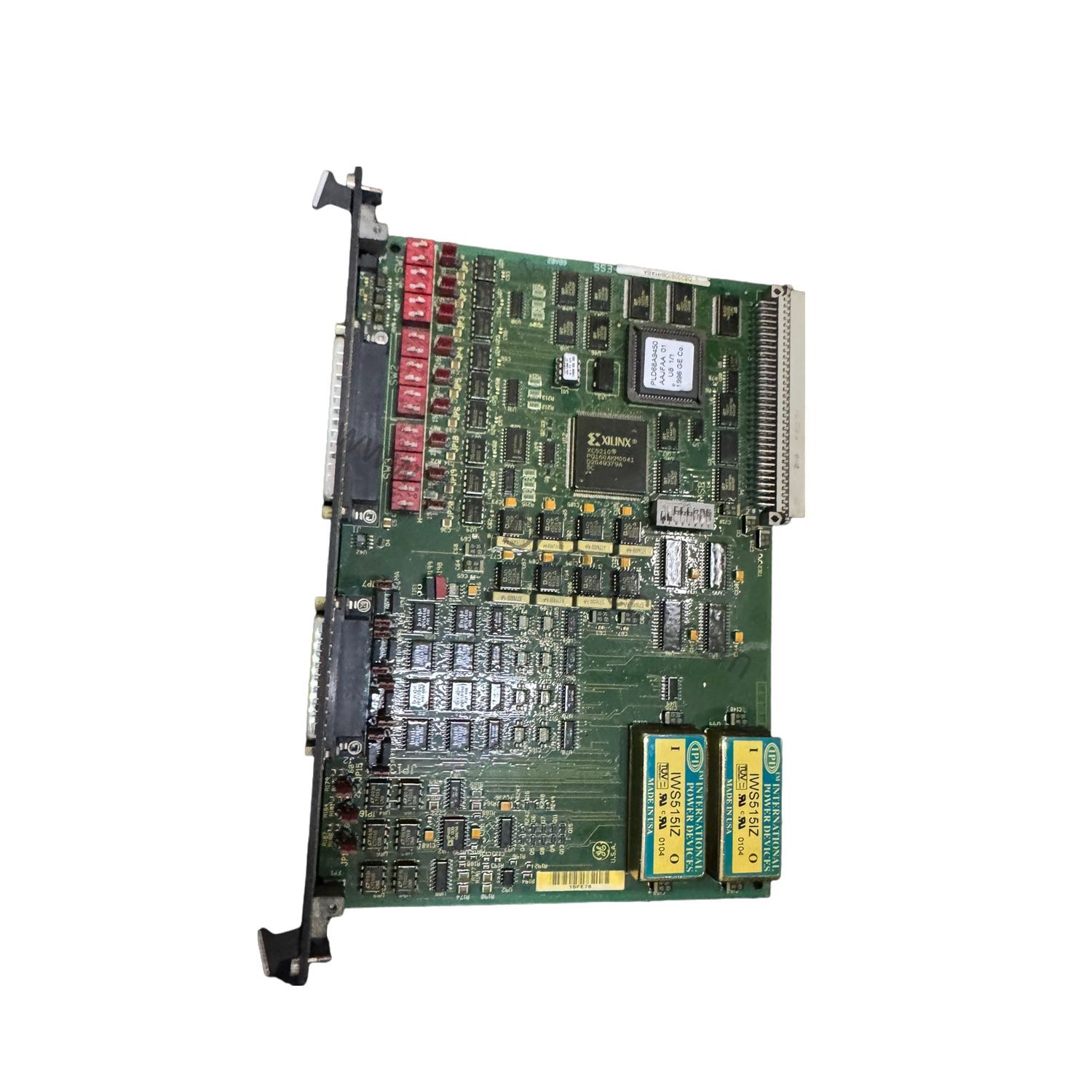

The GE DS200SIOBH1ABA is a VME Stand I/O Card (SIOB) designed for the Mark V Turbine Control System Series. This printed circuit board (PCB) is a revised version of the original DS200SIOBH1 parent product, offering enhanced functionality for managing gas, steam, and wind turbines. As part of GE's legacy Speedtronic technology, this module provides reliable I/O control in demanding industrial environments.

Technical Specifications Breakdown

Key parameters for the DS200SIOBH1ABA are listed below for quick reference:

Industry Applications

This I/O card is engineered for turbine control systems, specifically within the Mark V series used for gas, steam, and wind turbines. Its VME form factor allows integration into existing rack installations, providing reliable I/O handling for critical control loops. Engineers often choose this component for replacement in legacy systems where maintaining original performance is essential.

Installation & Setup Guidance

When replacing the DS200SIOBH1ABA, follow best practices to ensure consistent operation. First, power down the drive and remove the old board by unscrewing it from the board rack. Use two hands to avoid damaging adjacent components. Place the old board on a static-protective bag on a clean, dry surface. Remove the replacement board from its sealed bag and set it next to the old board. Match the jumper positions and switch settings exactly to the old board's configuration. This ensures the new board replicates the same behavior and supports drive performance. Refer to the original manual for alternate jumper settings if needed.

Maintenance & Reliability

The DS200SIOBH1ABA features conformal coating for protection against moisture and contaminants, enhancing reliability in harsh environments. The single LED indicator provides a quick visual check of board access status. For long-term reliability, inspect the board periodically for dust or corrosion, and ensure the VME rack environment remains clean and dry.

Compatibility & Integration

This card is designed for the Mark V series VME rack, mounting on the P1 connector and occupying one full VME slot. As a revised version of the DS200SIOBH1, it maintains compatibility while offering updated performance. Always verify system compatibility with AutoDCSTech before ordering.

Selection Guide & Purchasing Advice

Before purchasing, confirm the DS200SIOBH1ABA's lifecycle status with AutoDCSTech, as the Mark V series is legacy. AutoDCSTech stocks this module for immediate shipment, ensuring minimal downtime for your turbine control system. Contact our team for assistance with matching revisions or bulk orders.
