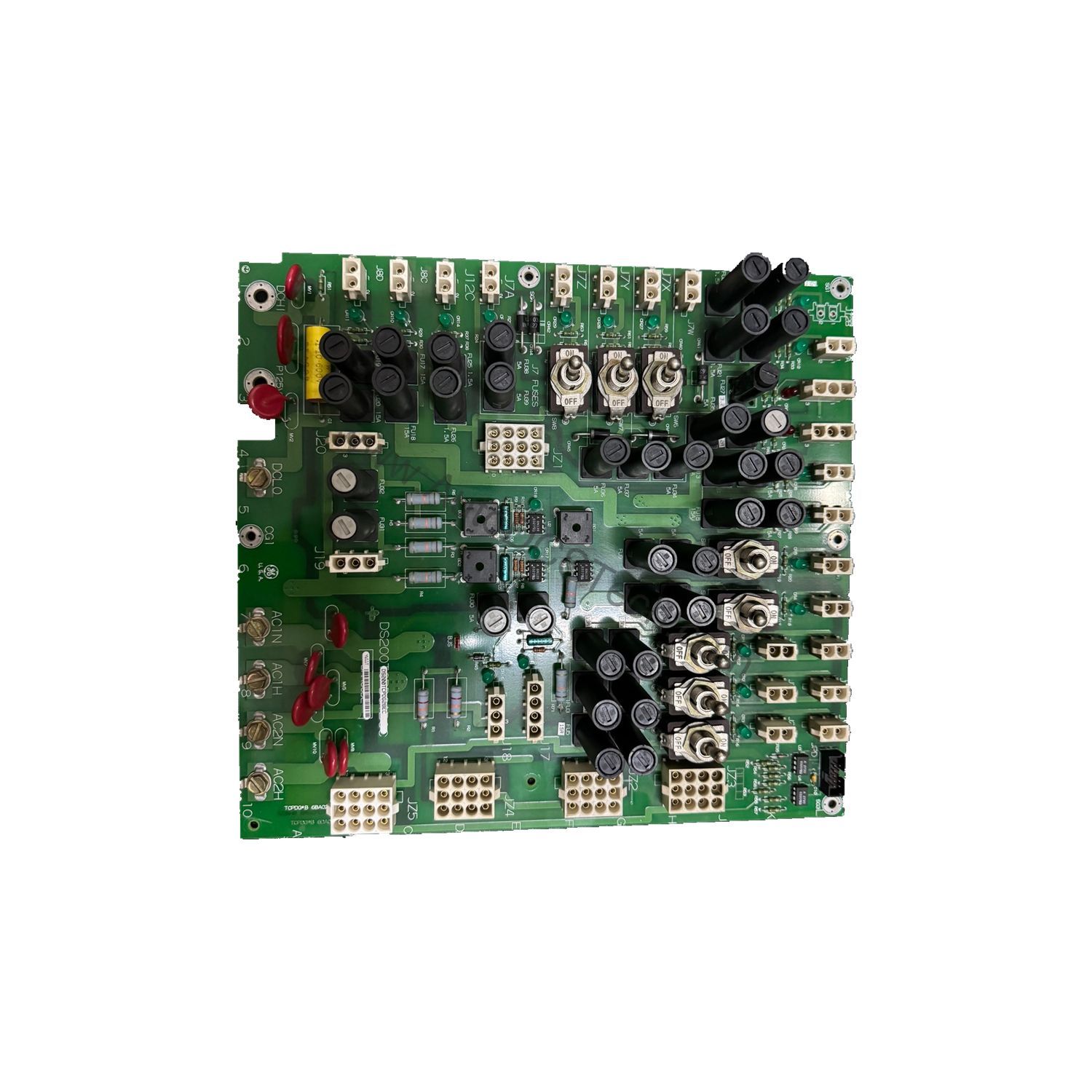

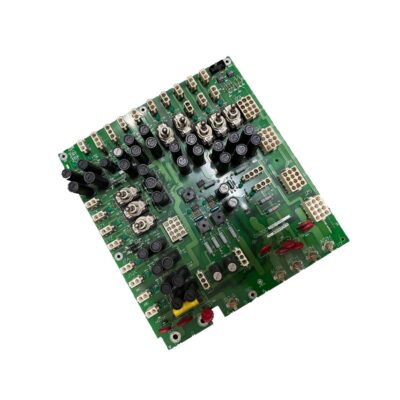

GE DS200TCPDG2BEC Mark VI Power Distribution Module for Turbine Control

Technical Specifications Breakdown

Key parameters for the DS200TCPDG2BEC are listed below for quick reference:

Industry Applications and Failure Prevention

In combined-cycle power plants, the DS200TCPDG2BEC distributes 125 V DC to TCPS boards in R1, R2, R3, R5, and R cores, ensuring each core receives stable power for control logic execution. It also supplies 120/240 V AC to ignition transformers via the DTBC board, critical for burner management. By using this module, engineers prevent voltage drops that cause processor resets and solenoid output failures.

Installation and Setup Guidance

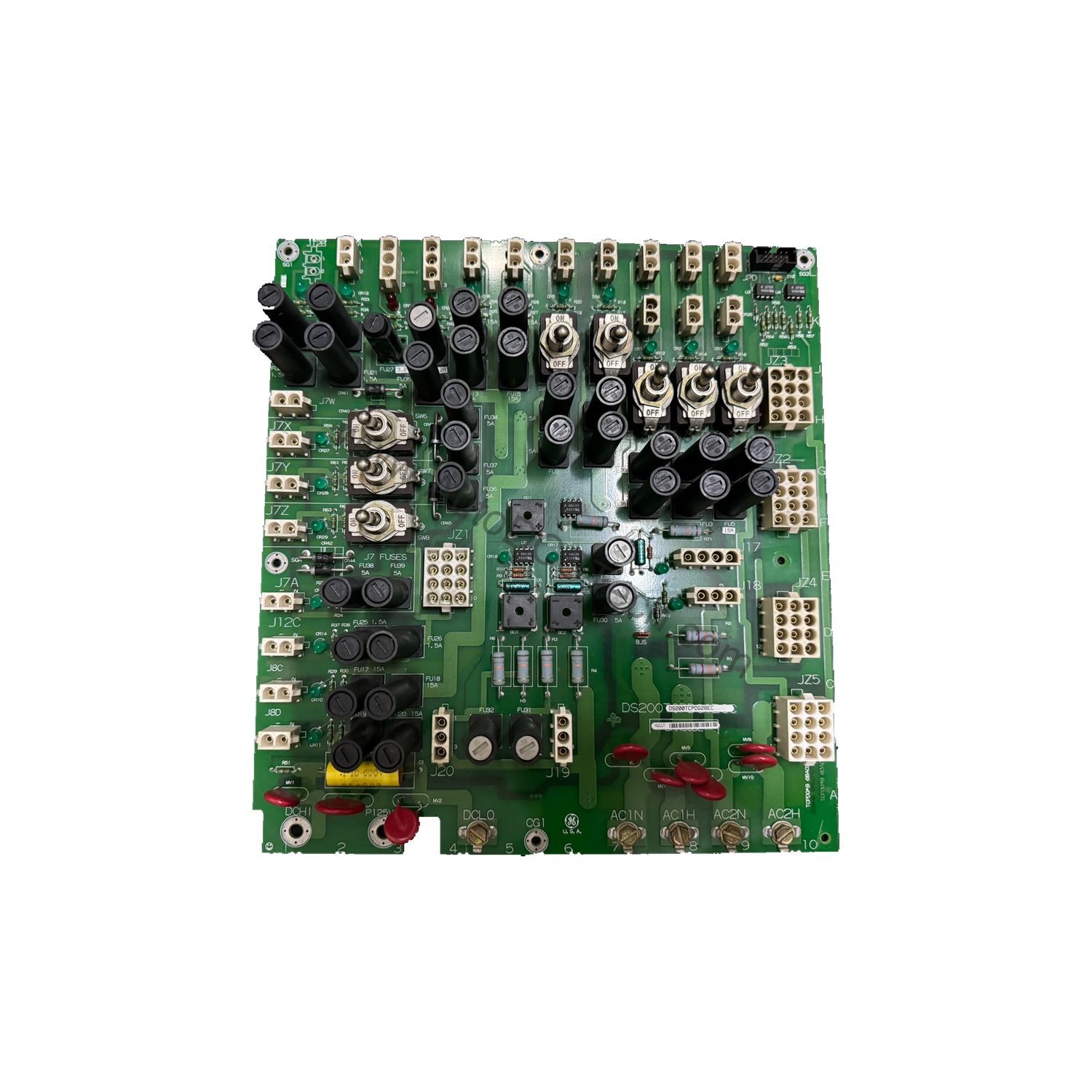

When replacing a DS200TCPDG2BEC, first verify that all signal wires are labeled with their terminal IDs (AC1N, AC1H, AC2N, AC2H). Use a tag that won't come off the wire easily. Loosen the screw on each terminal with a screwdriver, remove the old wire, then insert the matching wire into the same terminal on the new board. Tighten the screw and gently tug the wire to confirm it is secure. No software configuration is required for this board.

Maintenance and Reliability

Inspect the DS200TCPDG2BEC periodically for signs of corrosion or loose connections, especially on TB1 and the JZ connectors. Ensure the ambient environment is free of excessive dust and moisture, as these can degrade power distribution performance. The board's switches (SW1 through SW8) should be tested during scheduled outages to confirm they properly toggle power to each core.

Optimizing Power Distribution in Turbine Control Systems

Industrial turbine control systems demand reliable power distribution to maintain uptime and prevent failures. The GE DS200TCPDG2BEC is a Mark VI Power Distribution Module (TCPD) that solves the challenge of delivering stable 125 V DC and 120/240 V AC power to critical control components. Without proper power distribution, core processors and I/O boards can experience intermittent faults, leading to costly shutdowns.

Compatibility and Integration

The DS200TCPDG2BEC is designed for the GE Mark VI turbine control system. It interfaces with TCPS boards in each I/O core, TCEA boards in the P1 core, and DTBC/DTBD boards in digital cores. The module accepts external 115/230 V AC and 125 V DC power via TB1. For systems requiring lower voltage for contact #18 on the DTBC board in the Q51 core, an optional JZ3 connection is available.

Selection Guide and Purchasing Advice

When sourcing a replacement DS200TCPDG2BEC, verify that the board revision matches your system requirements. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
