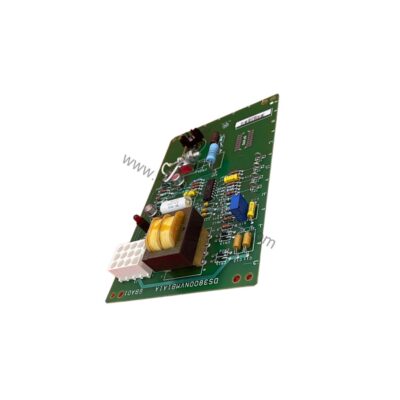

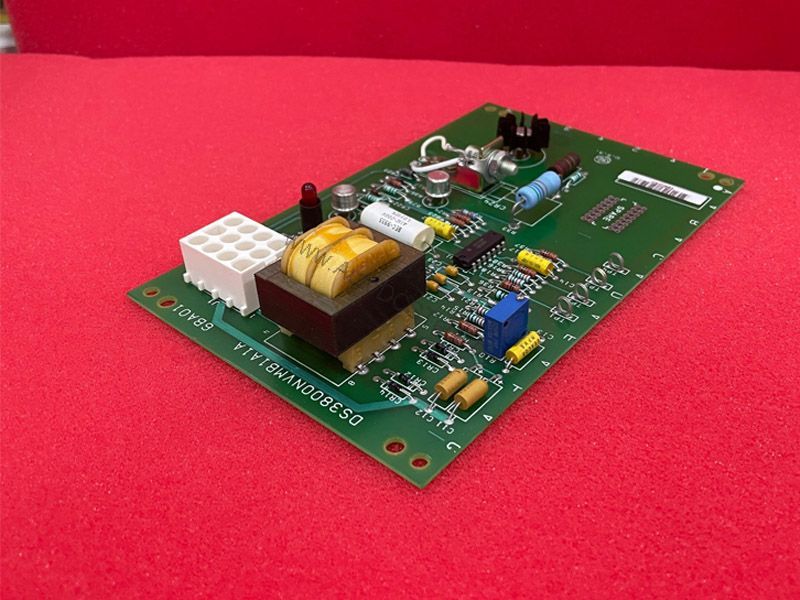

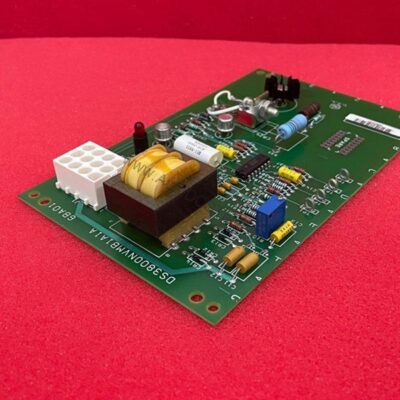

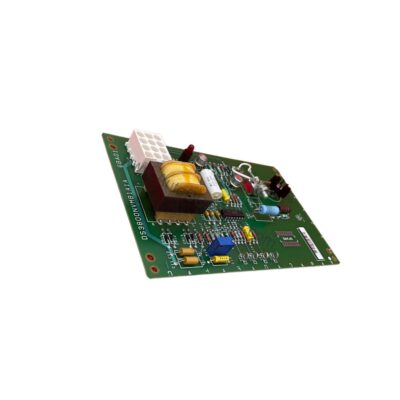

GE DS3800NVMB1A1A Voltage Monitor Board for Mark IV Speedtronic Systems

DS3800NVMB1A1A: The Voltage Monitoring Board in a Mark IV Speedtronic Set

This board sits inside the drive electronics of a Mark IV Speedtronic system and its job is measurement: it monitors the DC bus voltage and reports it back to the drive control. In a system from this generation, that measurement is not a convenience — it is what allows the drive to detect a supply fault or an abnormal bus condition before the inverter stage is committed, which is the difference between a controlled shutdown and a tripped drive with a fault code to diagnose.

The practical reason a board like this gets ordered is usually a failed measurement rather than a failed drive. When the drive reports a bus voltage fault that does not correspond to an actual supply problem, the monitoring board is where the fault is looked for first, and a replacement board is faster than a full drive exchange.

Mark IV Speedtronic Board Variants

Boards within the Mark IV Speedtronic system differ in what they monitor. Confirming the board function against the drive it is being fitted to is what prevents a board that installs correctly but reports the wrong quantity:

All GE parts · I/O Modules

Where This Board Fits in the Drive Electronics

The board is a Mark IV Speedtronic system component, not a general-purpose module. It mounts in the drive electronics enclosure and connects to the drive control via the internal board interface, which is why it is specified against a drive family rather than as a standalone card.

When replacing a monitoring board, confirm the drive family and the board revision against the drive it is being fitted to. Boards within a drive family are generally not interchangeable across revisions, and a mismatch produces either no communication or incorrect voltage reporting — which is worse than an obvious failure because it looks like a process problem rather than a hardware one.

Diagnosis Sequence for a Bus Voltage Fault

1. Measure the actual DC bus voltage at the drive and compare it against the reported value.
2. If the measured voltage is within specification but the reported value is not, the monitoring board or its interface is the suspect.
3. If both are out of specification, the fault is upstream in the supply — investigate the supply before replacing the board.

This order matters because replacing a monitoring board on a machine whose supply is actually out of specification solves nothing and costs a board.

Commissioning After Replacement

After fitting a replacement board, verify that the reported bus voltage tracks an actual measured value across the supply range the drive sees in normal operation. A board that reports a plausible but offset value will not raise an immediate fault, which makes it harder to catch than a board that fails outright.

Supply & terms: Stock status: In Stock · Condition: New · Warranty: One Year · Origin: US. Listed by AutoDCS Tech Parts Team · Last updated 2026-10-07.
