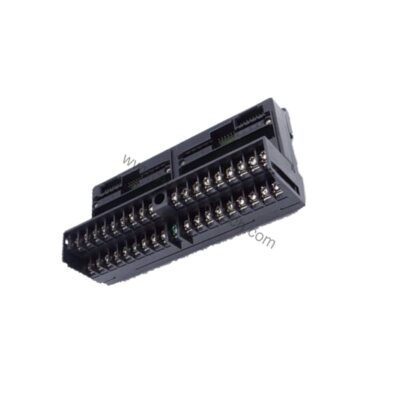

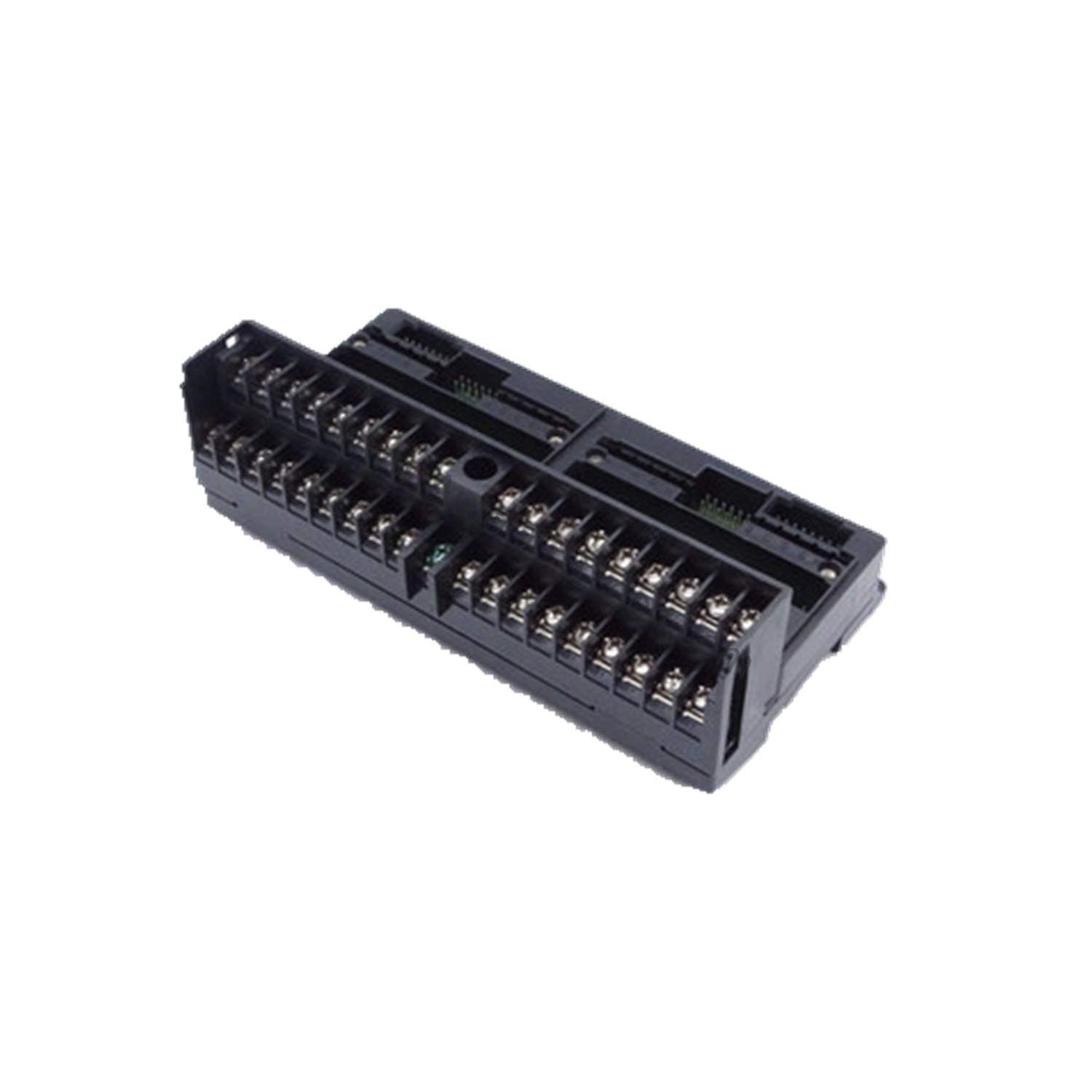

GE Fanuc IC670CHS101 Field Control I/O Terminal Block Barrier Style

Technical Specifications Breakdown

Key parameters for the IC670CHS101 are listed below for quick reference:

Industry Applications Driving ROI

In automotive assembly lines, its barrier terminals prevent accidental bridging between signals, reducing troubleshooting labor costs. In chemical processing plants, the hot-swap capability allows module replacement without shutting down production, directly improving overall equipment effectiveness (OEE). For water treatment facilities, the ability to handle AWG 14-22 cables ensures compatibility with existing field wiring, avoiding re-cabling expenses.

Installation & Setup Guidance

Mount the IC670CHS101 onto a conductive DIN rail properly grounded to the panelboard. Connect the system power supply to terminals A and B as labeled. Use a torque driver set to 4.5 pounds on an inch for terminal screws to ensure reliable connections without damage. Insert up to two GE Fanuc I/O modules onto the block and secure them with the provided locking screws to prevent disconnection from vibration. When daisy-chaining multiple blocks, verify correct polarity to avoid communication issues.

Maintenance & Reliability

Periodically inspect the barrier terminals for signs of corrosion or loose wiring, especially in high-vibration or humid environments. The hot-swap design allows module replacement without powering down the block, but always follow standard lockout/tagout procedures when working on the system. Keep the terminal block free of dust and debris to maintain insulation resistance.

Cost-Efficient Wiring with the GE Fanuc IC670CHS101 I/O Terminal Block

In industrial automation, wiring errors and downtime directly impact operational costs. The GE Fanuc IC670CHS101 I/O terminal block is engineered to minimize these risks by providing a robust, barrier-style connection platform for Field Control I/O modules. This component reduces installation time and prevents costly short circuits, making it a smart investment for any control system.

Compatibility & Integration

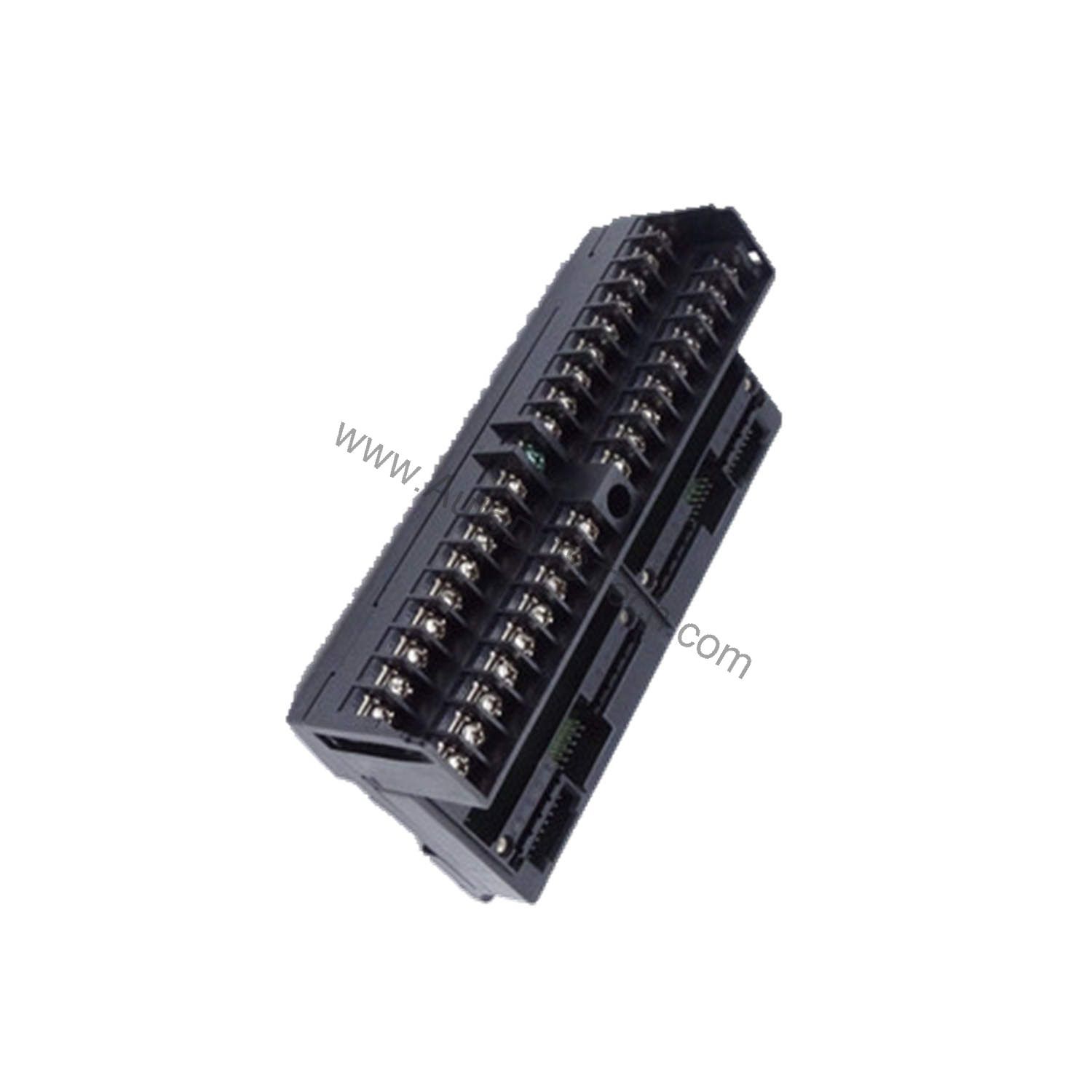

The IC670CHS101 is designed for the GE Fanuc Field Control series and supports up to two I/O modules per block. Its 37 barrier terminals provide dedicated points for inputs, outputs, and power connections, simplifying integration into existing control panels. The AWG 14-22 wiring range accommodates most industrial field cables.

Selection Guide & Purchasing Advice

When selecting a terminal block, consider the number of I/O points needed and the wiring environment. For replacement or new installations, verify compatibility with your existing GE Fanuc modules. AutoDCSTech stocks the IC670CHS101 and can advise on lifecycle status and availability. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting & Common Issues

If communication errors occur after installation, check that all terminal blocks in the series are wired with correct polarity. Loose terminal screws can cause intermittent signals; re-torque to 4.5 pounds on an inch. If a module fails to seat properly, inspect the locking screws and ensure the module is fully inserted. For hot-swap operations, confirm the replacement module is the same type to avoid configuration mismatches.
