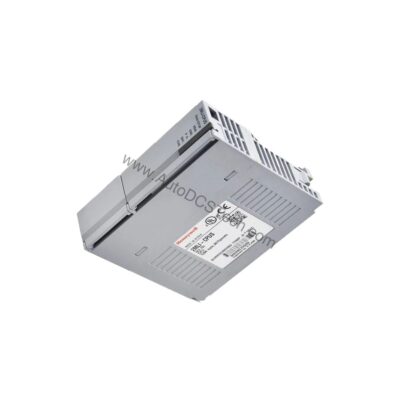

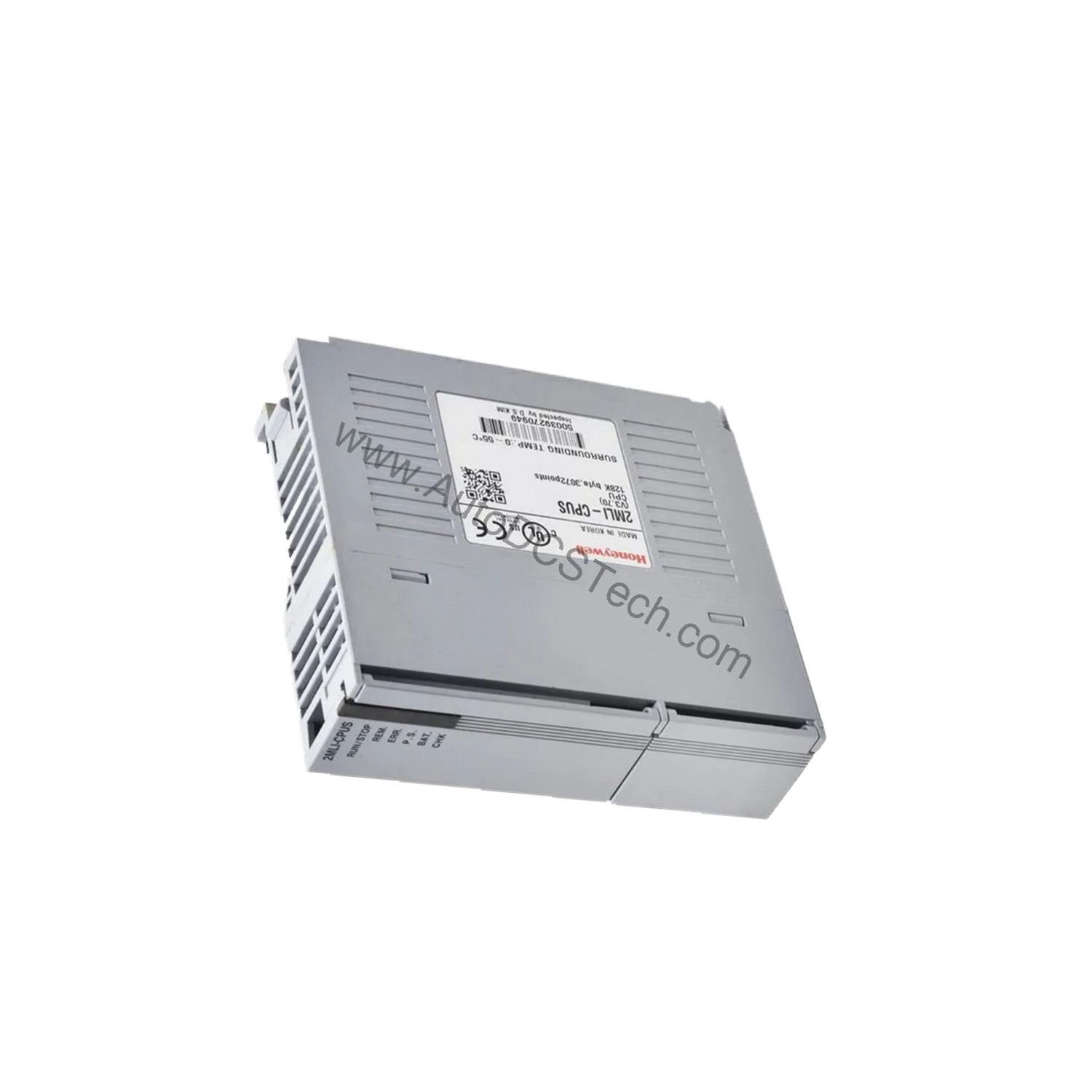

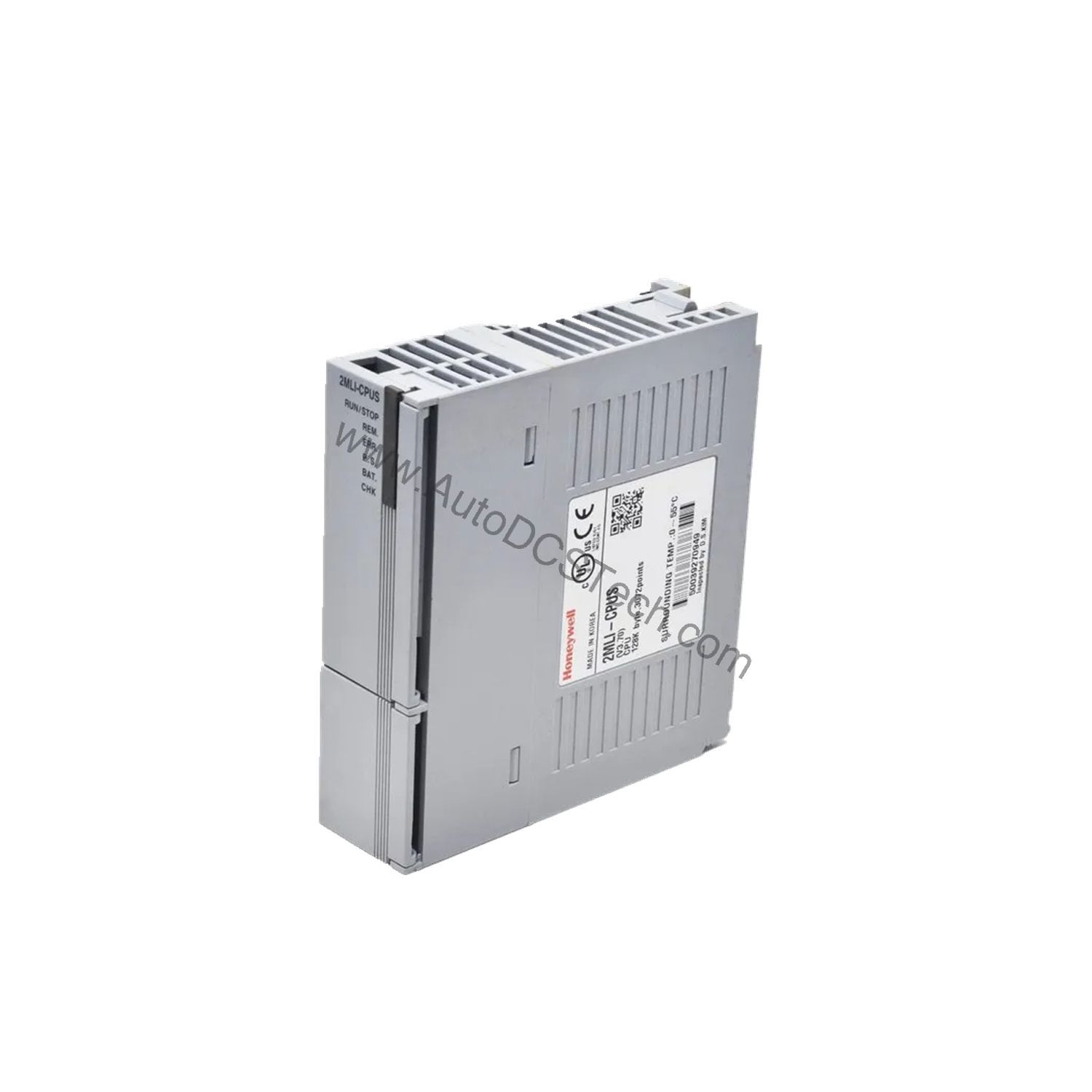

Honeywell 2MLI-CPUS MasterLogic-200 CPU Module 768 I/O

Technical Specifications Breakdown

Key parameters for the 2MLI-CPUS are listed below for quick reference:

Industry Applications That Benefit from Redundancy

Continuous Manufacturing Lines

In industries like food and beverage, pharmaceuticals, or chemical processing, an unexpected controller failure can spoil an entire batch. The 2MLI-CPUS with its redundant power supply reduces that risk. If one power module fails, the second takes over , keeping the line running. The 768 I/O capacity allows you to connect a wide range of sensors, actuators, and drives, all managed from a single CPU.

Water and Wastewater Treatment

Water treatment plants operate around the clock. A controller that supports 768 I/O points can handle multiple pumps, valves, and level sensors across different treatment stages. The 640KB program memory is sufficient for complex PID loops, sequencing, and alarm management. The IEC standard ensures that programming follows internationally recognized languages, making it easier for your team to maintain and modify the logic.

Energy and Utilities

For power distribution or renewable energy installations, reliability is non-negotiable. The redundant power supply in the 2MLI-CPUS minimizes the chance of a single point of failure. This makes the module a solid choice for critical infrastructure where unplanned shutdowns have significant financial and safety implications.

Installation and Setup Guidance

When integrating the Honeywell 2MLI-CPUS into your control panel, follow these practical steps:

1. Verify Power Connections: Since the module supports redundant power supplies, ensure both inputs are wired to independent power sources. This provides true redundancy.
2. Check I/O Wiring: With up to 768 I/O points, proper labeling and organization of field wiring are essential. Use cable ducts and terminal blocks to keep connections tidy and accessible.
3. Program Loading: The 640KB memory allows for large programs. Use the IEC-compliant programming software to download your logic. Always back up the program before making changes.
4. Grounding: Follow standard grounding practices to avoid electromagnetic interference. The IEC standard provides guidelines that should be followed.

Maintenance and Reliability Tips

Regular maintenance is key to long-term reliability. Inspect the module and its power supplies periodically for signs of dust, corrosion, or loose connections. Keep the enclosure clean and ensure proper ventilation to prevent overheating. Since the power supply is redundant, test each unit individually to confirm they are both functional. If you notice any warning indicators, address them promptly. Always keep a spare module on hand to minimize downtime in case of a hardware failure.

Why the Honeywell 2MLI-CPUS Stands Out in Process Control

For engineers responsible for continuous processes, the controller at the heart of the system must deliver both performance and resilience. The Honeywell 2MLI-CPUS, part of the MasterLogic-200 Series, is engineered to meet those demands. It supports a maximum I/O capacity of 768 points, making it suitable for medium-to-large scale applications. With 640KB of program memory, this CPU provides ample space for complex control logic. The redundant power supply option ensures that a single power failure does not halt your operations. This module is built to the IEC standard, aligning with international safety and performance benchmarks.

Compatibility and Integration

The 2MLI-CPUS is part of the MasterLogic-200 Series, designed for seamless integration with other Honeywell automation components. It supports the IEC programming standard, which means you can use common programming languages like Ladder Diagram, Function Block, and Structured Text. This flexibility simplifies integration with existing systems and makes it easier for engineers with different backgrounds to work on the same project.

Selection Guide and Purchasing Advice

When selecting a CPU for your application, consider the I/O count, memory, and power supply requirements. The Honeywell 2MLI-CPUS is an choice if you need up to 768 I/O points and 640KB of memory. The redundant power supply is a valuable feature for critical processes. At AutoDCSTech, we supply genuine Honeywell modules and can help you verify that this part meets your needs. Contact our team for availability and lifecycle status before ordering.

Troubleshooting Common Issues

If the controller does not start, check the power supply connections and input voltage. Verify that both power modules are seated correctly and that the input power is within the specified range. If the program does not run, ensure that the memory is not corrupted by re-downloading the program. For I/O issues, check the wiring and the status LEDs on the module. If problems persist, consult the Honeywell documentation or contact AutoDCSTech for technical support.
