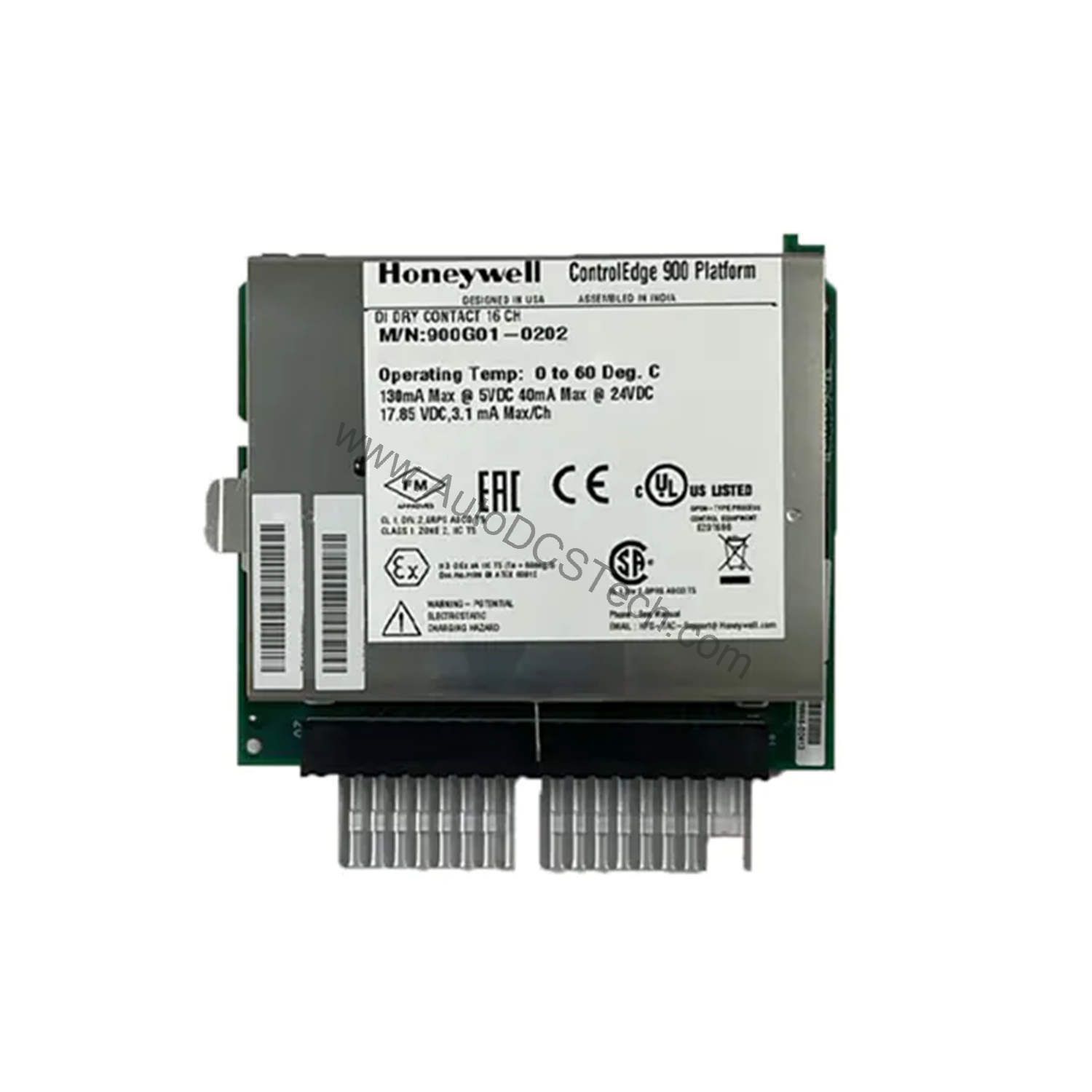

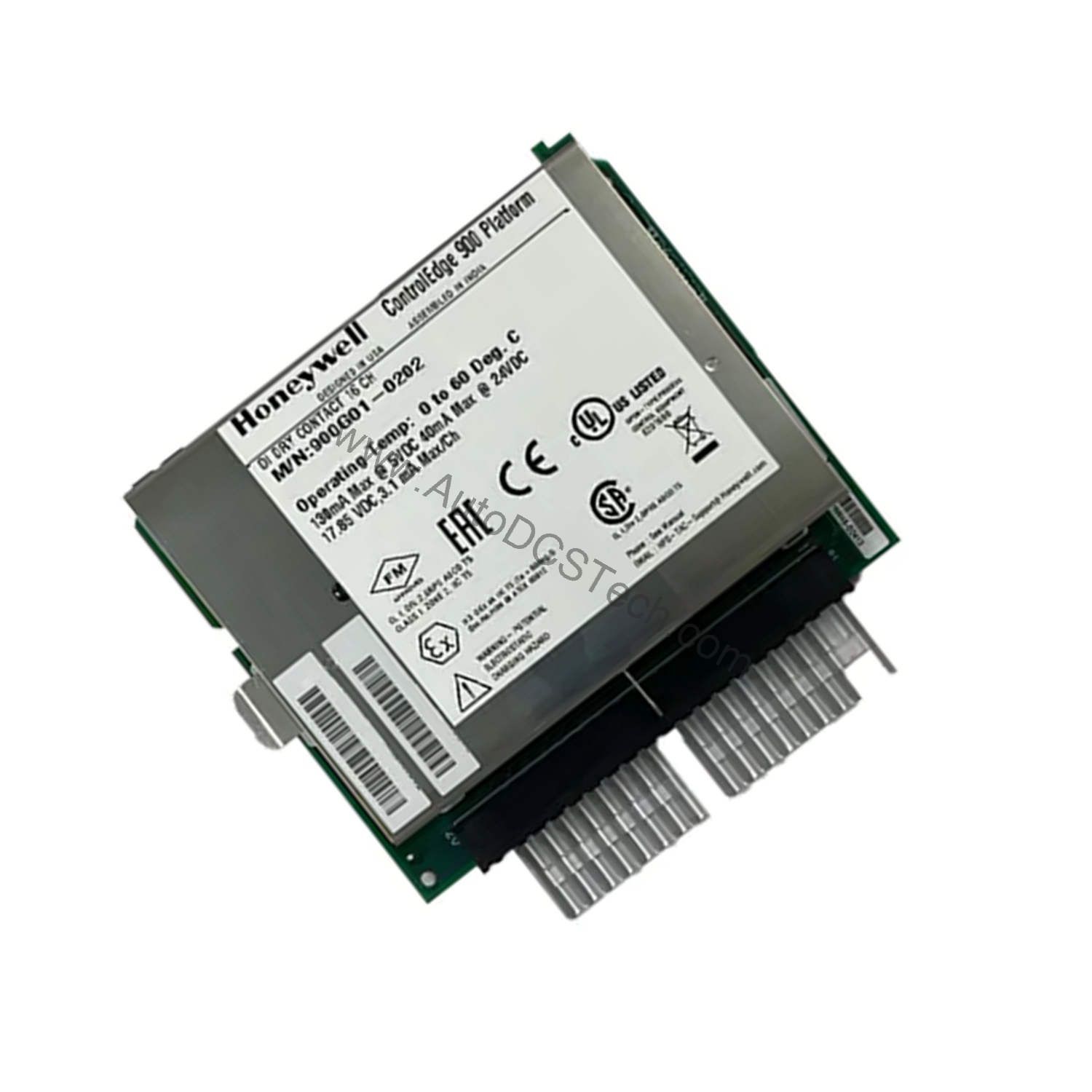

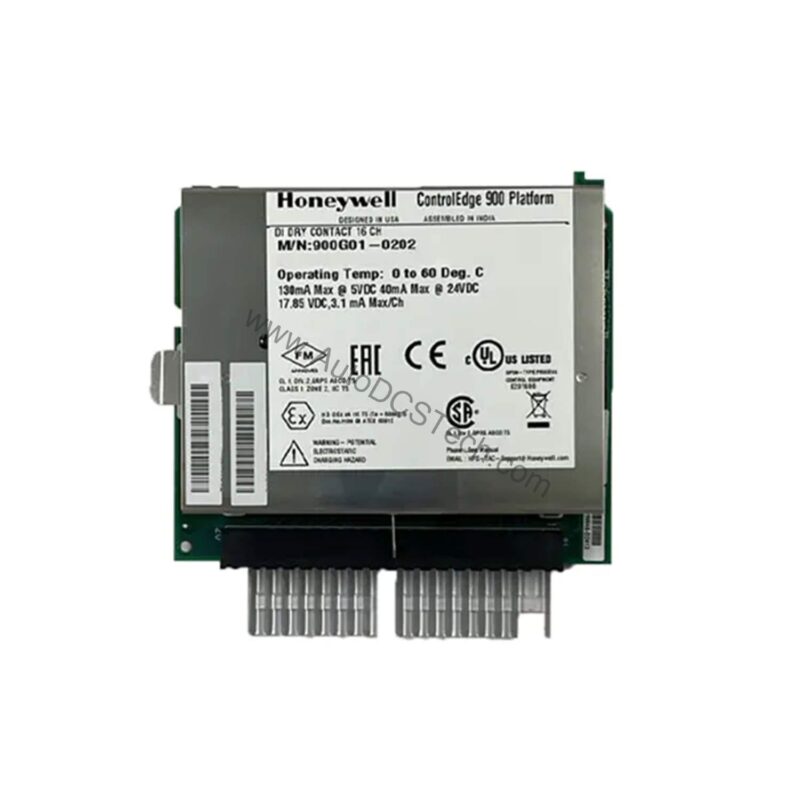

Honeywell 900G01-0202 Digital Input Module – 16-Channel Contact Type

Technical Specifications Breakdown

Key parameters for the 900G01-0202 are listed below for quick reference:

Industry Applications and Use Cases

For example, in a packaging line, photo-eye or proximity sensors often provide contact closures to signal product presence. The 900G01-0202's fast response time (4 ms max) ensures that high-speed events are captured without missing a beat. In material handling systems, limit switches on conveyor diverters can be wired directly to the module, and the four common terminals simplify field wiring for grouped sensors.

Installation and Setup Guidance

When installing the Honeywell 900G01-0202, ensure that the field wiring is properly isolated from the module to maintain galvanic isolation. The module is self-powered, so it provides 15 VDC to the external switching hardware. Connect the external contacts between the input terminal and a common terminal. Verify that the total contact resistance in the loop does not exceed 1000 ohms to guarantee reliable ON state detection. Use the green LED indicators on each channel to confirm the input status during commissioning.

Maintenance and Reliability

Regularly inspect the field wiring for loose connections or corrosion, as these can increase contact resistance beyond the 1000-ohm limit. Periodically test each channel by toggling the external switch and observing the corresponding green LED. The module's status LEDs provide immediate feedback: a blinking green LED indicates the module is being scanned, while a red LED signals a diagnostic condition. Keeping the module clean and free from excessive dust will help maintain reliable operation.

Digital Input Module for Reliable Contact Monitoring

Industrial processes often rely on simple contact closures to signal machine states, limit switches, or safety interlocks. The Honeywell 900G01-0202 digital input module provides a straightforward, self-powered solution for monitoring these discrete signals. Designed for contact-type inputs, this module simplifies wiring and reduces the need for external power supplies.

Compatibility and Integration

The 900G01-0202 is designed to work with Honeywell controllers that support digital input modules. It communicates over the backplane, and the controller's scan time affects the overall response. The module's logic allows the input state to be inverted when necessary, providing flexibility in how the field contacts are interpreted. Ensure that the controller's firmware supports this module type for seamless integration.

Selection Guide and Purchasing Advice

When selecting a digital input module, consider the number of inputs required, the type of field devices, and the response time needed. The Honeywell 900G01-0202 offers 16 single-ended inputs, making it a cost-effective choice for monitoring multiple contact closures. AutoDCSTech provides genuine Honeywell modules and can assist with compatibility checks. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting and Common Issues

If a channel does not respond, first check the external contact and wiring. Measure the resistance across the contact; it must be below 1000 ohms. If the resistance is higher, clean or replace the contact. If the red status LED is lit, a module diagnostic exists – check the controller's diagnostics log for specific error codes. Ensure that the module is properly seated in the backplane and that the controller is scanning the module (blinking green LED).
