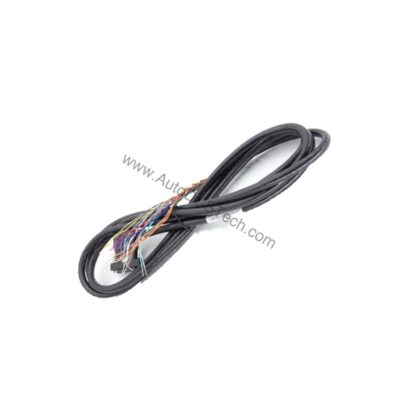

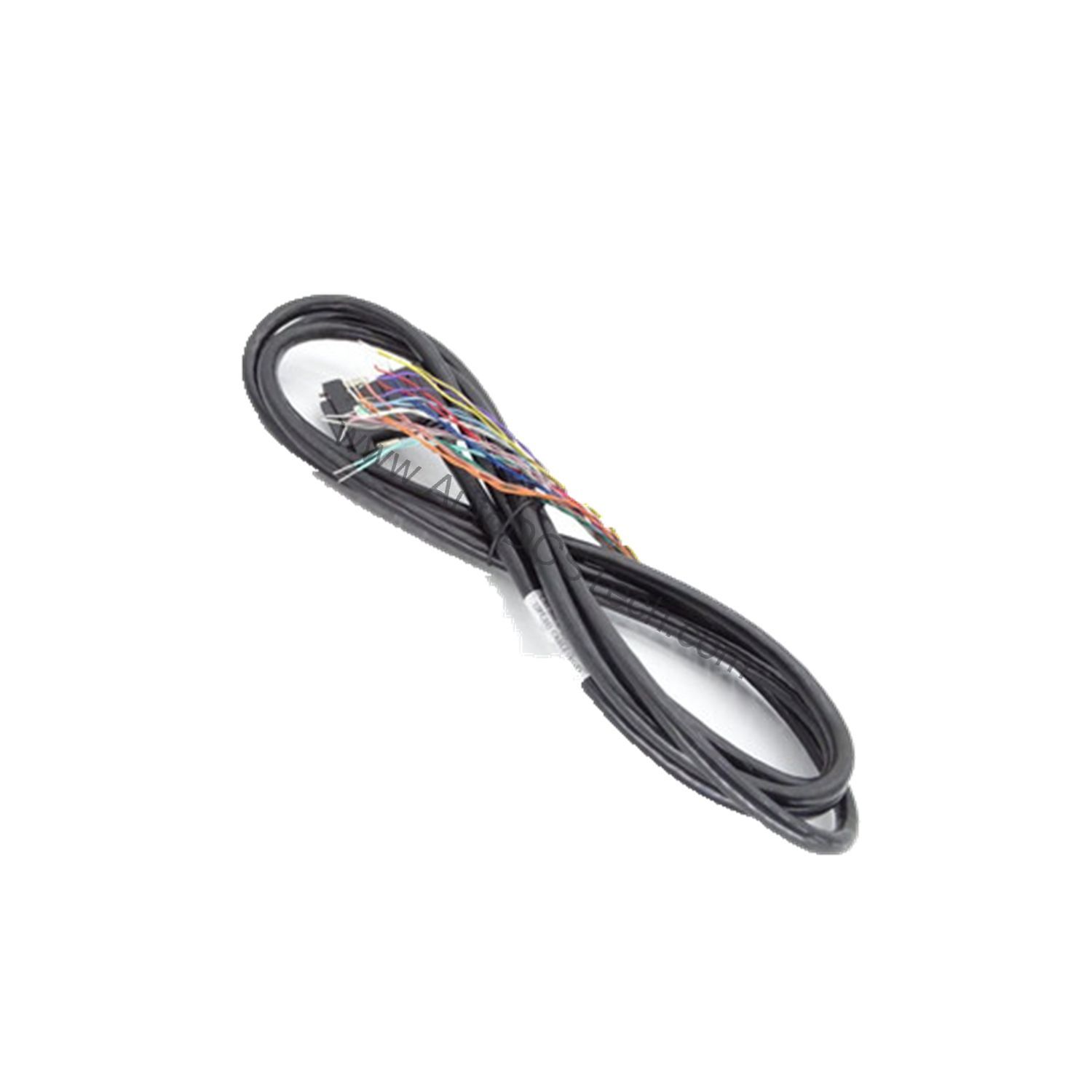

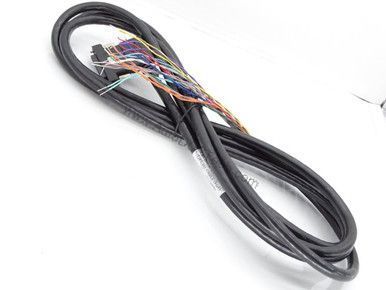

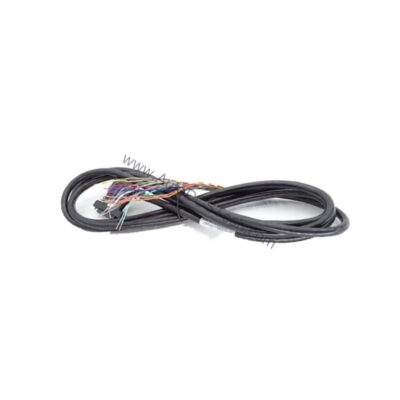

IC693CBL328 GE Fanuc Right Angle I/O Cable 3m for Series 90-30

Technical Specifications Breakdown

Key parameters for the IC693CBL328 are listed below for quick reference:

Industry Applications: Solving Space and Wiring Challenges

1. Panel Density Optimization

In modern control cabinets, every inch matters. The right angle connector of the IC693CBL328 reduces the depth required behind the I/O module to just 2.0 inches (connector clearance), compared to straight connectors that protrude further. This allows engineers to place high-density 32-point I/O modules (such as IC693MDL654, IC693MDL655, IC693MDL752, IC693MDL753) in shallower enclosures or closer to other components.

2. Simplified Field Wiring with Flying Leads

The flying leads on the field side eliminate the need for a mating connector at the terminal block. Users can directly terminate each #24 AWG solid-color wire (with black tracer) to individual terminal strips or PCB-based blocks. This reduces parts count and speeds up installation, especially in marshaling panels located up to 3 meters away from the PLC.

3. Error Reduction via Pre-Assembled Cables

Wiring errors are a common source of startup delays. The IC693CBL328 is wired end-to-end: Pin A1 on the PLC connector connects to Pin A1 on the flying leads, and so on. The color-coded wire guide helps technicians quickly identify each signal, minimizing miswiring and commissioning time.

Installation & Setup Guidance

When installing the IC693CBL328, first ensure the PLC is powered down. Align the 24-pin right angle connector with the Fujitsu FCN-365S024-AU compatible port on the I/O module. The connector snaps into place with an audible click. Route the cable away from heat sources and direct sunlight to maintain signal integrity. Because the cable is unshielded, avoid running it parallel to high-voltage AC lines or variable frequency drive (VFD) output cables to prevent electromagnetic interference (EMI). The flying leads can be trimmed to length if needed, but maintain the color code for future troubleshooting.

Maintenance & Reliability

Periodically inspect the connector for signs of corrosion or bent pins, especially in humid environments. Verify that the cable jacket is not chafed against sharp edges. Since the IC693CBL328 is discontinued/obsolete, stock a spare unit to avoid downtime. AutoDCSTech can help verify current availability.

Streamlined I/O Connections with the IC693CBL328

Industrial control panels often face space constraints and wiring complexity, especially when integrating high-density I/O modules. The IC693CBL328 from GE Fanuc addresses these challenges directly. This quick-connect I/O interface cable features a right angle 24-pin D-connector on the PLC side and flying leads on the field side, simplifying termination to user-supplied terminal blocks. Designed for the Series 90-30 PLC platform, it replaces the older straight connector cable IC693CBL315, offering improved clearance in tight enclosures.

Compatibility & Integration

This cable is compatible with GE Fanuc Series 90-30 high-density I/O modules that use a pair of Fujitsu 24-pin connectors. It also works with most IC694 series modules. Do not use it with the IC693 Axis positioning module. The cable replaces the straight connector IC693CBL315 and is not compatible with older 16-point modules using different pinouts.

Selection Guide & Purchasing Advice

When ordering the IC693CBL328, confirm your I/O module's connector type. For direct wiring to terminal blocks, this cable is ideal. If you need a straight connector or different length, contact AutoDCSTech for alternatives. As an obsolete part, verify stock before placing your order to avoid project delays.
