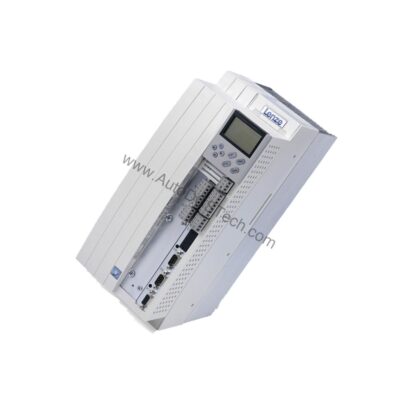

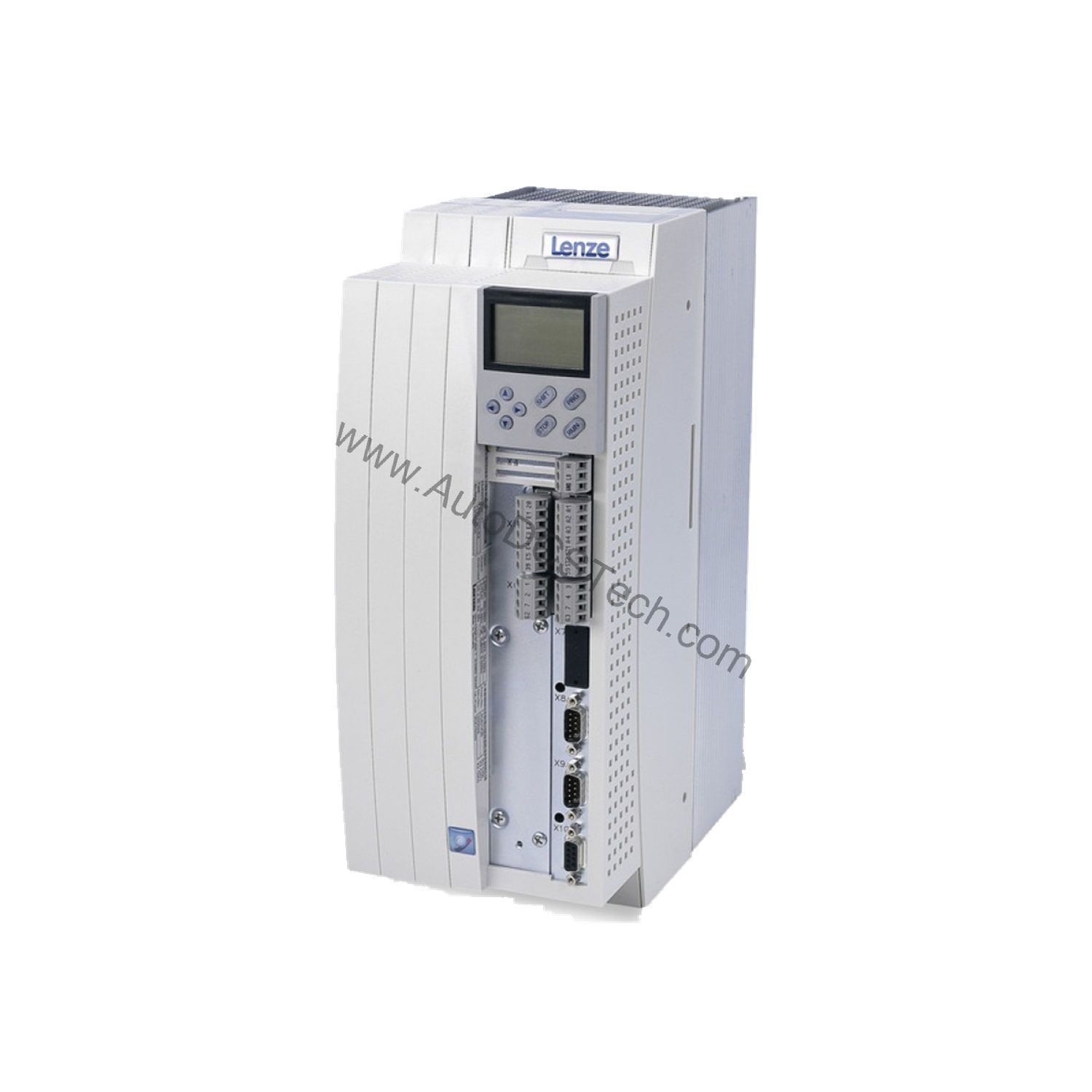

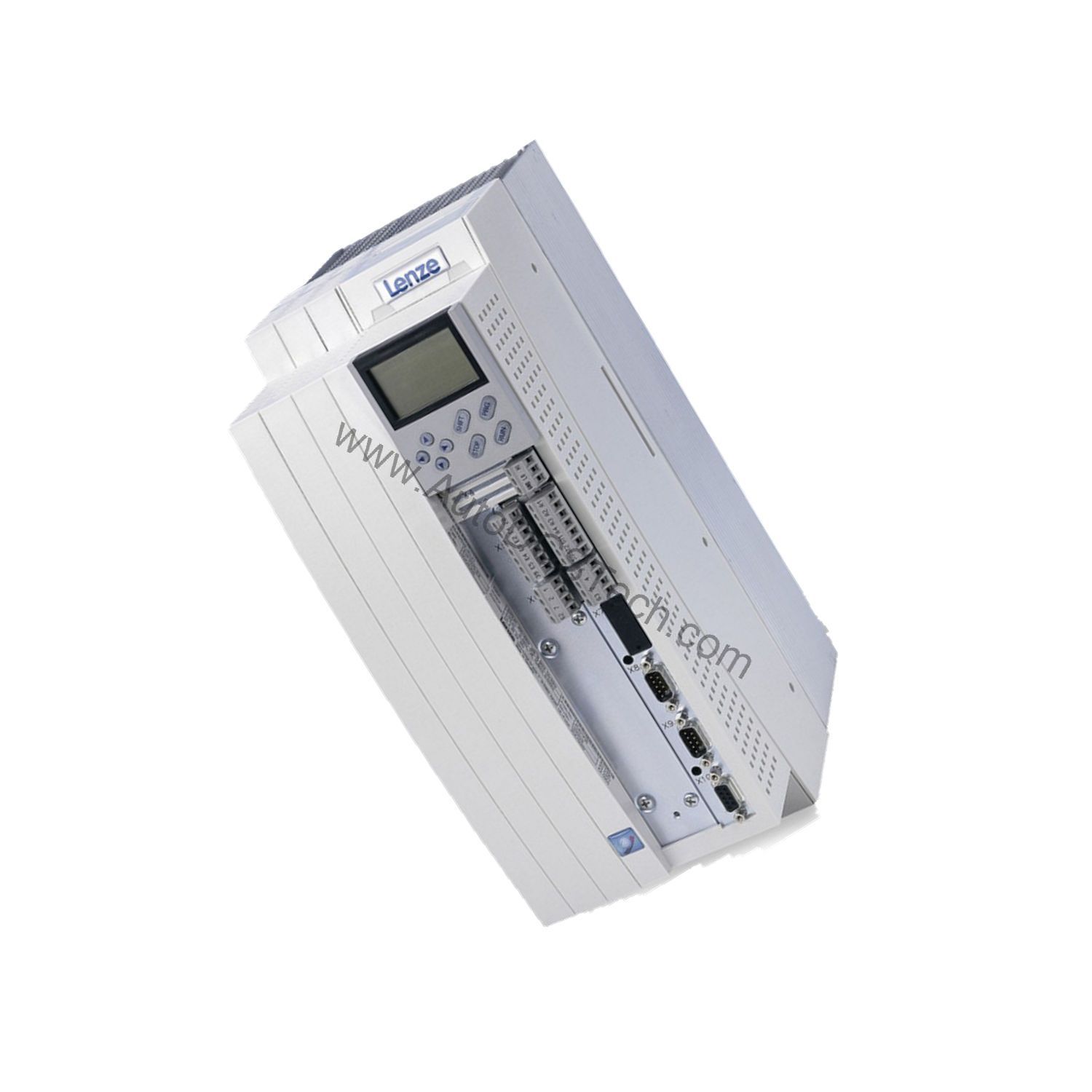

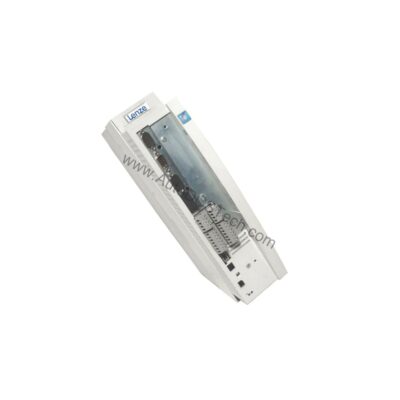

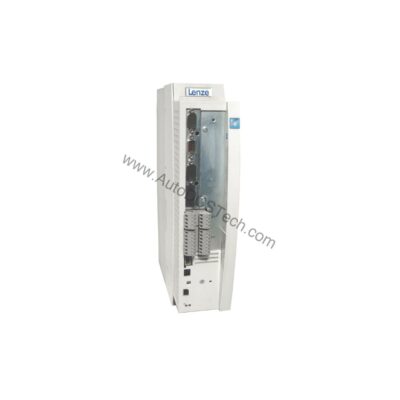

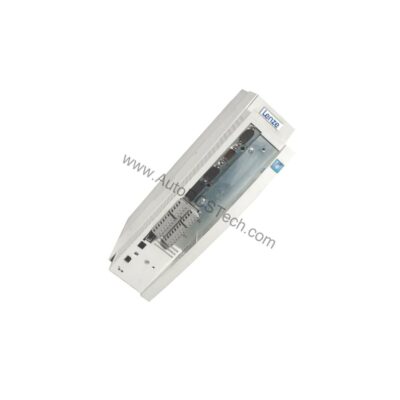

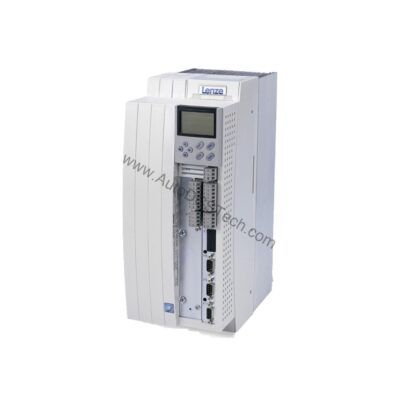

Lenze EVF9337-EV Frequency Inverter | Series 9300

Technical Specifications Breakdown

Key parameters for the EVF9337-EV are listed below for quick reference:

Industry Applications and Operational Benefits

This frequency inverter suits industries where uptime is critical. In material handling, it drives conveyor systems with consistent torque. In pump and fan applications, it offers precise speed control, reducing energy consumption. The 250 HP rating and 285A mains current provide ample power for large motors.

A key advantage is its wide supply voltage range of 340-456V AC. This flexibility allows integration into various electrical infrastructures without additional transformers. The IP20 rating ensures protection against solid objects larger than 12.5 mm, making it suitable for clean, indoor control cabinets.

Installation and Setup Guidance

Proper installation is essential for optimal performance. The EVF9337-EV mounts on the back panel of a control cabinet. Ensure adequate ventilation around the unit to maintain the operating temperature range of 0 °C to +50 °C. Verify that the supply voltage and frequency match the nameplate (340-456V AC, 45-65 Hz). Use appropriate cable sizes for the 285A mains current to prevent overheating.

Maintenance and Reliability

Regular inspection keeps the inverter operating reliably. Check for dust accumulation on heatsinks and fans. Confirm that all electrical connections remain tight. Since the unit is IP20, it is not waterproof; avoid exposure to moisture. Periodically verify that the ambient temperature stays within the specified limits.

Robust Power Conversion for Heavy-Duty Industrial Drives

Industrial motor control demands precision and reliability. The Lenze EVF9337-EV frequency inverter delivers both. It is designed for operations that require consistent performance under load.

Compatibility and Integration

The Series 9300 design follows standard industrial conventions. It does not support alternative DC supply voltages, focusing solely on AC input. This simplifies integration into existing AC motor control systems. The standard design ensures compatibility with common control cabinet layouts.

Selection Guide and Purchasing Advice

When selecting a frequency inverter, verify the motor power and current requirements. The EVF9337-EV supports up to 250 HP motors. Confirm the supply voltage available at your facility. For a reliable source, contact AutoDCSTech. They specialize in industrial automation parts and can confirm availability and lifecycle status.

Troubleshooting and Common Issues

If the inverter fails to start, check the incoming supply voltage and frequency. Ensure the control cabinet temperature is within 0 °C to +50 °C. Verify that the mains current does not exceed 285A. For persistent issues, consult the Lenze documentation or contact technical support. Do not attempt internal repairs without proper training.

Please verify current lifecycle status and availability with AutoDCSTech before ordering.
