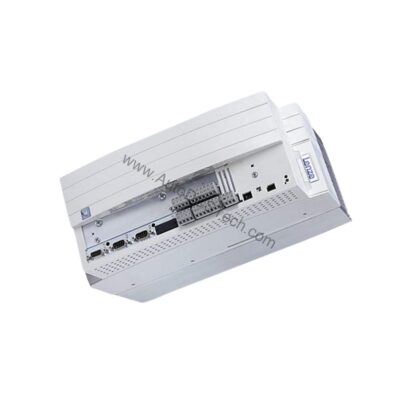

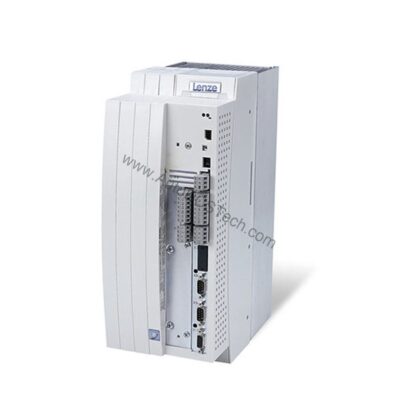

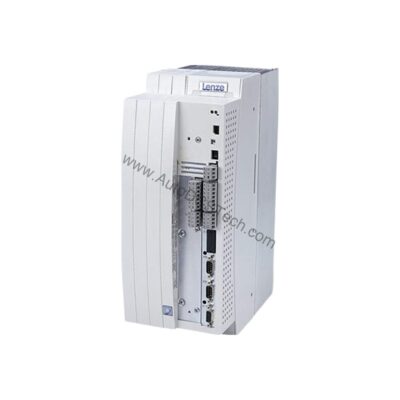

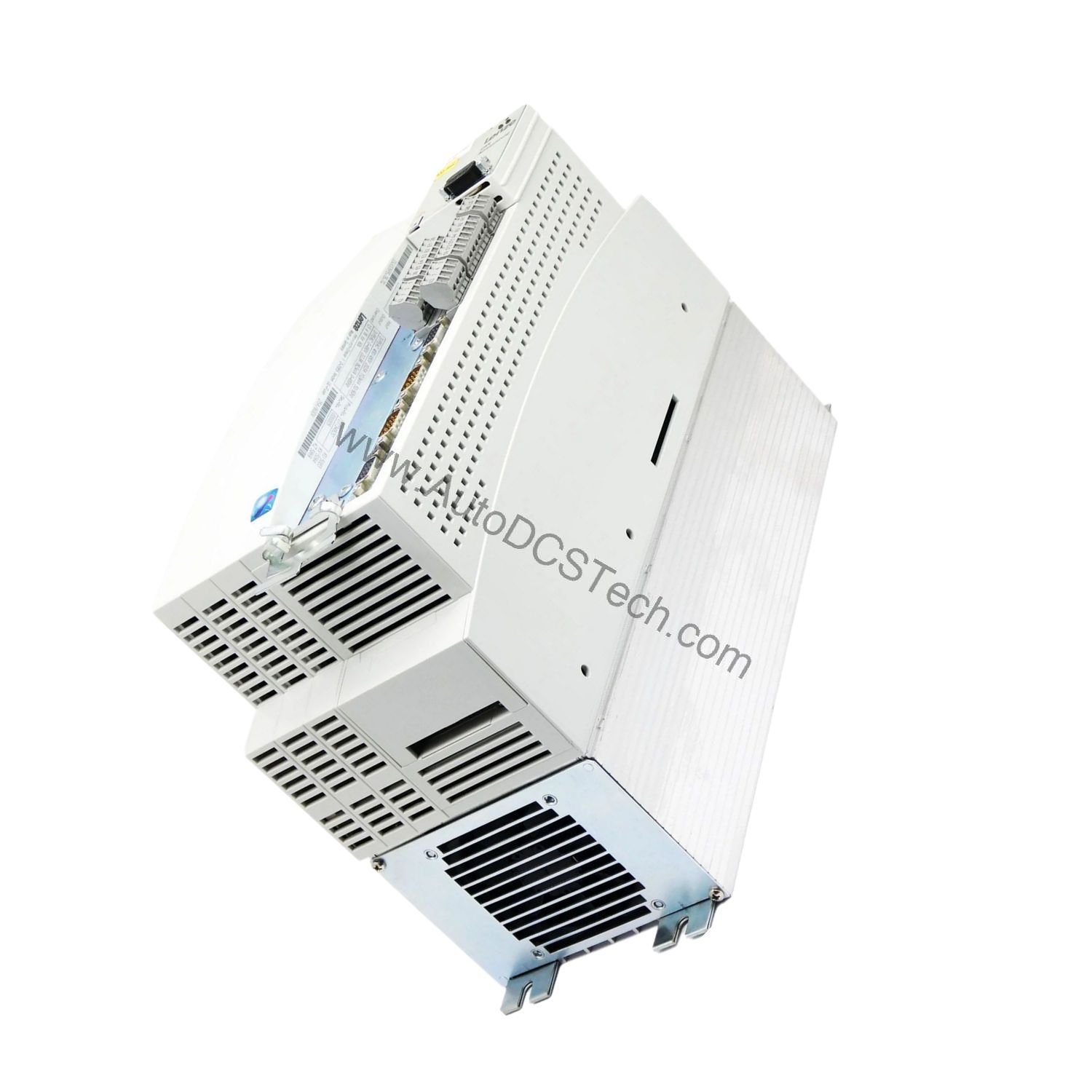

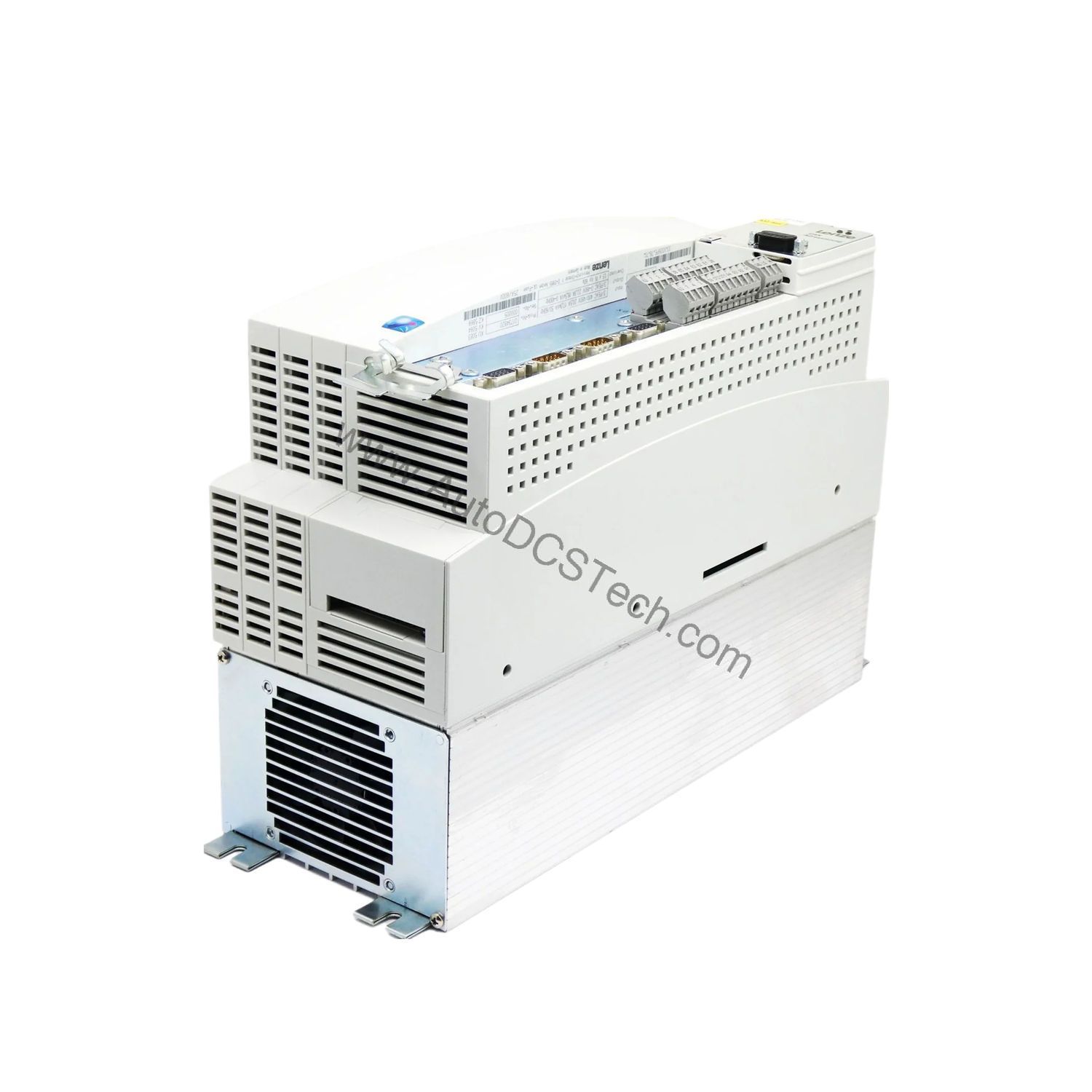

Lenze EVS9322-EPV004 Servo Controller 0.5 HP Position Controller

Servo Controller Overview

The Lenze EVS9322-EPV004 is a compact servo controller from the Series 9300 product line, engineered for precise position control in industrial automation. This unit is designed to operate with a 3-phase input supply, accepting a rated voltage range of 400 to 480 Volts AC. With a power rating of 0.5 horsepower, it is well-suited for small to medium servo motor applications that demand accurate positioning and reliable performance.

Its robust construction includes an IP20 protection class, making it suitable for installation in control cabinets and protected environments. The controller features an LED display for clear monitoring of operational parameters, and its panel mount design simplifies integration into existing systems.

A standout feature is the safe standstill function, which enhances operational safety by allowing the motor to halt in a controlled manner. This is particularly valuable in applications where unexpected motion could pose a risk to personnel or equipment.

Technical Specifications Breakdown

Key parameters for the EVS9322-EPV004 are listed below for quick reference:

Industry Applications

Its wide output frequency range (0 to 480 Hertz) allows flexible speed control, while the safe standstill function ensures safe operation during maintenance or emergency stops.

In a typical packaging line, this controller can manage the indexing of a servo motor with high accuracy, reducing waste and improving throughput. The vibration resistance of 9.81 m/s² (1G) on all axes ensures stable performance even in environments with moderate mechanical vibration.

Installation & Setup Guidance

When installing the EVS9322-EPV004, ensure the ambient temperature remains within -10 to 60°C. The unit is panel mount, so prepare a suitable cutout and secure it firmly. Connect the 3-phase supply (400-480VAC, 50-60Hz) to the input terminals, and wire the motor to the output terminals. Set the input frequency to match your local utility (50 or 60 Hz). The LED display provides feedback for configuration and diagnostics. Always follow local electrical codes and use appropriate fusing.

Maintenance & Reliability

Regularly inspect the controller for dust accumulation and ensure proper ventilation to maintain the operating temperature range. Check all electrical connections for tightness periodically. The IP20 rating means the unit is not sealed against water or dust ingress, so keep it in a clean, dry enclosure. The safe standstill function should be tested periodically to confirm proper operation.

Compatibility & Integration

As a position controller, the EVS9322-EPV004 is designed to work with Lenze servo motors and feedback devices. It supports a 3-phase input and provides a variable output voltage (0-480VAC) and frequency (0-480Hz), making it compatible with a range of servo motors. Integration with existing PLC systems is straightforward via standard control signals.

Selection Guide & Purchasing Advice

When selecting a servo controller, verify that the power rating (0.5 HP) matches your motor requirements. Consider the ambient temperature range and mounting method. The EVS9322-EPV004 from Lenze is a reliable choice for position control applications. AutoDCSTech offers this model with expert support. Contact us to confirm availability and lifecycle status before ordering.
