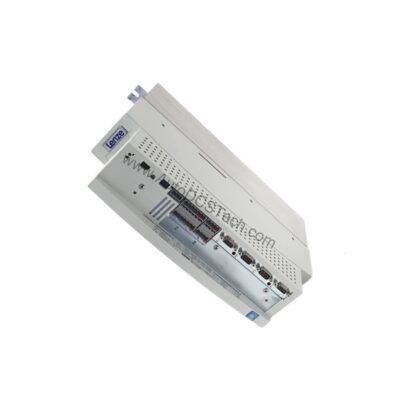

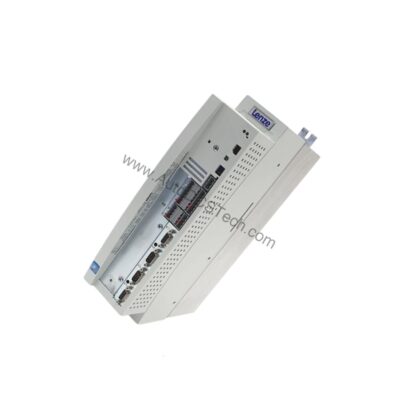

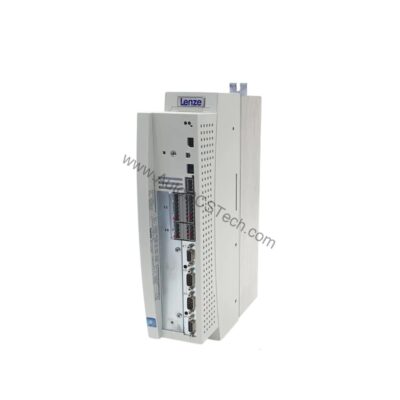

Lenze EVS9323-EP Servo Positioning Controller 1.5 kW 400/480V

Technical Specifications Breakdown

Key parameters for the EVS9323-EP are listed below for quick reference:

Industry Applications That Benefit

Typical uses include:

• Packaging machinery: Synchronize cutting, sealing, and labeling stations with high repeatability.
• Material handling: Control conveyor diverters and stackers with accurate positioning.
• Converting equipment: Maintain tension and registration in printing or laminating lines.

Its 400/480 VAC input makes it suitable for global installations where three-phase power is standard. The selectable output current (3.9 A at 8 kHz or 2.9 A at 16 kHz) allows tuning for torque vs. speed requirements.

Installation & Setup Guidance

Proper installation ensures optimal performance and longevity. Follow these steps:

1. Mounting: Install the built-in unit in a clean, dry enclosure with adequate airflow. Maintain clearance around the heatsink.
2. Wiring: Use shielded cables for encoder and control signals. Terminate shields at both ends to minimize EMI.
3. Supply Connection: Verify the supply voltage matches 3 AC 400/480 V. Use appropriate fusing and disconnects per local codes.
4. Configuration: Set motor parameters and feedback type via the commissioning software. Confirm direction and scaling before running.

Always refer to the Lenze manual for detailed wiring diagrams and parameter settings.

Maintenance & Reliability

Routine inspection keeps the controller operating reliably:

• Periodic checks: Inspect for dust accumulation, loose connections, and signs of overheating.
• Environmental control: Maintain ambient temperature within specified limits; ensure ventilation is unobstructed.
• Firmware updates: Keep the controller firmware current to benefit from bug fixes and enhancements.

Because this is a built-in unit, no user-serviceable parts are inside. Contact a qualified technician for any internal repairs.

Precision Motion Control for Demanding Automation

When production lines demand exact positioning and repeatable motion, the Lenze EVS9323-EP delivers the performance engineers rely on. This servo positioning controller from the 9300 series is designed for applications where accuracy and reliability are non-negotiable.

Compatibility & Integration

The EVS9323-EP is part of the Lenze 9300 series, designed for seamless integration with Lenze motors and drives. It supports standard analog and digital I/O for interfacing with PLCs and sensors. For advanced motion control, it can be networked using fieldbus modules (verify availability separately).

Selection Guide & Purchasing Advice

When selecting a servo controller, consider your motor's power rating, supply voltage, and required dynamic response. The EVS9323-EP matches 1.5 kW motors and 400/480 VAC systems. For higher power or different voltage, consult other 9300 series models.

AutoDCSTech stocks the Lenze EVS9323-EP and offers competitive pricing. Contact our team to confirm availability and lead times.

Troubleshooting & Common Issues

If the controller fails to operate correctly, check these common issues:

• No power: Verify supply voltage and fuses.
• Overcurrent trip: Check motor wiring and parameters.
• Position error: Inspect encoder feedback and mechanical coupling.
• Communication fault: Ensure fieldbus wiring and settings are correct.

For persistent faults, consult the Lenze diagnostic manual or contact AutoDCSTech for technical support.

Please verify current lifecycle status and availability with AutoDCSTech before ordering.
