Product Overview

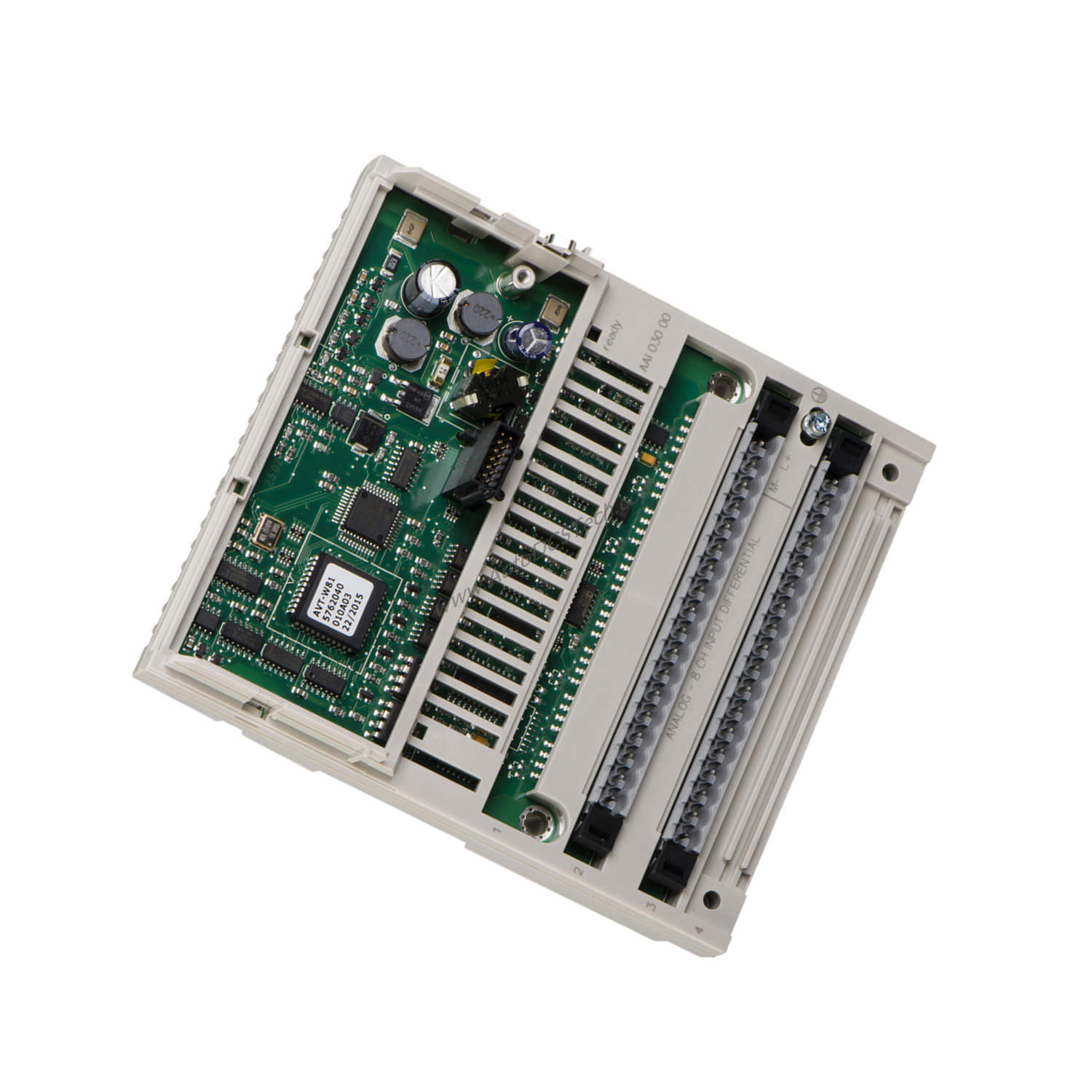

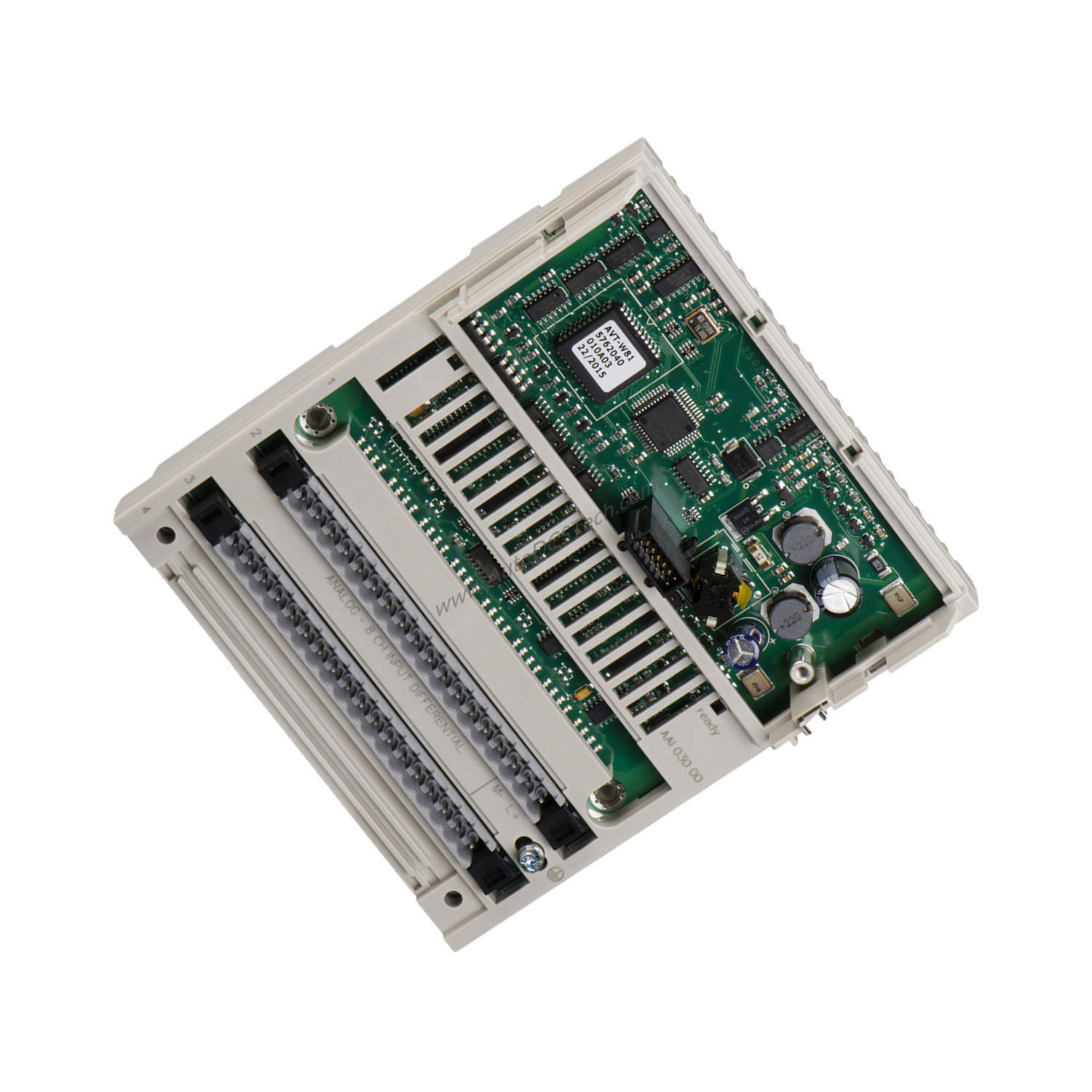

When signal integrity is critical in industrial automation, the Schneider 170AAI52040 provides a reliable solution for precise analog data acquisition. Part of the Modicon Momentum family, this analog input base delivers four differential channels with full 16-bit signed data format, ensuring high-resolution measurement in demanding environments.
Technical Specifications Breakdown
The 170AAI52040 processes analog inputs with a full 16-bit signed data format, enabling accurate representation of both positive and negative signal ranges. Data updates occur every 500 ms, balancing responsiveness with stability for process control applications.
Electrical isolation is a standout feature. Each channel is isolated from others at 400V DC for one minute, while isolation between channels and ground reaches 500V AC for one minute. Additionally, the channels and bus are isolated at 500 volts for one minute. This triple-layer isolation protects against ground loops and voltage transients, enhancing system reliability.
The unit operates from 0°C to 60°C and stores from -40°C to 85°C, with a maximum relative humidity of 95% without condensation. Internal reverse polarity protection adds an extra layer of safety during installation.
Industry Applications
In process manufacturing, the 170AAI52040 excels at monitoring temperature, pressure, or flow signals from differential transmitters. The 16-bit resolution captures subtle variations, while the 500 ms update time suits non-critical loops where noise rejection is prioritized over speed.
For utility monitoring in building management systems, the differential inputs reject common-mode noise, ensuring accurate readings even over long cable runs. The wide storage temperature range makes it suitable for installations in unconditioned spaces.
Installation & Setup Guidance
Mount the 170AAI52040 on a standard DIN rail within the Modicon Momentum I/O assembly. Ensure proper grounding per manufacturer guidelines to maximize isolation performance. Connect differential signals using shielded twisted-pair cable, observing polarity markings. Verify that the reverse polarity protection is active by checking the internal protection feature. No external fuses are required for input protection.
Maintenance & Reliability
Routine inspection should focus on verifying the integrity of isolation barriers and checking for condensation in high-humidity environments. The unit's 95% humidity tolerance reduces risk, but periodic visual checks are recommended. Given the robust isolation ratings, the 170AAI52040 typically requires minimal maintenance beyond cleaning dust from ventilation slots.
Compatibility & Integration
The 170AAI52040 integrates seamlessly with Modicon Momentum automation platforms. It communicates via the backplane bus, requiring no additional configuration for data format. The 16-bit signed data is compatible with most PLC processors in the Momentum family.
Selection Guide & Purchasing Advice
Before ordering, verify that your system requires differential analog inputs and that the 500 ms update time meets your process needs. The 170AAI52040 is available from SpareTechPLC, a trusted supplier of industrial automation parts. Please confirm current lifecycle status and availability with SpareTechPLC before purchasing.
Frequently Asked Questions
Q: What is the data format of the 170AAI52040?
A: The analog input base uses a full 16-bit signed data format, providing high-resolution measurement for both positive and negative signals.
Q: How often does the 170AAI52040 update its input values?
A: The update time is 500 ms, meaning new data is available every half second.
Q: What isolation is provided between channels?
A: Each channel is isolated from others at 400V DC for one minute, ensuring stable operation in electrically noisy environments.
Q: What is the operating temperature range?
A: The device operates from 0°C to 60°C and can be stored from -40°C to 85°C.
