Product Overview

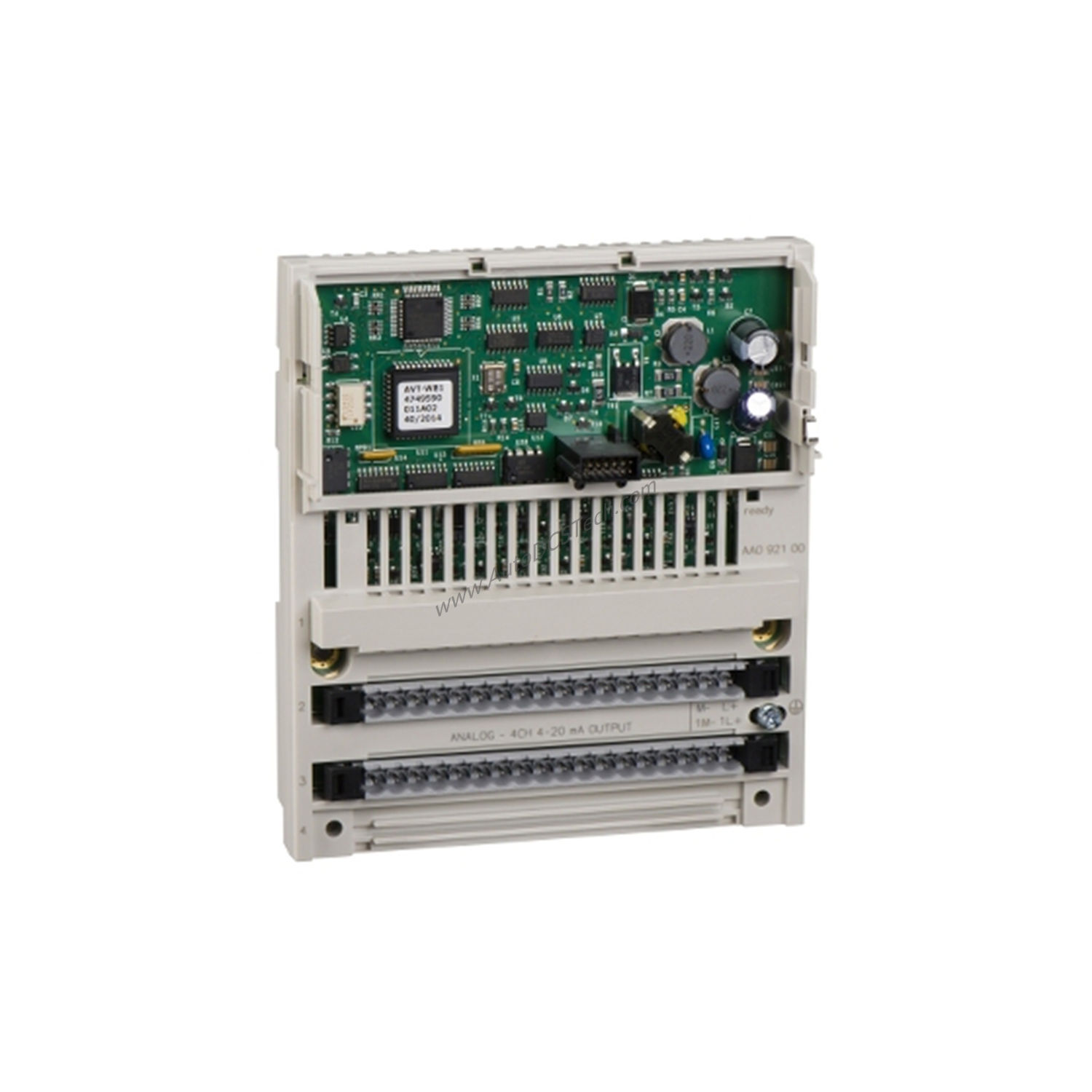

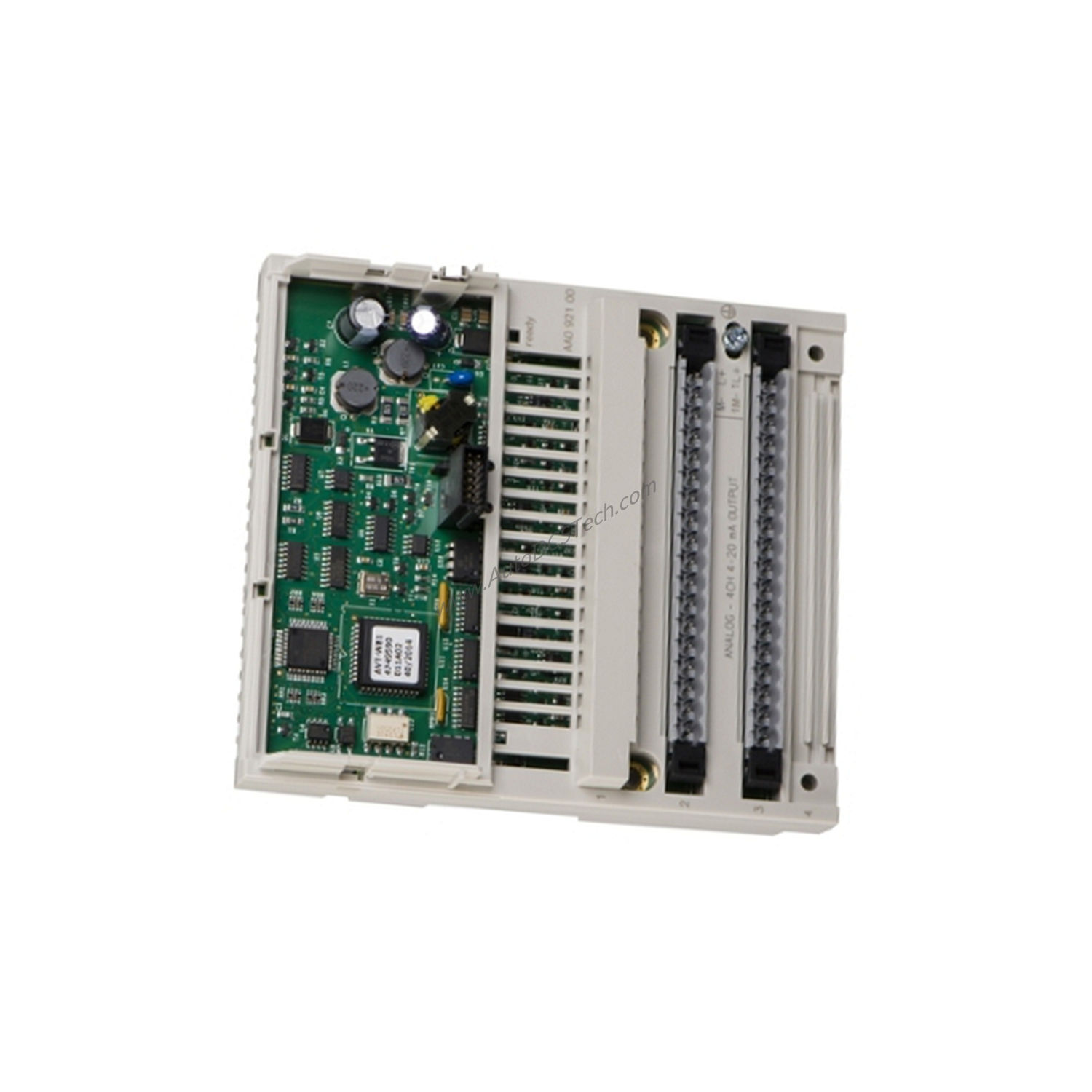

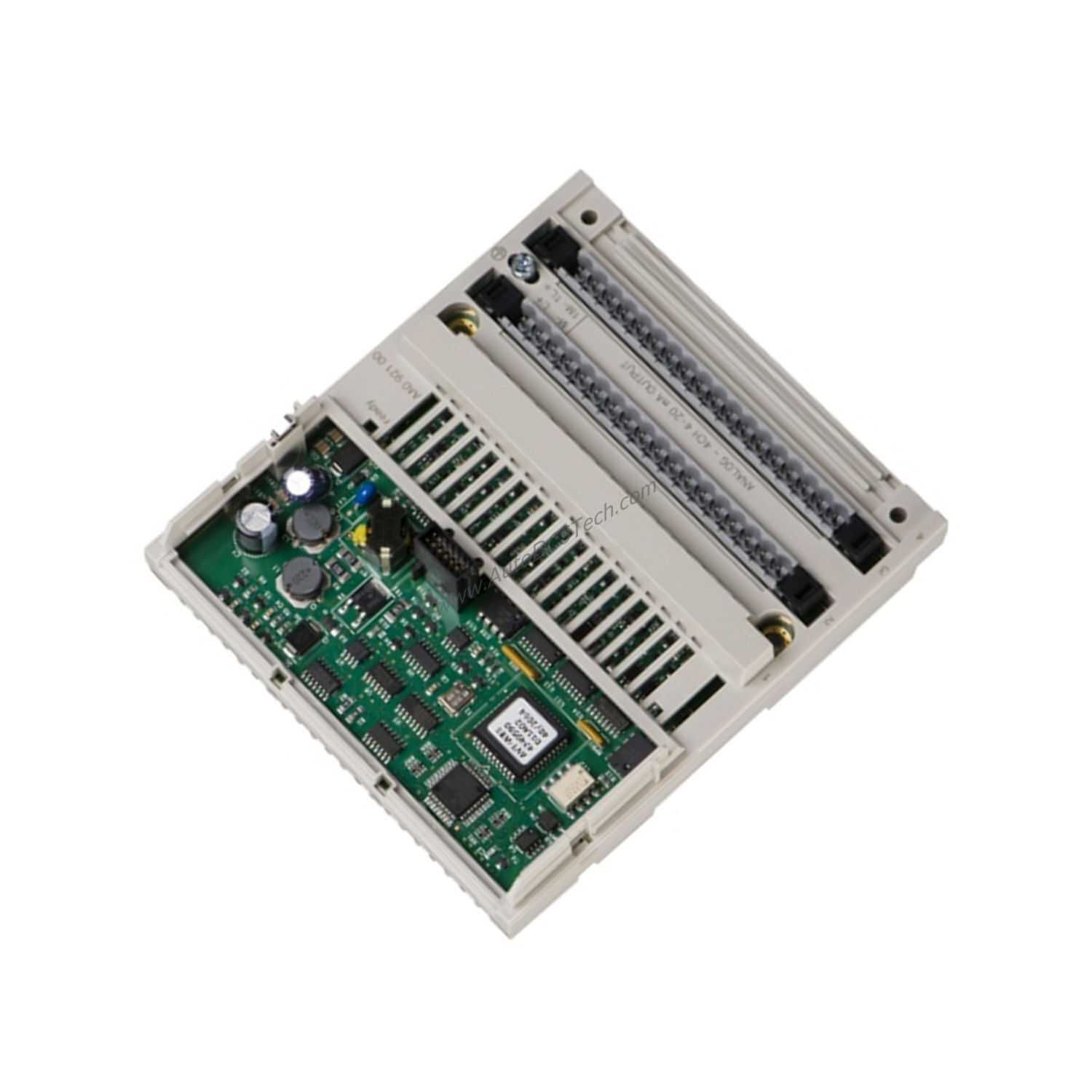

When your control system demands precise analog signal generation, the Schneider Electric 170AAO12000 delivers reliable performance. This analog output module is part of the Modicon Momentum series, designed to convert digital control commands into accurate analog signals for actuators, drives, and process instruments. With four independent output channels, it handles both current and voltage signals, making it a versatile choice for industrial automation.
Technical Specifications Breakdown
The 170AAO12000 offers a 16-bit data format for high-resolution signal generation. Its output resolution reaches 12 bits with sign for voltage signals when the load is at least 1 kohm, and 12 bits with sign for current signals when the load is 0.6 kohm or less. This ensures precise control across a range of field devices.
The module supports two signal types: current from 0 to 20 mA and voltage from -10V to 10V. This dual capability allows connection to various actuators and transducers without additional signal converters. The update time is just 2 ms, enabling fast response in closed-loop applications.
Power requirements are straightforward: a 24 VDC supply powers the module. Current consumption is 150 mA for the 24 V DC actuator supply and 530 mA for the 24 V DC base. Maximum power dissipation is 8.5 W, keeping thermal management simple in crowded cabinets. The module also includes four LEDs for local channel status indication, aiding quick diagnostics.
Industry Applications
In process control environments, the 170AAO12000 excels at driving analog output signals to control valves, variable frequency drives, and chart recorders. For example, in a water treatment plant, it can send 4-20 mA signals to modulate chemical dosing pumps, ensuring precise additive flow. The 2 ms update time supports fast-acting loops where stability is critical.
In manufacturing, the module can output -10V to 10V signals to servo drives or analog meters. Its 16-bit data format provides fine granularity for positioning or speed control. The compact Momentum form factor allows easy integration into existing control panels without major rewiring.
Installation & Setup Guidance
Mount the 170AAO12000 onto a Modicon Momentum base (sold separately) following standard DIN rail or panel mounting procedures. Ensure the 24 VDC power supply is properly rated and connected to the base unit. Use shielded twisted-pair cables for analog outputs to minimize electrical noise interference. Keep cable lengths as short as practical and route them away from high-voltage power lines.
Configure the module using your Momentum controller's programming software. Set each channel for either current (0-20 mA) or voltage (-10V to 10V) mode as required by the connected device. Verify the load impedance: for voltage outputs, the load should be at least 1 kohm; for current outputs, the load should be 0.6 kohm or less. Incorrect loading can affect accuracy.
Maintenance & Reliability
The 170AAO12000 is designed for long-term industrial use with no moving parts. Periodically inspect the module for dust accumulation and ensure ventilation around the enclosure. Check that all wiring connections remain tight and free from corrosion. The LED indicators provide immediate visual feedback on channel status, helping identify faults quickly. Regular inspection of the power supply voltage (24 VDC) ensures consistent operation.
Compatibility & Integration
This module integrates seamlessly with the Modicon Momentum automation platform. It communicates over the Momentum backplane, requiring no additional configuration for data exchange with the controller. The 170AAO12000 is compatible with Momentum bases that support analog I/O modules. For system expansion, multiple modules can be added to a single base, up to the base's slot capacity.
Selection Guide & Purchasing Advice
Before purchasing the 170AAO12000, verify that your Momentum base supports analog output modules and that the power supply can handle the additional current draw (150 mA for actuator supply, 530 mA for base). Confirm the required signal type and number of channels match your application. SpareTechPLC stocks this module and can provide current availability and lifecycle status. Contact our team for assistance with compatibility or to discuss replacement options for older systems.
Frequently Asked Questions
Q: What is the output resolution of the 170AAO12000?
A: The output resolution is 12 bits with sign for voltage signals (load >= 1 kohm) and 12 bits with sign for current signals (load <= 0.6 kohm).
Q: Can the 170AAO12000 output both current and voltage simultaneously?
A: Yes, each of the four channels can be independently configured for either 0-20 mA current or -10V to 10V voltage output.
Q: What is the update time of this module?
A: The update time is 2 ms, suitable for applications requiring fast analog output response.
Q: What power supply does the 170AAO12000 require?
A: It requires a 24 VDC power supply. Current consumption is 150 mA for the actuator supply and 530 mA for the base.
Q: How do I know if a channel is active?
A: Each channel has a dedicated LED on the module front panel for local status indication.
