Introduction

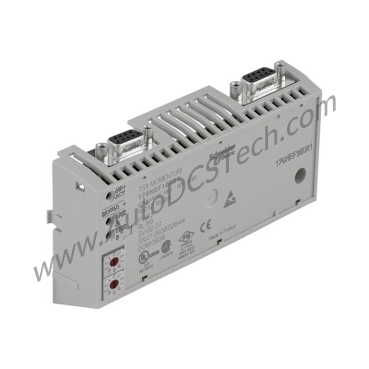

In the evolving landscape of industrial automation, reliable communication between controllers and field devices is the backbone of efficient operations. The Schneider 170PNT11020 Communication Adapter addresses this need by providing a robust Modbus Plus interface for Modicon Momentum platforms. As factories move toward more distributed control architectures, this adapter enables seamless peer-to-peer and token bus networking, ensuring data integrity across extended distances.
Technical Specifications Breakdown
Communication Protocol and Speed
The 170PNT11020 operates on the Modbus Plus protocol with a baud rate of 1 megabit per second. This speed supports real-time data exchange for demanding applications. Its access method combines token bus and peer-to-peer (P2P) configurations, allowing flexible network topologies.
Network Capacity and Distance
Each segment can accommodate 0 to 31 devices, with a total of 0 to 64 devices across all segments. The maximum cable distance between devices reaches approximately 16,404 feet (5,000 meters) when using a repeater, making it suitable for large-scale installations.
Environmental Durability
With an IP20 protection class, the adapter guards against dust and accidental contact. It operates in ambient temperatures from 0 to 60°C and stores safely from -40 to 85°C in non-condensing environments. The unit is rated for altitudes below 16,404 feet (5,000 meters).
Connectivity and Compliance
Two 9-pin D-Sub connectors provide redundant connections to the Modbus Plus network. The device complies with UL, CSA, and CE safety standards, ensuring reliability in industrial settings.
Industry Applications
Manufacturing Plant Networking
In automotive assembly lines, the 170PNT11020 connects PLCs and remote I/O modules over long distances. Its 1 Mbit/s speed ensures timely data from sensors and actuators, reducing downtime.
Process Control Systems
For chemical or pharmaceutical facilities, the adapter's redundant D-Sub connectors enhance network reliability. The token bus access method prevents data collisions, critical for batch process control.
Installation & Setup Guidance
Mount the adapter on a DIN rail within the Modicon Momentum base. Connect twisted pair cables to the two 9-pin D-Sub connectors—one for the primary network, the other for redundancy. Ensure the ambient temperature stays between 0 and 60°C and avoid condensation. Use repeaters for segments exceeding 16,404 feet.
Maintenance & Reliability
Periodically inspect the D-Sub connectors for corrosion or loose connections. Keep the IP20 enclosure free of dust buildup. Given its wide storage temperature range, store spare units in controlled environments. Routine checks of the green and red LEDs (MB+ACT, ERR A, ERR B) help diagnose network health quickly.
Compatibility & Integration
The 170PNT11020 integrates with the Modicon Momentum automation platform and works as a bus manager for Premium and Quantum PLCs. It supports multidrop topology with device connection via extension or tap-off cables. The adapter draws power from the I/O base, simplifying wiring.
Selection Guide & Purchasing Advice
Before ordering, verify your network requires Modbus Plus protocol and that your PLC supports token bus access. The 170PNT11020 is a lightweight unit (1.00 lbs) with package dimensions of 10.2 x 7.09 x 2.2 inches. At SpareTechPLC, we stock this adapter ready for shipment. Contact our team to confirm availability and compatibility with your existing Modicon Momentum system.
Frequently Asked Questions
Q: What is the maximum number of devices I can connect with the 170PNT11020?
A: You can connect 0 to 31 devices per segment and up to 64 devices across all segments.
Q: Does the 170PNT11020 support redundant network connections?
A: Yes, it features two 9-pin D-Sub connectors for primary and redundant Modbus Plus network connections.
Q: What is the operating temperature range for this adapter?
A: It operates from 0 to 60°C in non-condensing environments.
Q: Can I use this adapter with Premium or Quantum PLCs?
A: Yes, the 170PNT11020 serves as a bus manager for Premium and Quantum PLCs within the Modicon Momentum platform.
Q: What certifications does the 170PNT11020 hold?
A: It complies with UL, CSA, and CE safety standards.
