Technical Specifications Breakdown
Key parameters for the ATV71HD75N4 are listed below for quick reference:
| Feature | Specification |
|---|---|
| Product Type | Variable Speed Drive |
| Motor Power | 75 kW (100 HP) |
| Input Voltage | 380-480 VAC |
| Phase | 3-phase |
| Input Frequency | 50/60 Hz |
| Nominal Switching Frequency | 2.5 kHz |
| Operating Temperature | -10 to 50 °C |
| IP Rating | IP20 |
| Net Weight | 97.003 lb(US) (44 kg) |
Robust Power Control for Demanding Applications

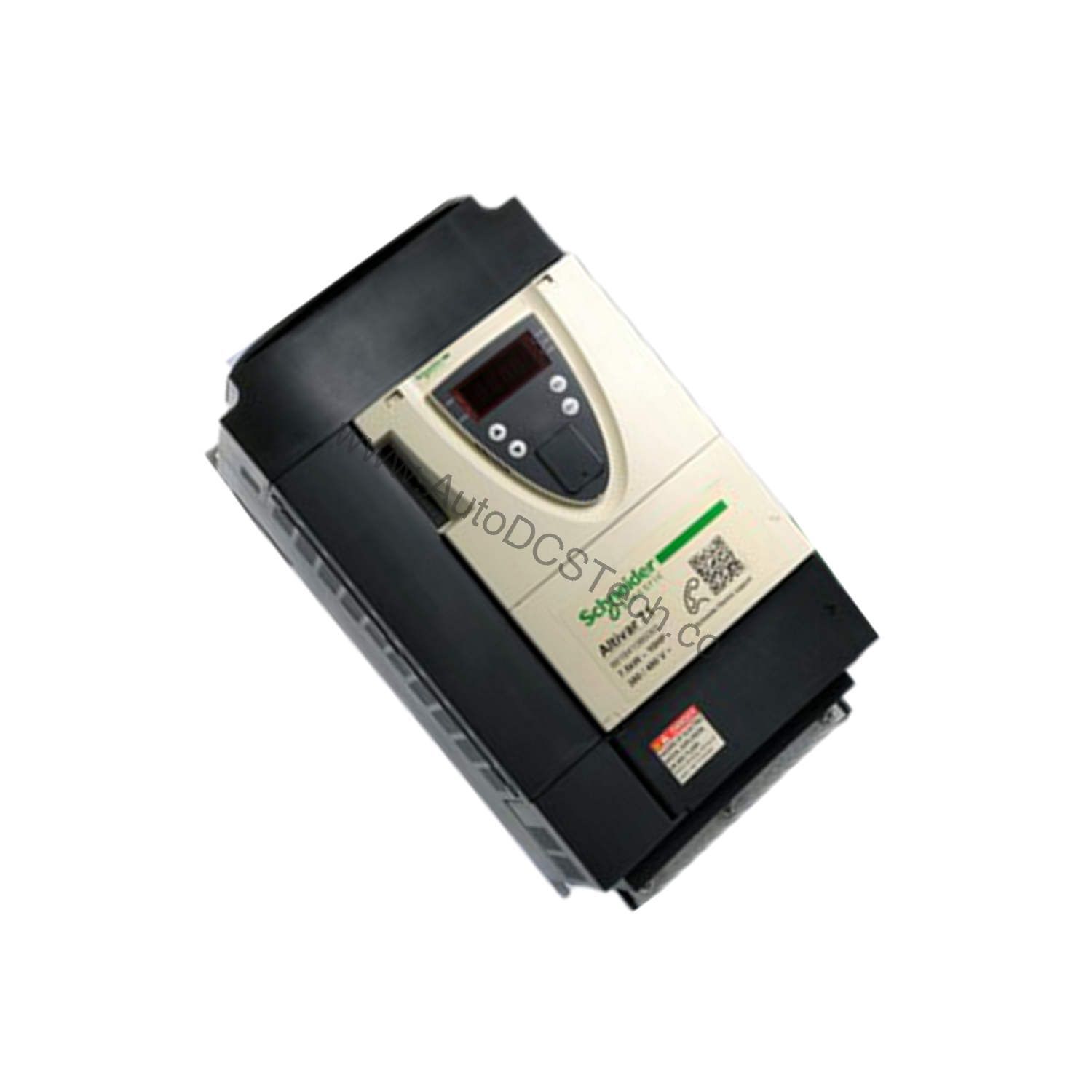

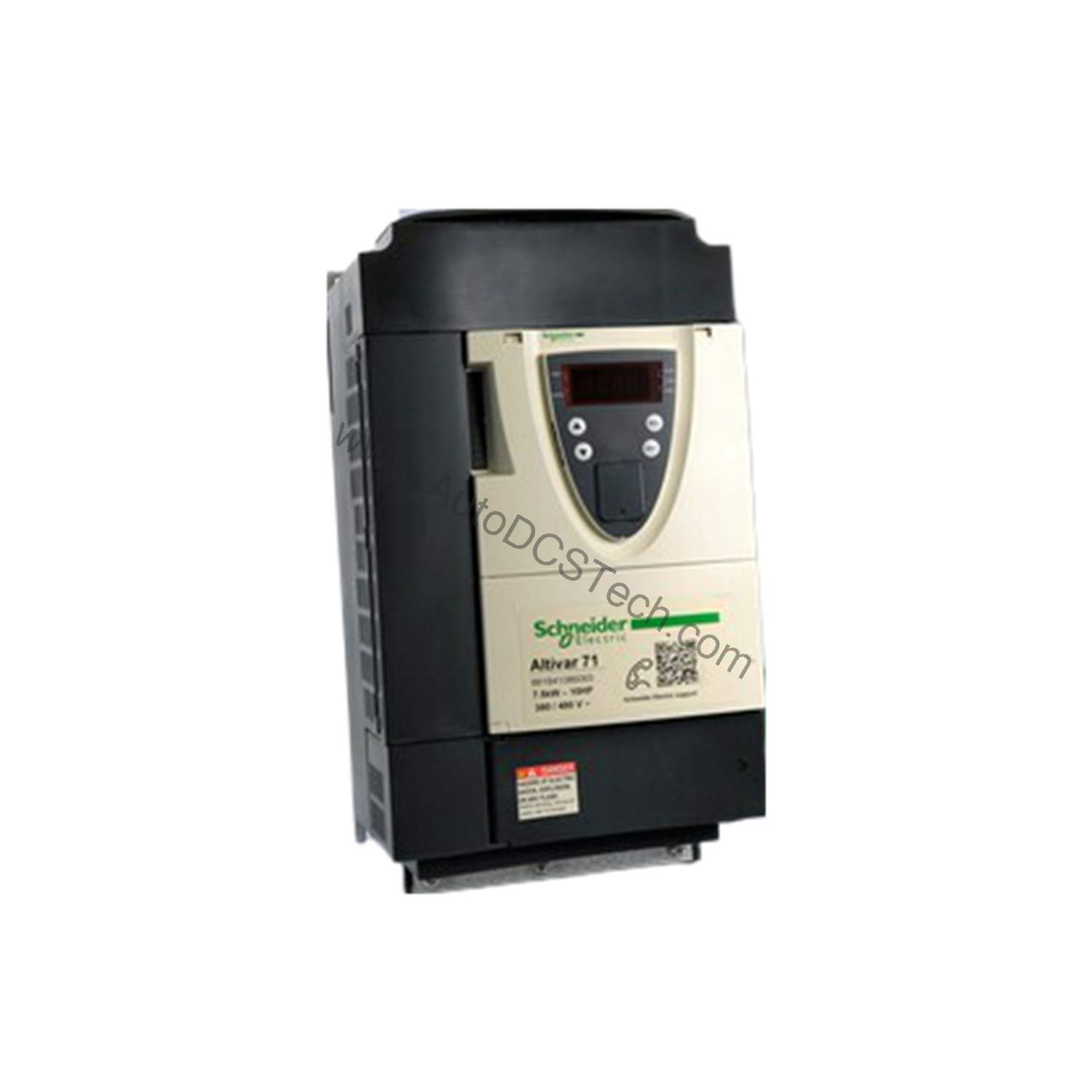

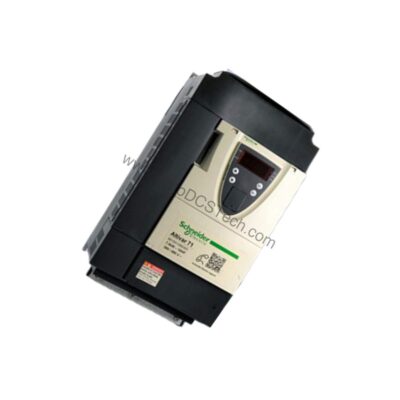

The Schneider Electric ATV71HD75N4 is a variable speed drive from the Altivar 71 series, engineered to handle complex, high-power machines. This unit delivers motor power up to 75 kW (100 HP) and operates on a three-phase system with an input voltage of 380-480 VAC. With an integrated EMC filter and a heat sink assembly style, it ensures reliable performance and reduced electrical interference.
Industry Applications
Its robust 75 kW output and wide voltage range make it suitable for heavy-duty industrial processes where precise speed control and energy efficiency are critical. The integrated EMC filter helps maintain system integrity in electrically noisy environments.
Installation & Setup Guidance
Mount the unit vertically within +/- 10 degrees to ensure proper cooling. Use the specified tightening torques for power terminals (362.9 lbf.in) and control terminals (5.3 lbf.in). For maximum cable lengths, shielded cables can run up to 100 m, and unshielded up to 200 m. Ensure the ambient air temperature remains between -10 and 50 °C without derating.
Maintenance & Reliability
Periodically inspect the heat sink for dust accumulation to maintain thermal performance. The IP20 enclosure protects against solid objects larger than 12 mm, so install in a clean, dry environment. Check the integrated EMC filter and connections during routine maintenance to prevent signal degradation.
Compatibility & Integration
The ATV71HD75N4 supports Modbus and CANopen communication protocols via RJ45 and SUB-D 9 connectors. It is compatible with various option cards, including communication cards for EtherNet/IP, Profibus DP, and DeviceNet, as well as I/O extension and encoder interface cards. This flexibility allows seamless integration into existing automation networks.
Selection Guide & Purchasing Advice
When selecting this drive, verify your motor power requirements and input voltage compatibility. AutoDCSTech offers the ATV71HD75N4 with detailed specifications to support your purchasing decision. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
Availability & Condition at AutoDCSTech
| Part Number | ATV71HD75N4 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | France |
