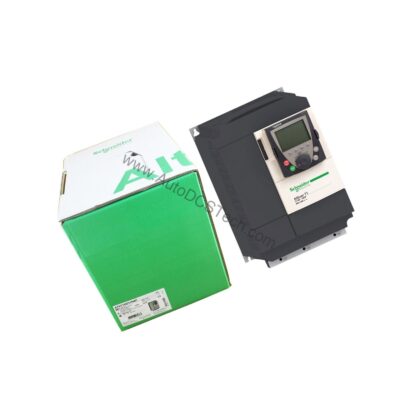

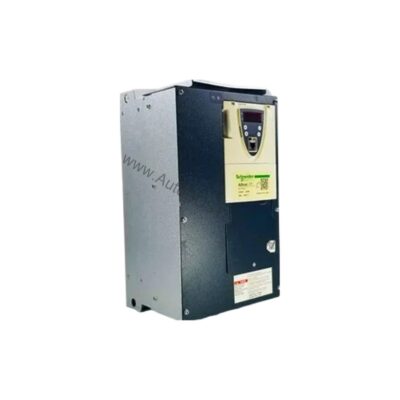

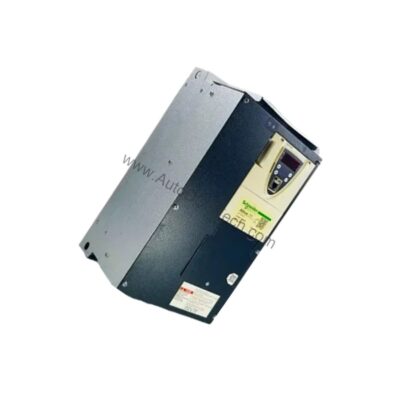

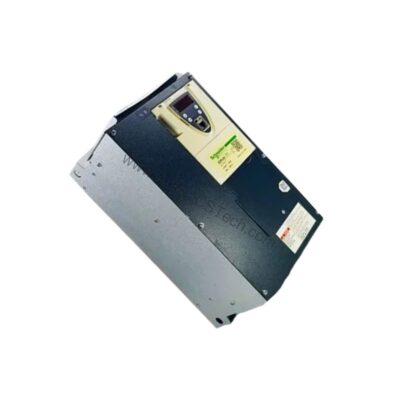

Optimizing Motor Control with the Schneider ATV71HU15N4
Industrial operations often face the challenge of managing motor performance under variable loads while maintaining energy efficiency and reducing downtime. The Schneider Electric ATV71HU15N4 variable speed drive from the Altivar 71 series addresses these demands with a robust design tailored for complex, high-power machines.
Technical Specifications Breakdown
Key parameters for the ATV71HU15N4 are listed below for quick reference:
| Feature | Specification |
|---|---|
| Power Rating | 1.5 kW / 2 HP |
| Input Voltage | 380 to 480 VAC |
| Phases | 3-phase |
| Output Frequency Range | 0.1 to 599 Hz |
| Switching Frequency | 4 kHz (adjustable 1...16 kHz) |
| Output Current | 3.4 A at 460V, 4.1 A at 380V |
| Max Transient Current | 6.2 A for 60 s, 6.8 A for 2 s |
| EMC Filter | Integrated |
| Motor Control Profile | Vector control without speed feedback |
| Weight | 6.6 lb (3 kg) |
Industry Applications: Solving Real-World Problems
For example, in a material handling system, the ATV71HU15N4's sensorless flux vector control maintains consistent torque even at low speeds, reducing mechanical stress and improving product quality.
Installation & Setup Guidance
Proper installation ensures reliable operation. Mount the drive vertically within ±10 degrees to allow adequate airflow through the heat sink. Use shielded cable up to 50 m or unshielded up to 100 m for motor connections. The power supply must be 380...480 VAC with a prospective line Isc of 5 kA. Tighten power terminals to 12.4 lbf.in and control terminals to 5.3 lbf.in. The drive supports both synchronous and asynchronous motors, with configurable acceleration/deceleration ramps from 0.01 to 9000 s.
Maintenance & Reliability
Routine inspection of the cooling fan and heat sink is recommended to prevent overheating. The drive operates reliably in ambient temperatures from -10 to 50 °C without derating, and up to 1000 m altitude. For higher altitudes, derate current by 1% per 100 m. The IP20 protection level suits clean, dry indoor environments.
Compatibility & Integration
The ATV71HU15N4 communicates via Modbus (RJ45 on front face and terminal) and CANopen (SUB-D 9 on RJ45). This enables seamless integration with PLCs and SCADA systems. Optional communication cards add Profibus DP, EtherNet/IP, or DeviceNet connectivity. The drive also includes 2 analog inputs, 1 analog output, and 7 discrete inputs for flexible I/O expansion.
Selection Guide & Purchasing Advice
When selecting a variable speed drive, consider the motor power rating and required control precision. AutoDCSTech offers this model with verified inventory and fast shipping. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
Availability & Condition at AutoDCSTech
| Part Number | ATV71HU15N4 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | France |
