Product Introduction

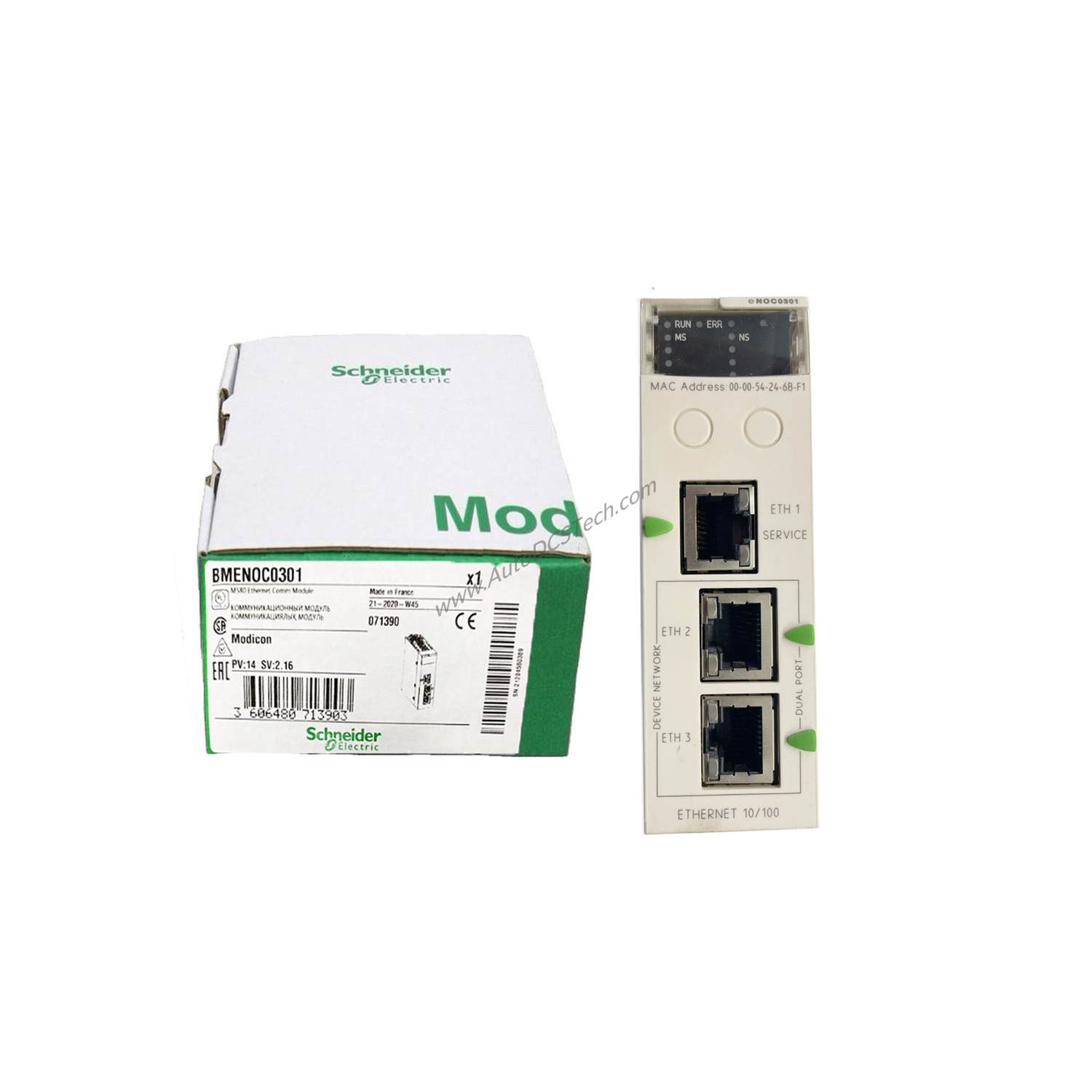

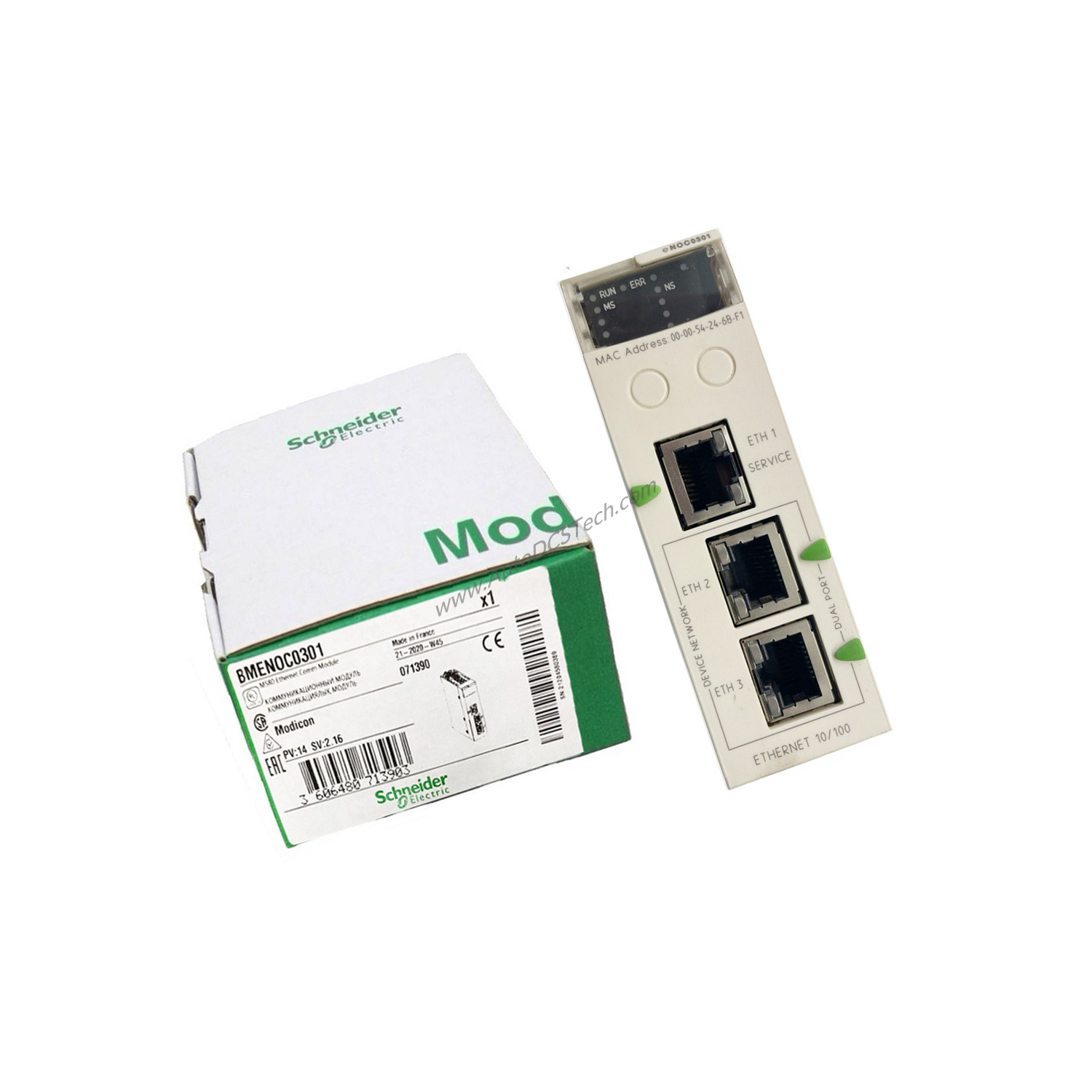

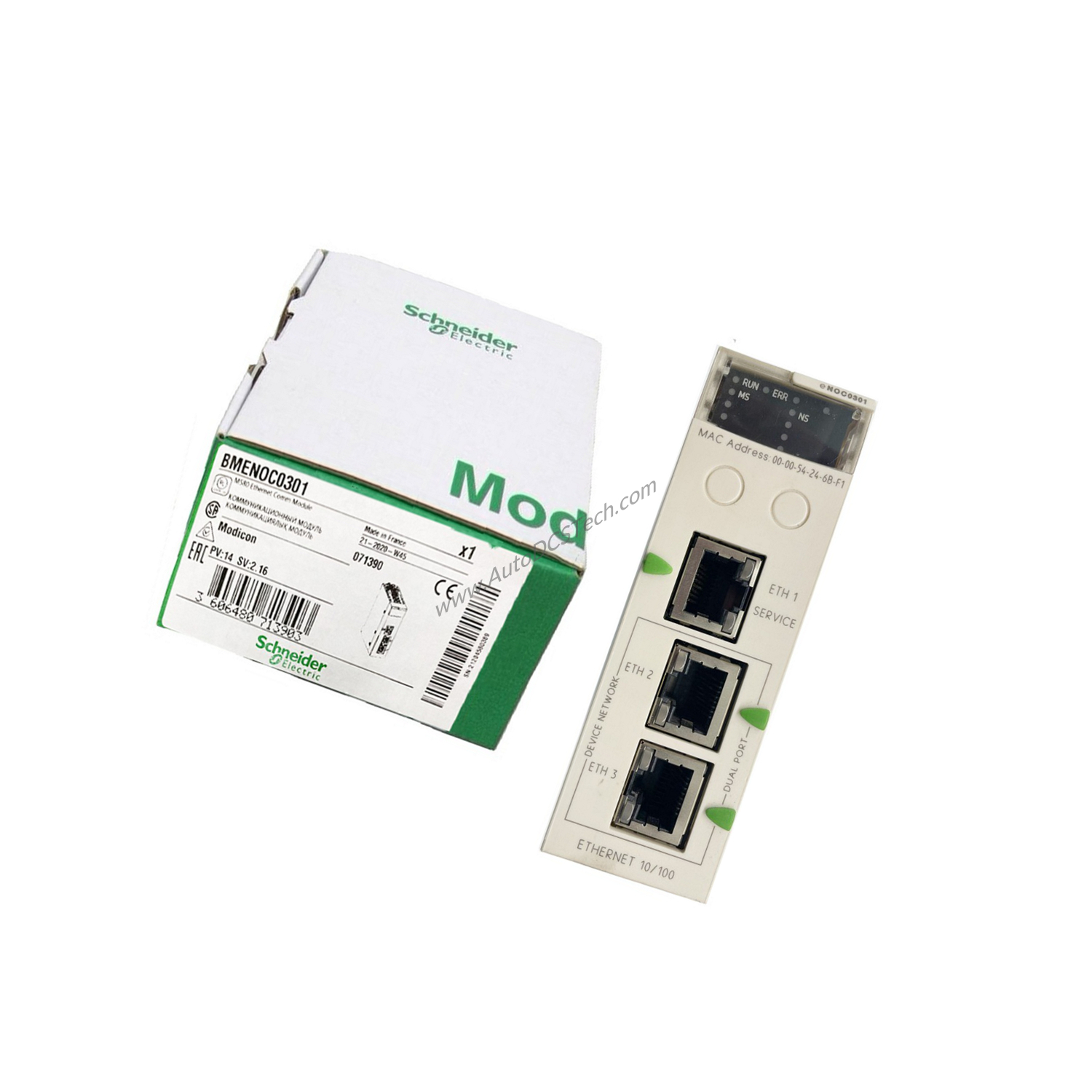

When network reliability is critical in process control, the Schneider BMENOC0301 communication module delivers robust Ethernet IP and Modbus TCP connectivity. As part of the Modicon M580 family, this module is designed for maintenance engineers who need dependable, easy-to-service network infrastructure. It mounts on the main rack in an Ethernet + X-bus slot, occupying just one slot and supporting up to four modules per rack.
Technical Specifications Breakdown
Key specifications from the BMENOC0301 include:
- Power Supply: Internal power supply via rack, with current consumption of 900 mA at 3.3 V DC (for product version >= 13) or 1800 mA at 3.3 V DC (for product version < 13).
- Connectivity: Three Ethernet RJ45 ports supporting 10/100 Mbit/s double shielded twisted pair cables.
- Communication Services: Bandwidth management, FDR server, SNMP network administrator, Modbus TCP I/O Scanner and Messaging, Ethernet/IP I/O Scanner and Messaging, RSTP support, port mirroring, embedded multiport switch, and a web server for commissioning, operational, and maintenance tasks.
- Local Signaling: LEDs for processor running (green), processor or system fault (red), Ethernet port configuration status (green/red), and Ethernet network status (green/red).
- Environmental: IP20 protection, operating temperature range of 32…140 °F (0…60 °C), and CE marking.
These specs ensure the module can handle demanding industrial environments while providing clear diagnostic feedback.
Industry Applications
In a typical chemical plant, the BMENOC0301 connects a Modicon M580 redundant CPU to distributed I/O over Ethernet IP. The embedded multiport switch reduces cabling complexity, while RSTP support ensures network redundancy. For a water treatment facility, the module's Modbus TCP I/O Scanner simplifies integration with legacy devices. Maintenance engineers appreciate the web server for remote diagnostics, minimizing downtime.
Installation & Setup Guidance
Mount the BMENOC0301 on the main rack in an Ethernet + X-bus slot. Ensure the rack provides internal power. Use double shielded twisted pair cables for Ethernet connections. After installation, verify the RUN LED is green and the ERR LED is off. Configure communication services via the web server or engineering software.
Maintenance & Reliability
Regularly inspect the module for dust accumulation, as IP20 protection means it is not sealed. Check LED status during routine rounds; a red ERR LED indicates a fault. The module's low power consumption (900 mA at 3.3 V DC) reduces heat generation, extending service life. For maximum reliability, keep firmware updated per Schneider guidelines.
Compatibility & Integration
The BMENOC0301 is compatible with:
- Modicon M580 standalone CPUs (BMEP58…)
- Modicon M580 redundant CPUs (BMEH58…)
- Modicon M580 safety CPUs (non interfering type 1) (BMEP582…)
- Modicon M580 safety redundant CPUs (non interfering type 1) (BMEH582…)
- Modicon X80 racks with Ethernet backplane (BMEXBP…)
It supports both Ethernet IP and Modbus TCP, making it versatile for mixed-vendor environments.
Selection Guide & Purchasing Advice
Before ordering, verify your rack has an available Ethernet + X-bus slot. Confirm your CPU version to ensure compatibility. The BMENOC0301 is available from SpareTechPLC, a trusted supplier of industrial automation parts. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Troubleshooting & Common Issues
- ERR LED red: Check for CPU faults or configuration errors. Use the web server to view diagnostic logs.
- No network communication: Verify Ethernet cable integrity and switch settings. Ensure the module's IP address is correctly configured.
- Module not recognized: Confirm the module is fully seated in the rack and the rack power supply is functioning.
Frequently Asked Questions (FAQs)
Q: Can the BMENOC0301 be used with a Modicon M580 safety CPU?
A: Yes, it is compatible with Modicon M580 safety CPUs (non interfering type 1) such as BMEP582… and BMEH582….
Q: What is the maximum number of BMENOC0301 modules per rack?
A: Up to four modules can be installed per rack.
Q: Does the module support RSTP?
A: Yes, RSTP support is included for network redundancy.
Q: What is the power consumption of the BMENOC0301?
A: It consumes 900 mA at 3.3 V DC for version >= 13, or 1800 mA for version < 13.
Q: How do I check the module's status?
A: Use the front panel LEDs (RUN, ERR, ETH MS, ETH NS) or the built-in web server.
