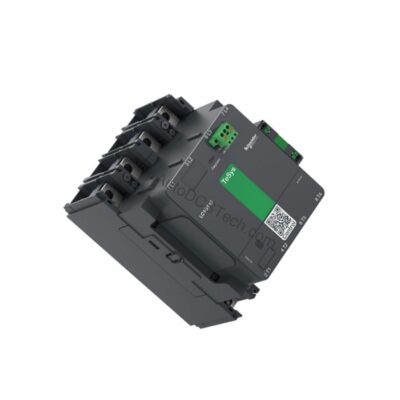

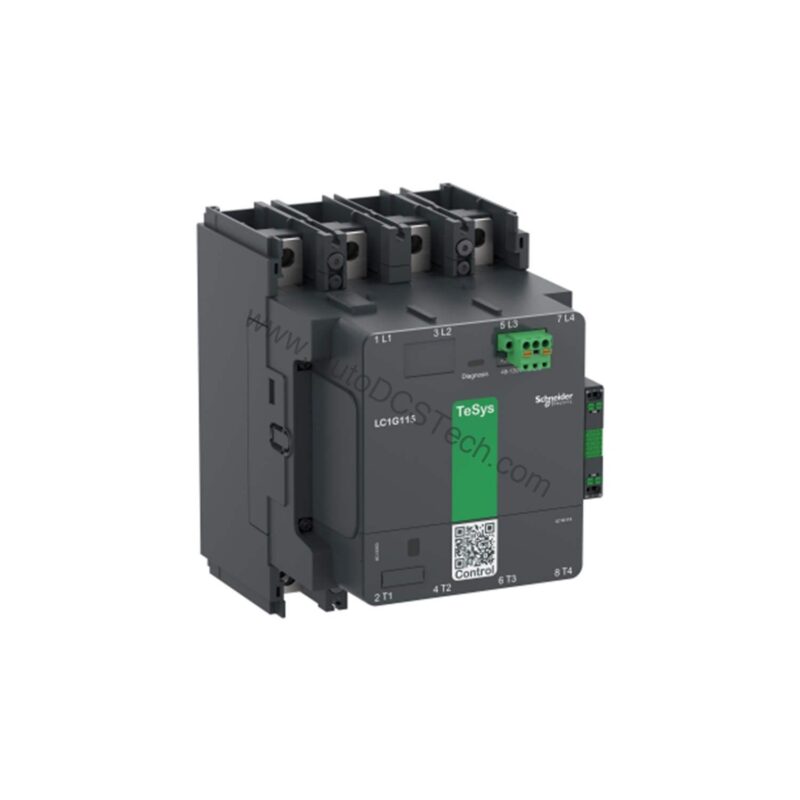

LC1G1504KUEN: Contactor
The LC1G1504KUEN is the Contactor covered on this page. The attribute that decides whether it fits the existing installation without modification is 193mm.
This configuration's contactor is the attribute that drives the replacement decision. Selecting this unit comes down to confirming the configuration against the installation it is being fitted to. contactor is the attribute that decides fit and function, and verifying 193mm against the existing equipment is the check that prevents a part that installs but does not perform.
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Brand | Schneider |
| Part Number | LC1G1504KUEN |
| Coil Voltage | 100/250 V ac/dc |
| Product Type | Contactor |
| Number of Poles | 4 |
| Contact Voltage | 1000V |
| Contact Current | 275A |
| Series | LC1G150 |
| Function | Load Control |
| Normal State Configuration | 1 NO/1 NC |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Control Circuit Voltage Uc | 100 to 250 V ac |
| Operational Current Ie | 275A |
| Minimum Operating Temperature | -25°C |
| Contactor Application | Power Switching |
| Maximum Operating Temperature | 60°C |
| Width | 140 mm |
| Depth | 193mm |
| Length | 193mm |
| Standards/Approvals | EN/IEC 60947-4-1, CSA C22.2 No 60947-4-1, UL 60947-4-1, JIS C8201-5-1, JIS C8201-4-1, EN/IEC 60947-5-1 |
| Better World Product | Yes |
| Pole and Throw Configuration | 4 NO |
| Country of Origin | China |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| schneider-lc1g1854kuen-contactor-305a-4-pole-100-250vac-dc | confirm the configuration against your installation |
· Last updated:
Availability & Condition at AutoDCSTech
| Part Number | LC1G1504KUEN |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | France |
