Introduction

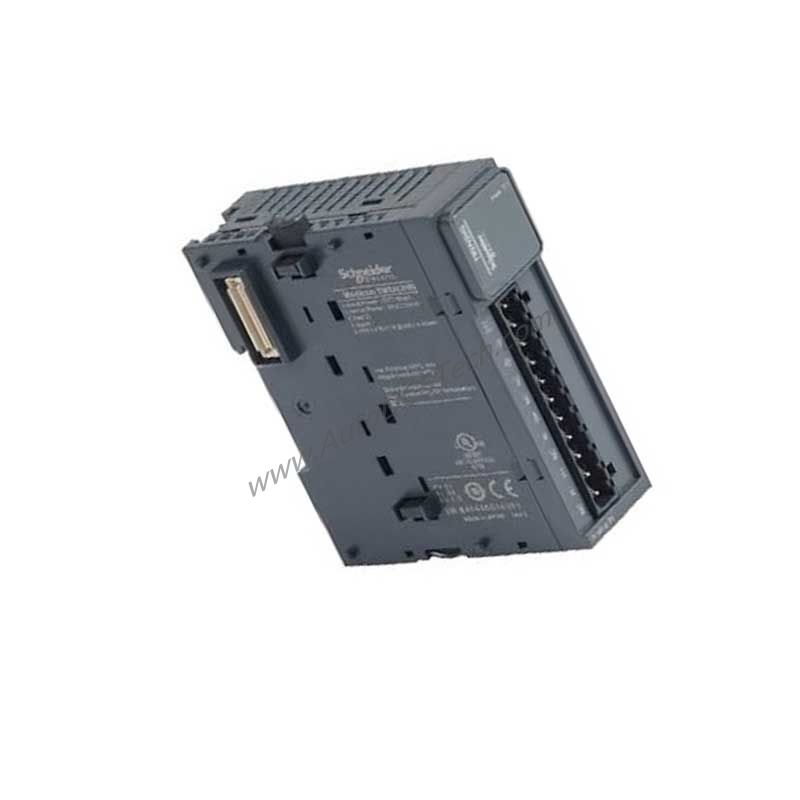

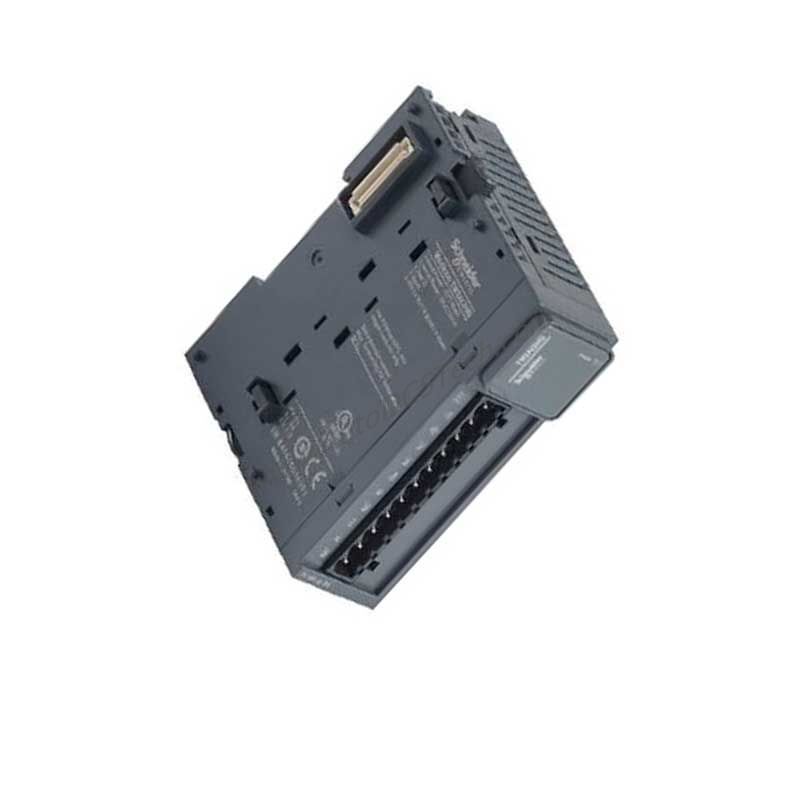

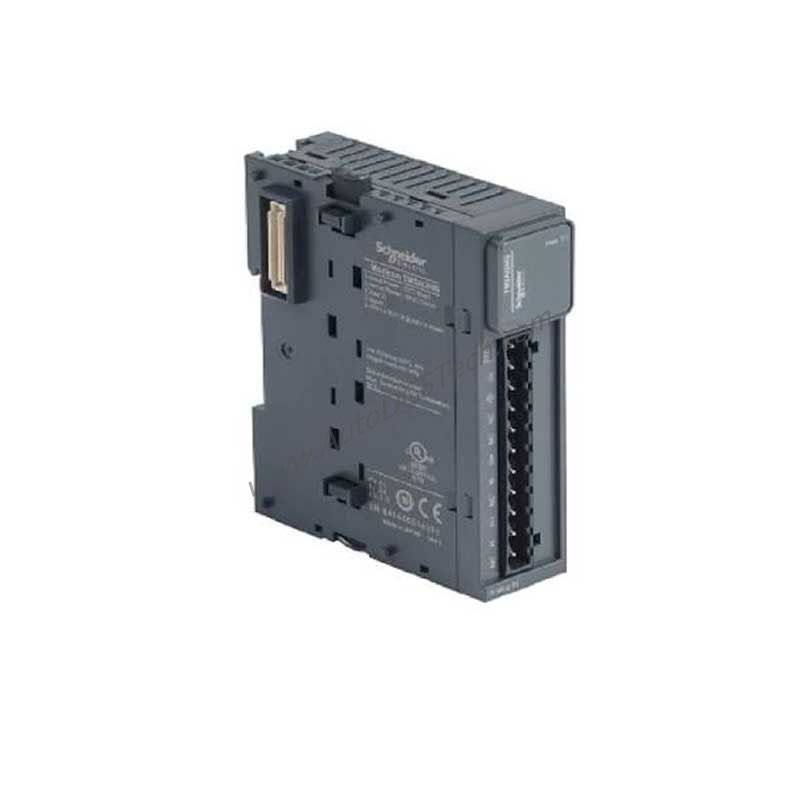

In the evolving landscape of industrial automation, the demand for precise and flexible signal acquisition has never been higher. The Schneider TM3TI4 Analog Input Module addresses this need by offering a versatile solution for measuring current, voltage, thermocouple, and temperature probe signals. As part of the Modicon TM3 family, this module integrates seamlessly with Modicon M221, M241, M251, and M262 controllers, providing engineers with a reliable tool for monitoring and control applications.
Technical Specifications Breakdown
The TM3TI4 delivers 4 analog inputs with a 16-bit resolution (15 bits + sign), ensuring accurate data conversion for critical processes. It supports multiple input types: current (0–20 mA, 4–20 mA), voltage (0–10 V, -10 to 10 V), and a wide range of thermocouples (J, K, R, S, B, T, N, E, C) as well as Ni 100/Ni 1000, Pt 100, and Pt 1000 temperature probes. The conversion time varies by input type: 10 ms + 10 ms per channel for voltage/current, and 100 ms + 100 ms per channel for thermocouples and temperature probes. The module operates on a 24 V DC supply (20.4–28.8 V limits) and draws 45 mA or 50 mA at 5 V DC via the bus connector, plus 35 mA or 40 mA at 24 V DC via external supply. Its absolute accuracy error is ±0.2% of full scale at 25 °C for most input types, with specific tolerances for thermocouples like R and S (±6 °C at 25 °C for 0–200 °C). The module measures 90 mm x 23.6 mm x 70 mm and weighs 0.11 kg, with an IP20 protection rating.
Industry Applications
In process industries such as chemical plants and food processing, the TM3TI4 monitors temperature via thermocouple or RTD probes, ensuring product quality and safety. For example, using a Pt 100 probe with a range of -200 to 850 °C, the module provides precise temperature feedback for batch reactors. In manufacturing, the module reads 4–20 mA signals from pressure transmitters or flow meters, enabling real-time control of hydraulic systems. Its compatibility with Modicon M241 and M251 makes it ideal for packaging machinery where multiple analog signals must be synchronized.
Installation & Setup Guidance
Mount the TM3TI4 on a top hat TH35-15 or TH35-7.5 rail per IEC 60715, or use a plate or panel with a fixing kit. Connect inputs using twisted shielded pairs with cable lengths under 30 meters to minimize noise. The removable screw terminal block (10 x 1.5 mm², pitch 3.81 mm) handles both inputs and supply. Ensure the rated supply voltage is 24 V DC within the limits of 20.4–28.8 V. The module includes a green PWR LED for local signaling. For voltage inputs, the permissible continuous overload is 13 V; for current inputs, it is 40 mA. Input impedance is ≤50 Ohm for current and ≥1 MOhm for voltage, thermocouple, and temperature probe types.
Maintenance & Reliability
The TM3TI4 is built for reliability in harsh environments, operating at ambient temperatures from -10 to 55 °C (horizontal) or -10 to 35 °C (vertical), with storage from -25 to 70 °C. It withstands vibration up to 3.5 mm at 5–8.4 Hz and 3 gn at 8.4–150 Hz on DIN rail, plus shock of 15 gn for 11 ms. Resistance to electrostatic discharge (8 kV air, 4 kV contact), electromagnetic fields (10 V/m up to 1 GHz), and fast transients (1 kV I/O) ensures stable operation. Regular inspection of connections and environmental conditions helps maintain performance. The module carries CE, UKCA, RCM, EAC, cULus, and cULus HazLoc certifications, meeting IEC 61131-2 standards.
Compatibility & Integration
The TM3TI4 is designed for Modicon M221, M241, M251, and M262 controllers, allowing straightforward integration into existing Schneider Electric architectures. It communicates via the bus connector, drawing power from the controller backplane. The module supports both voltage and current inputs, making it compatible with a wide range of sensors and transmitters common in industrial automation.
Selection Guide & Purchasing Advice
Before purchasing the TM3TI4, verify your controller model (M221, M241, M251, or M262) and ensure the input types match your sensors. The module requires a 24 V DC supply; confirm your system provides this within the specified limits. For thermocouple applications, choose the appropriate type (J, K, R, S, B, T, N, E, C) based on your temperature range. SpareTechPLC offers the TM3TI4 as a genuine Schneider product, with stock availability and fast shipping. Contact us to confirm current lifecycle status and pricing.
Frequently Asked Questions
Q1: Can the TM3TI4 read both voltage and current signals simultaneously?
Yes, the module has 4 analog inputs that can be individually configured for voltage (0–10 V or -10 to 10 V) or current (0–20 mA or 4–20 mA) as per your application needs.
Q2: What is the maximum cable length for thermocouple inputs?
The module recommends using twisted shielded pairs with cable lengths under 30 meters for all input circuits to maintain signal integrity.
Q3: Does the TM3TI4 support Pt100 RTD probes?
Yes, it supports Pt 100 temperature probes with a range of -200 to 850 °C, as well as Pt 1000 and Ni 100/Ni 1000 probes.
Q4: What is the power consumption of the TM3TI4?
The module draws 45 mA or 50 mA at 5 V DC via the bus connector, plus 35 mA or 40 mA at 24 V DC via external supply.
Q5: Is the TM3TI4 compatible with Modicon M262?
Yes, the TM3TI4 is listed as compatible with Modicon M262 controllers, along with M221, M241, and M251.
