Product Overview

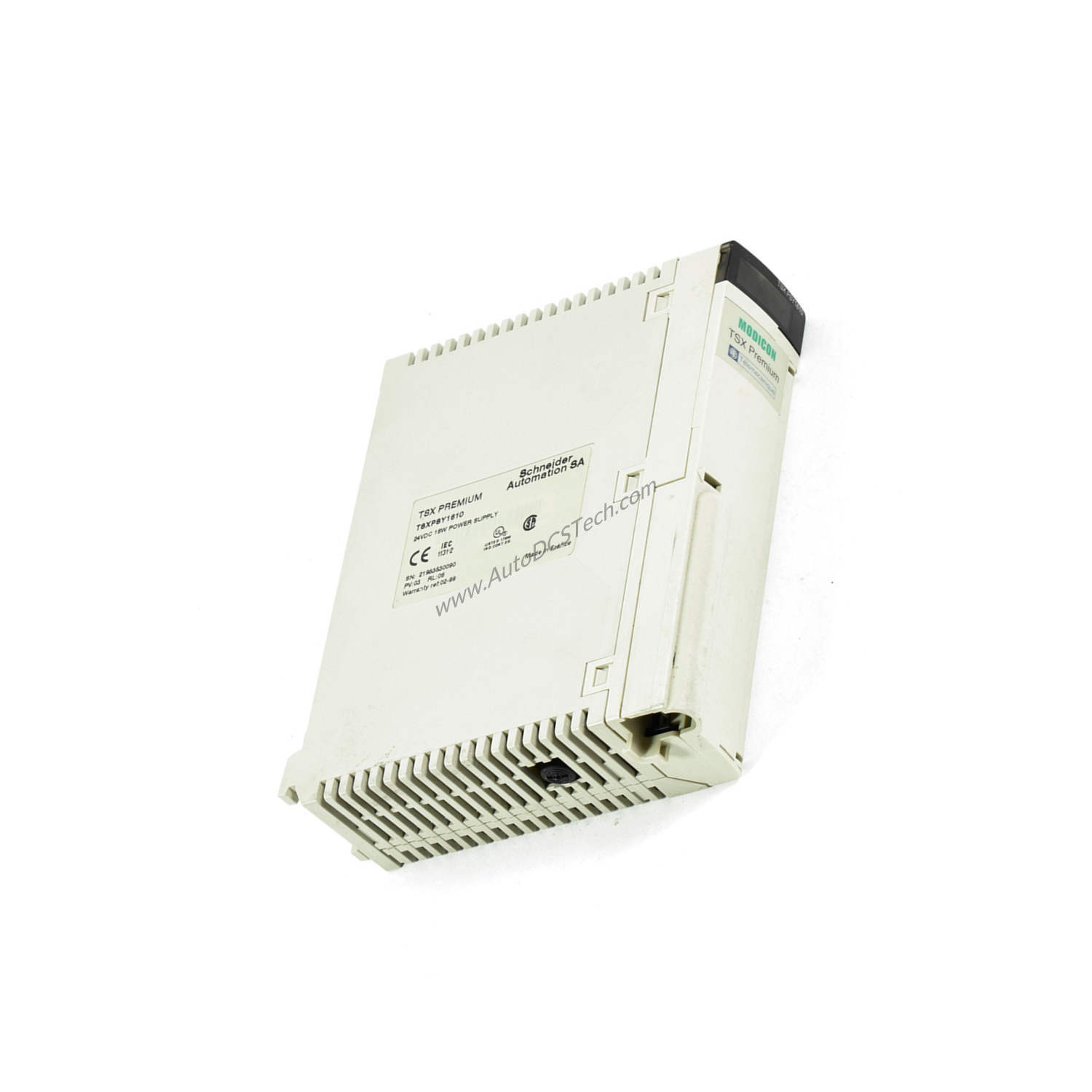

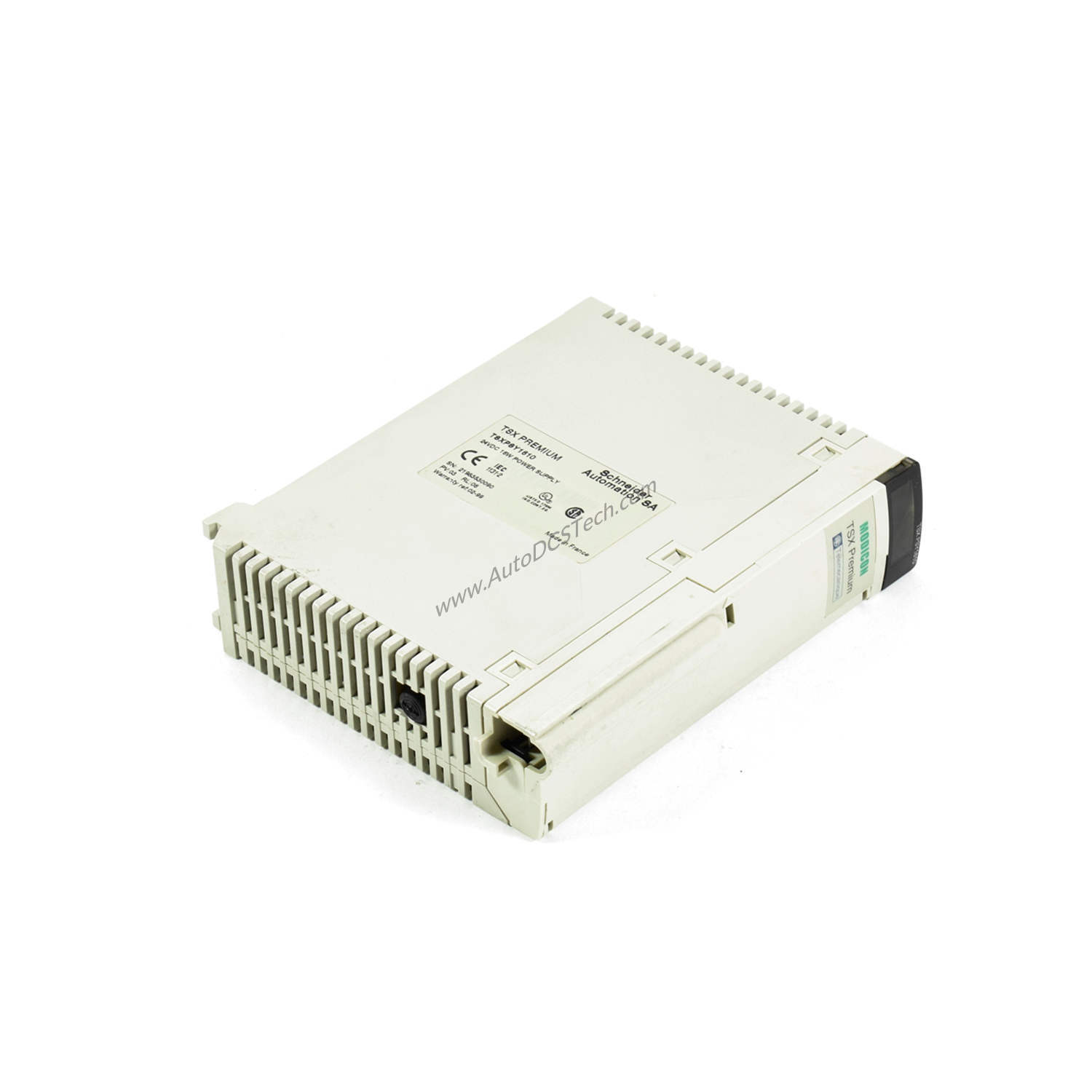

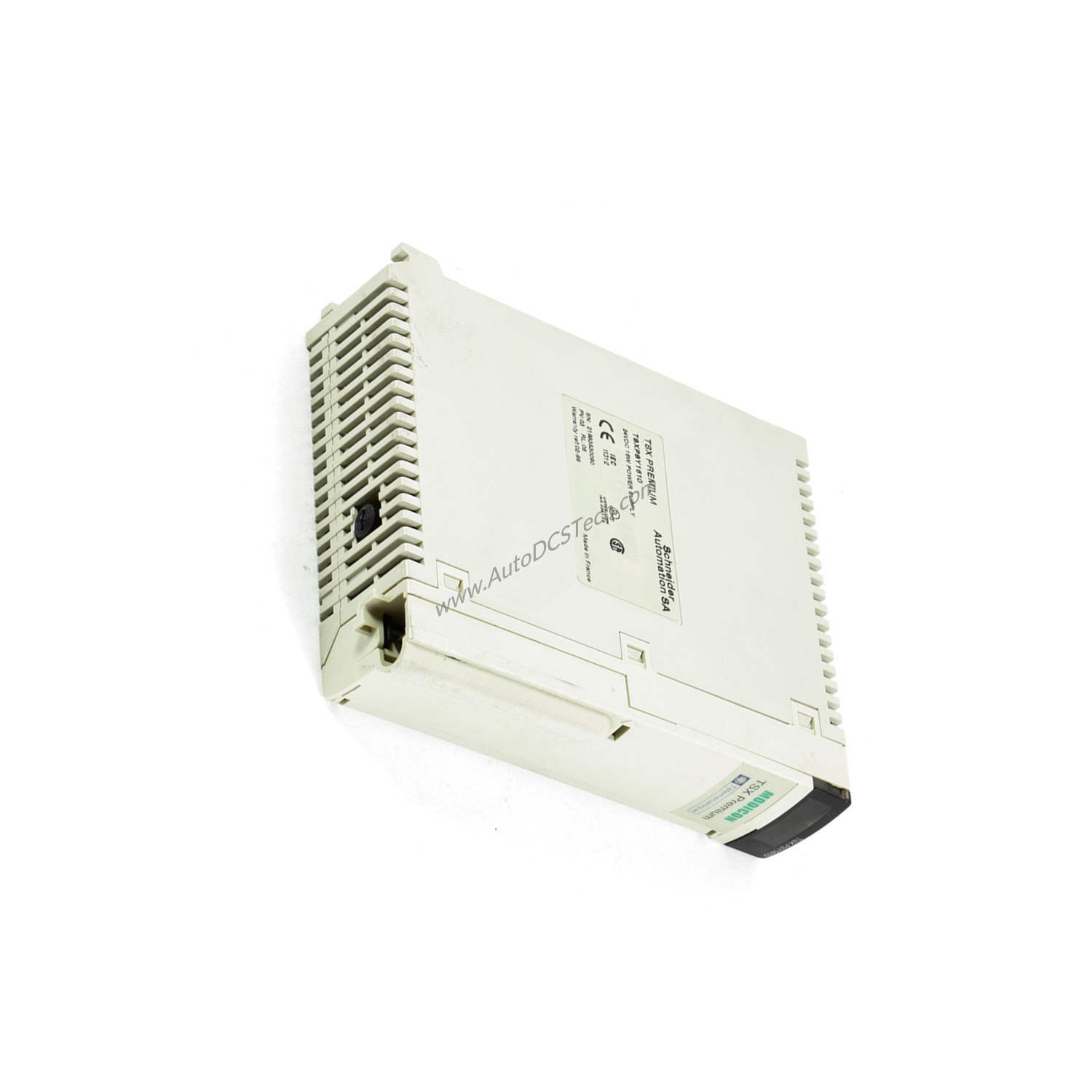

When your TSX Micro PLC system needs reliable power delivery, the Schneider Electric TSXPSY1610M provides a dedicated solution. This power supply module operates at a primary voltage of 24 V DC (19.2 to 30 V) and delivers a total useful secondary power of 30 W. It supplies 15 W at 5 V DC and 15 W at 24 V DC, supporting both logic and relay circuits.
Technical Specifications Breakdown
The TSXPSY1610M offers two secondary outputs: 0.6 A at 24 V DC for relay power supply and 3 A at 5 V DC for logic circuits. The input current is ≤ 1500 mA at 24 V, with an inrush current of 100 A at 24 V. Protection includes an internal fuse (3.5 A, 5 x 20 mm, time-delayed) plus overload, overvoltage, and short-circuit protection on the secondary circuit. Local signaling uses one green LED for voltage presence and one red LED for battery fault.
Industry Applications
In manufacturing environments, the TSXPSY1610M powers TSX Micro PLCs controlling conveyor systems or packaging machines. The dual-voltage output allows separate power for relay outputs and processor logic, simplifying wiring. For process control applications, the module's 0 to 60 °C operating temperature range and IP20 protection suit clean industrial settings.
Installation & Setup Guidance
Mount the TSXPSY1610M in a standard TSX Micro rack. Ensure the primary voltage stays within 19.2 to 30 V DC. Connect the 24 V DC relay supply and 5 V DC logic supply to their respective bus bars. Verify the green LED illuminates after power-up. If the red LED lights, check the battery connection.
Maintenance & Reliability
The TSXPSY1610M requires minimal routine care. Periodically inspect the internal fuse (3.5 A, 5 x 20 mm, time-delayed) for continuity. Keep the ambient temperature between 0 and 60 °C and relative humidity below 95% without condensation. The protective treatment TC helps resist environmental stress. Regular checks ensure long service life.
Compatibility & Integration
This module is designed for the Schneider Electric TSX Micro PLCs product line. It integrates directly with TSX Micro racks and backplanes. The CE marking and multiple certifications (UL 508, IEC 61131-2, CSA C22.2 No 142) confirm compliance with international standards.
Selection Guide & Purchasing Advice
Before ordering, confirm your PLC rack accepts the TSXPSY1610M format. Verify the primary voltage source matches 24 V DC. SpareTechPLC stocks this module and can advise on compatibility with your existing TSX Micro system. Contact our team for current availability and lifecycle status.
Frequently Asked Questions
Q: What is the total power output of the TSXPSY1610M?
A: The total useful secondary power is 30 W, split as 15 W at 5 V DC and 15 W at 24 V DC.
Q: What protection features does this module include?
A: It includes an internal fuse (3.5 A, 5 x 20 mm, time-delayed), plus overload, overvoltage, and short-circuit protection on the secondary circuit.
Q: What do the LEDs indicate?
A: A green LED indicates voltage presence (OK), and a red LED signals a battery fault (BAT).
Q: Can the TSXPSY1610M operate in high humidity?
A: Yes, it operates at 10 to 95% relative humidity without condensation.
Q: What is the operating temperature range?
A: The module operates from 0 to 60 °C and can be stored from -25 to 70 °C.
