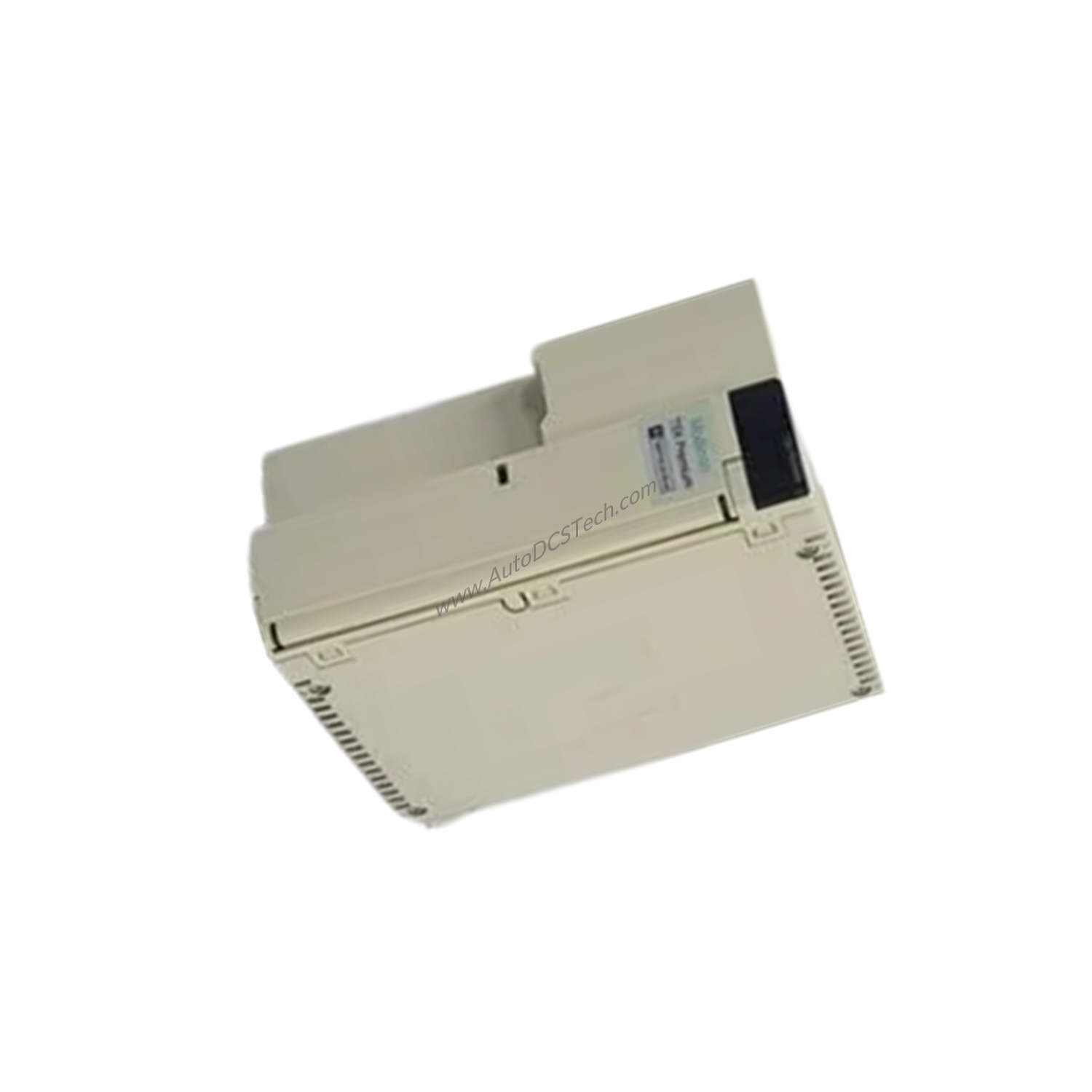

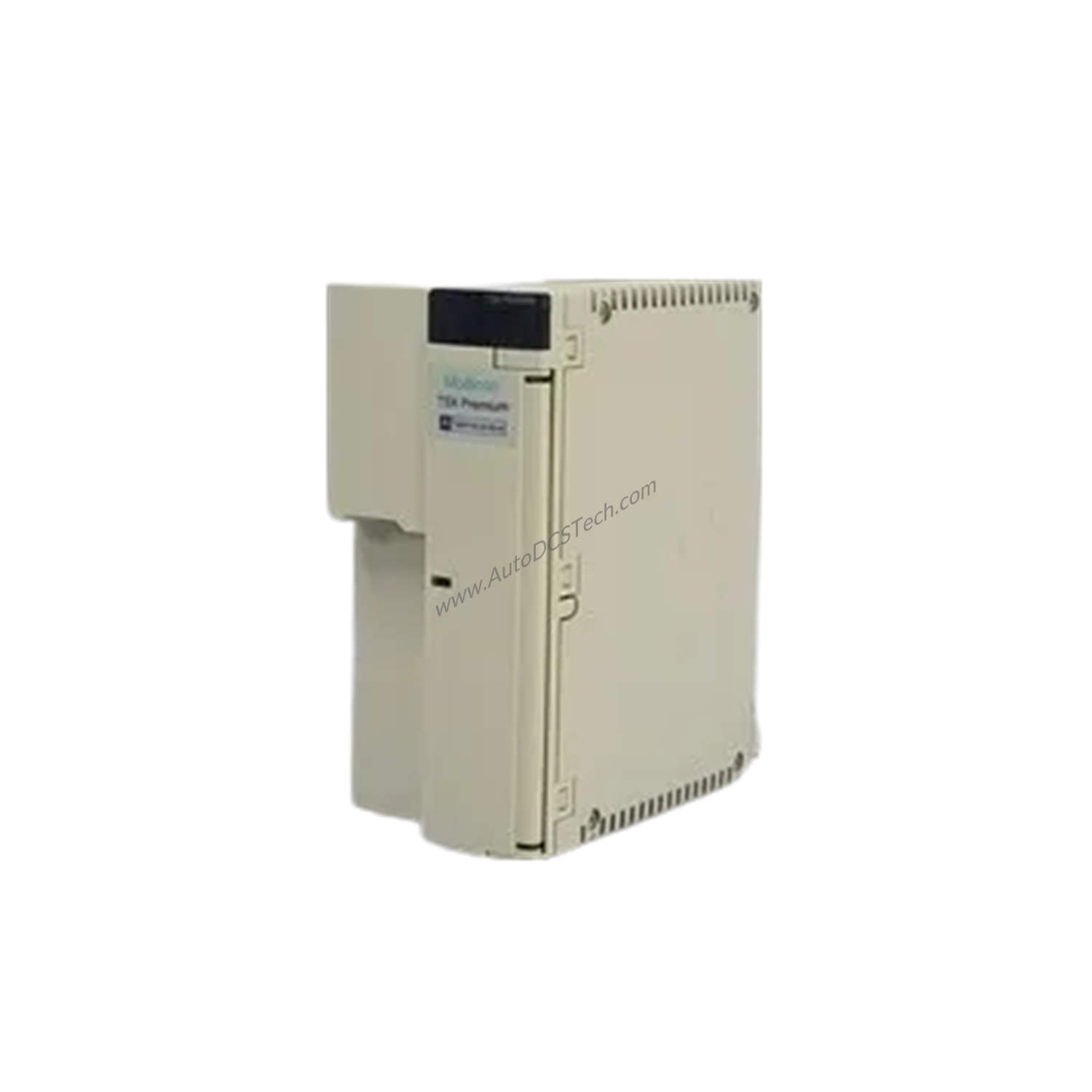

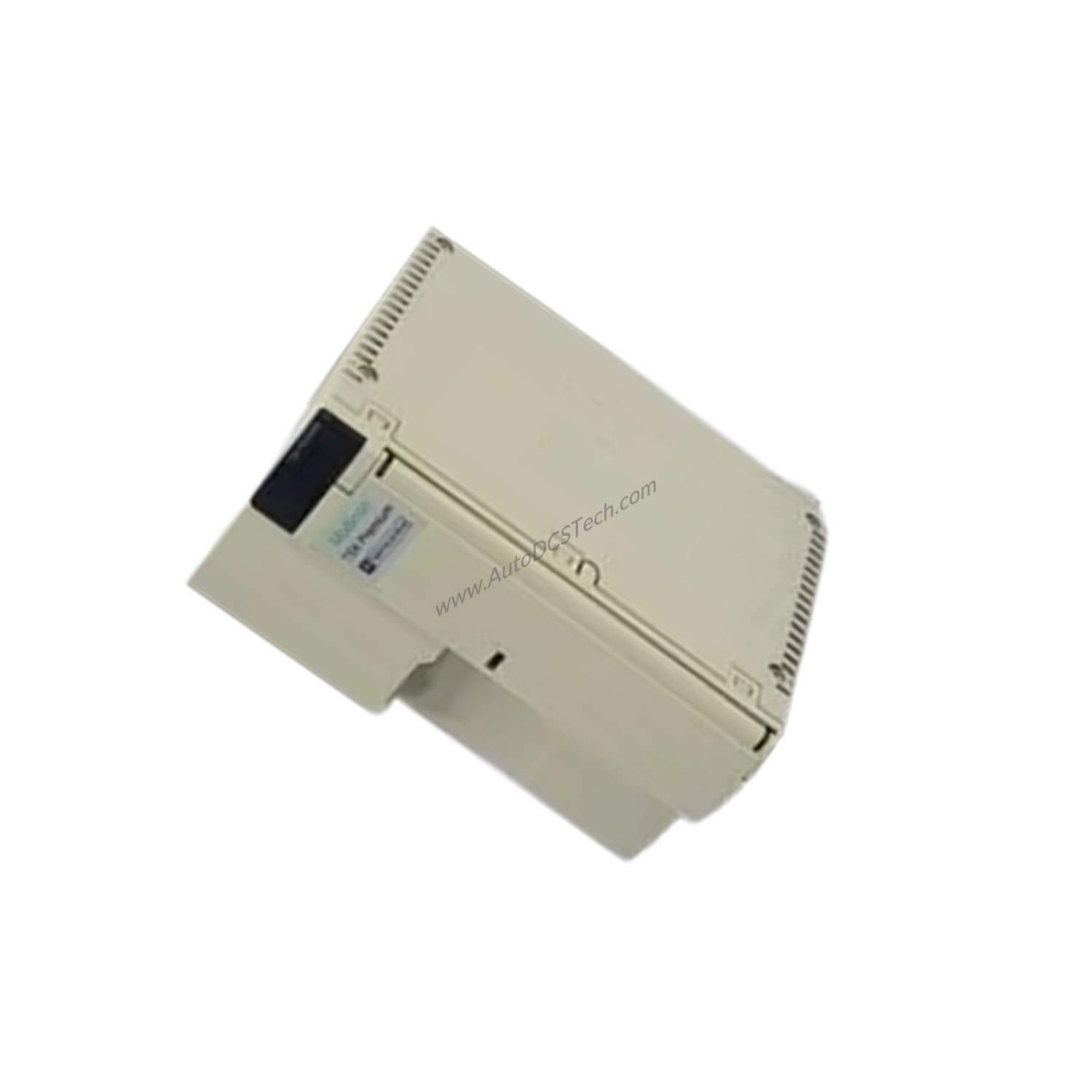

Product Overview
When your TSX Micro PLC system needs reliable and efficient power, the Schneider TSXPSY5500M power supply module provides a cost-effective solution. This module operates with both 200-240 V AC and 100-120 V AC primary voltage ranges, reducing the need for multiple power supplies across different sites. Its 50 W total useful secondary power supports critical control components while minimizing energy waste.
Technical Specifications Breakdown
The TSXPSY5500M delivers 35 W at 5 V DC and 19 W at 24 V DC, with current outputs of 7 A at 5 V DC and 0.8 A at 24 V DC for both sensor and relay power supplies. This dual-voltage capability means you can power both logic circuits and field devices from a single module, lowering overall system cost. The input current is 500 mA at 240 V and 1700 mA at 100 V, and inrush current is limited to 38 A at both voltages, protecting upstream breakers and reducing nuisance trips.
Industry Applications
In manufacturing lines, the TSXPSY5500M powers PLC racks controlling conveyor systems and robotic cells. Its operating temperature range of 0 to 60 °C and humidity tolerance of 10 to 95% without condensation ensure stable performance in factory environments. By using one module for both 5 V and 24 V loads, you reduce wiring costs and simplify inventory management.
Installation & Setup Guidance
Mount the TSXPSY5500M in a standard TSX Micro PLC rack. Ensure the primary voltage matches your facility supply: 200-240 V AC (190-264 V) or 100-120 V AC (85-140 V). The module includes an internal time-delayed fuse (4 A, 5 x 20 mm) for primary circuit protection. Verify that the total load on the 5 V and 24 V outputs does not exceed 35 W and 19 W respectively to avoid overload.
Maintenance & Reliability
The module features three LEDs for local signaling: one red LED for battery fault and two green LEDs for presence of voltages and sensor voltage. Regularly inspect these indicators to catch faults early. The unit includes overload, overvoltage, and short-circuit protection on the secondary circuit, reducing downtime and repair costs. With a storage temperature range of -25 to 70 °C and IP20 protection, it withstands typical industrial storage conditions.
Compatibility & Integration
Designed for the TSX Micro PLCs product line, the TSXPSY5500M integrates seamlessly with Modicon Premium automation platforms. Its 50 W total useful secondary power supports a range of I/O modules and controllers. Before ordering, verify that your system's power requirements align with the module's 35 W at 5 V DC and 19 W at 24 V DC outputs to avoid oversizing.
Buying Guide
When selecting the TSXPSY5500M, confirm your primary voltage range and network frequency (50/60 Hz, limits 47-63 Hz). The module weighs 1.00 lbs (0.45 kg) and has dimensions of 3.7 x 7.09 x 10.2 inches. SpareTechPLC stocks this module and can advise on compatibility with your existing TSX Micro system. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Frequently Asked Questions
Q: What is the total useful secondary power of the TSXPSY5500M?
A: The module provides 50 W total useful secondary power, with 35 W at 5 V DC and 19 W at 24 V DC.
Q: What input voltages does the TSXPSY5500M support?
A: It supports 200-240 V AC (190-264 V) and 100-120 V AC (85-140 V) at 50/60 Hz.
Q: What protection features are included?
A: The module includes an internal time-delayed fuse (4 A, 5 x 20 mm), overload protection, overvoltage protection, and short-circuit protection on the secondary circuit.
Q: Can the TSXPSY5500M power both sensors and relays?
A: Yes, it provides 0.8 A at 24 V DC for sensor power supply and 0.8 A at 24 V DC for relay power supply.
Q: What is the operating temperature range?
A: The module operates from 0 to 60 °C and can be stored from -25 to 70 °C.
