Product Overview

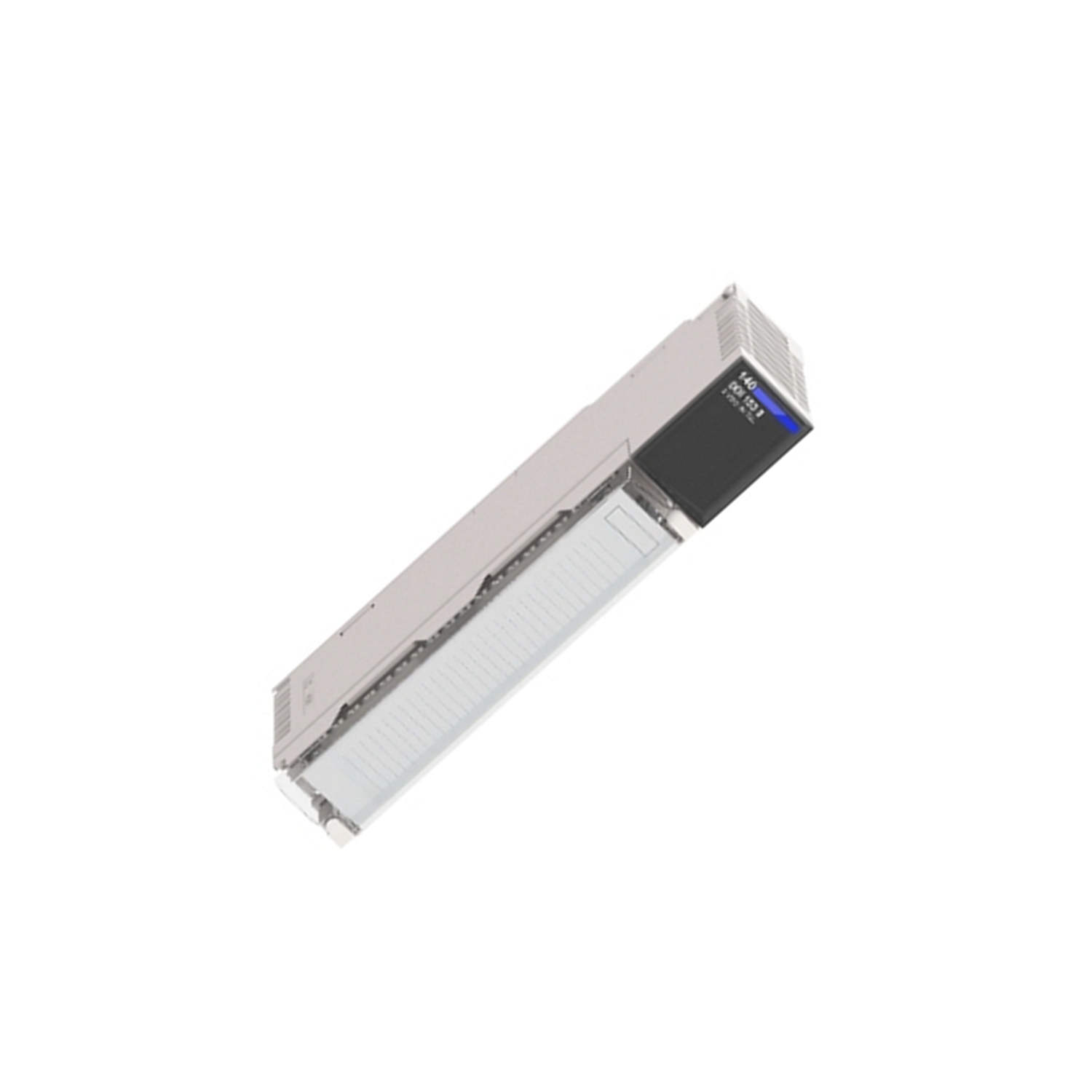

The Schneider Electric 140DDI35300C is a discrete input module engineered for the Modicon Quantum automation platform. It manages up to 32 discrete inputs at a nominal voltage of 24 V DC, with input voltage limits of 19.2 to 30 V. This module uses a positive logic input (sink) configuration, simplifying integration with control systems. For maintenance engineers, its compact design (0.3 kg net weight) and conformal coating (Humiseal 1A33) ensure reliability in demanding environments.
Technical Specifications Breakdown
Key parameters for the 140DDI35300C are listed below for quick reference:
| Feature | Specification |
|---|---|
| Product Type | Discrete Input Module |
| Discrete Input Number | 32 |
| Group of Channels | 4 |
| Logic Input | Positive (sink) |
| Discrete Input Voltage | 24 V DC |
| Input Voltage Limits | 19.2 - 30 V |
| Current State (1 guaranteed) | >= 2 mA |
| Input Impedance | 2500 Ohm |
| Max. Leakage Current | 200 mA |
| Absolute Max. Input | 36 V |
| Power Dissipation | 1.7 W |
| Isolation Between Group | 500 Vrms |
| Addressing Requirement | 2 input words |
Industry Applications
This module excels in discrete monitoring tasks across manufacturing, water treatment, and material handling. For example, it can monitor limit switches or proximity sensors on a conveyor line, with its 32 inputs reducing the need for multiple smaller modules. The 500 Vrms isolation between groups enhances safety in high-noise environments, a key factor for maintenance teams reducing downtime.
Installation & Setup Guidance
When installing, ensure the bus current requirement of 330 mA is met by the power supply. The module requires addressing with 2 input words in the Quantum backplane. Use the positive logic input configuration to match your sensor wiring—typically, a current state of >= 2 mA indicates a logic 1. The response time is <= 1 ms for both state transitions, enabling fast fault detection.
Maintenance & Reliability
For reliability, inspect the module periodically for dust or moisture, given its conformal coating (Humiseal 1A33) protects against harsh conditions. The operating temperature range is 0 to 60 °C, and storage from -40 to 85 °C. The module's 32 green LEDs for input status simplify visual diagnostics, reducing troubleshooting time.
Compatibility & Integration
The 140DDI35300C integrates seamlessly into the Modicon Quantum automation platform. It supports CE marking and certifications including CSA, UL, RMRS, ABS, GOST, BV, C-Tick, DNV, and RINA, ensuring broad compatibility across industries.
Selection Guide & Purchasing Advice
For replacement or new installations, verify lifecycle status with SpareTechPLC before ordering. This module is ideal for applications requiring 32 discrete inputs at 24 V DC with reliable isolation. Contact SpareTechPLC for availability and competitive pricing.
Troubleshooting & Common Issues
If inputs fail to register, check the input voltage is within 19.2-30 V. A leakage current above 200 mA may indicate a wiring fault. Use the 32 status LEDs to identify inactive channels. For persistent issues, verify the bus current supply meets 330 mA.
