Product Overview

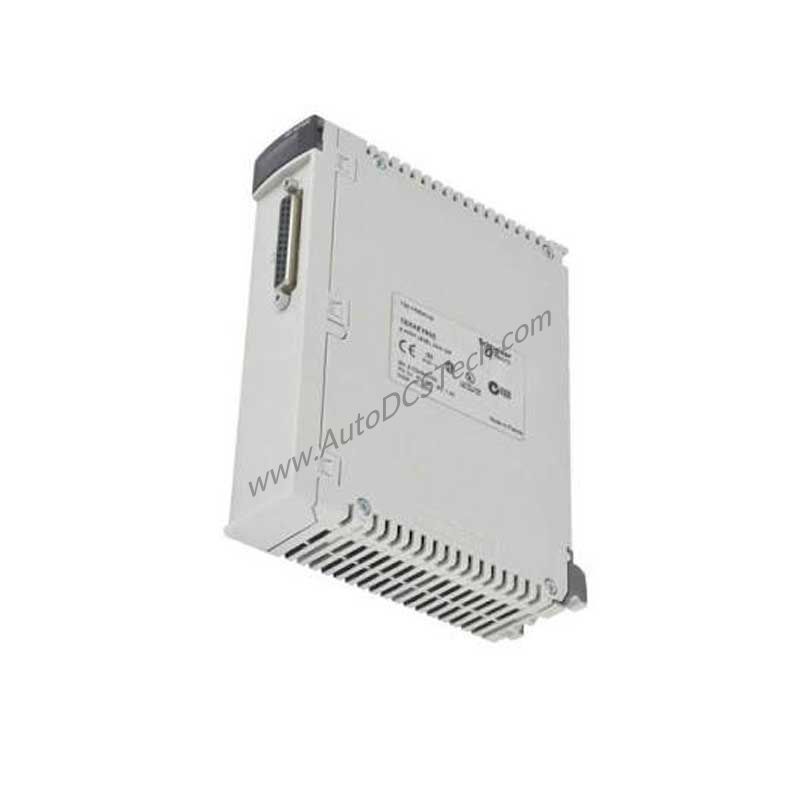

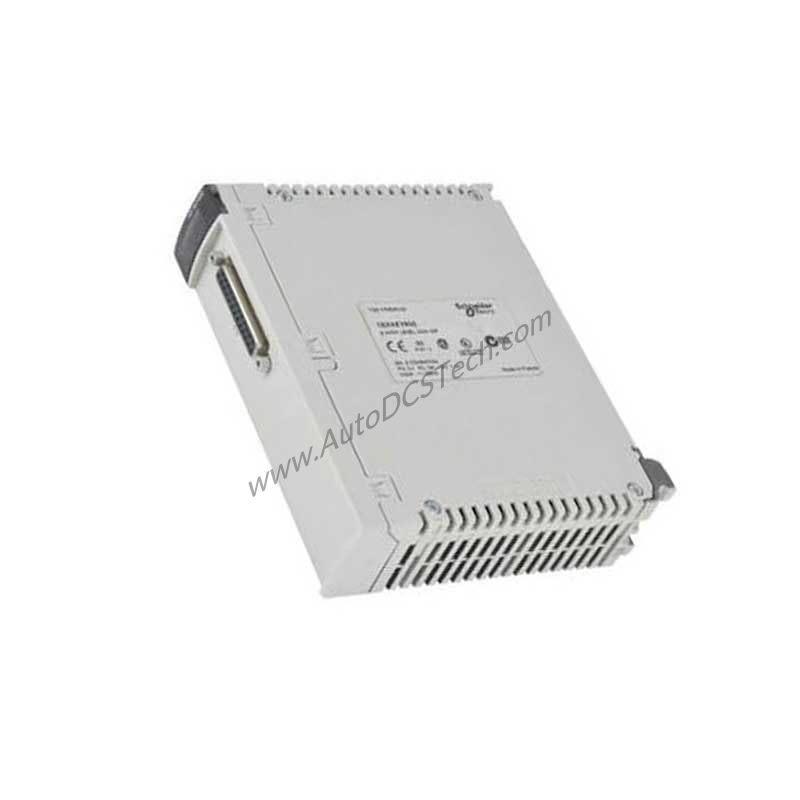

When precise analog signal acquisition is critical for your automation processes, the Schneider TSXAEY800 Analog Input Module delivers reliable performance within the TSX Micro PLCs series. This module handles up to eight high-level inputs, supporting both current (0-20 mA, 4-20 mA) and voltage (+/- 10 V, 0-10 V, 0-5 V, 1-5 V) types, making it a versatile choice for diverse industrial applications.
Technical Specifications Breakdown
The TSXAEY800 offers key specifications that ensure accurate and stable operation:
- Analog/Digital Conversion: 12 bits for precise measurement.
- Measurement Error: Ranges from 0.15% to 0.41% of full scale, depending on input type and temperature.
- Isolation: 1000 Vrms between channels and bus, and 1000 Vrms between channels and ground, protecting against interference.
- Input Overvoltage Protection: -15 to +15 V at state 0, -30 to +30 V at state 1, safeguarding the module.
- Current Consumption: 270 mA at 5 V DC.
- Read Cycle Times: Fast read cycle time of 3 ms + 3 ms per channel used; nominal read cycle time of 27 ms.
- Protection Rating: IP20 for indoor use.
Industry Applications
In manufacturing environments where monitoring process variables like temperature, pressure, or flow is essential, the TSXAEY800 excels. For example, in a chemical plant, its 12-bit conversion and low measurement error ensure accurate readings from 4-20 mA transmitters. The high isolation voltage (1000 Vrms) prevents ground loops, maintaining signal integrity in electrically noisy settings.
Installation & Setup Guidance
Mount the TSXAEY800 securely in your TSX Micro PLC rack. Connect input signals via the SUB-D 25 connector. Ensure wiring follows the specified input types—current (0-20 mA, 4-20 mA) or voltage (+/- 10 V, 0-10 V, 0-5 V, 1-5 V). Verify that the power supply provides 5 V DC with at least 270 mA capacity. Operate the module within 0 to 60 °C ambient temperature.
Maintenance & Reliability
Regularly inspect the module for dust or debris, as IP20 protection does not seal against contaminants. Check connections for tightness and signs of corrosion. The TSXAEY800's robust isolation (1000 Vrms) and overvoltage protection contribute to long-term reliability, reducing unplanned downtime.
Compatibility & Integration
This module integrates seamlessly with Schneider Electric's TSX Micro PLCs platform. It is compatible with the Modicon Premium Automation platform. The module supports multiple input types, allowing flexible integration with various sensors and transmitters.
Selection Guide & Purchasing Advice
Before purchasing, verify that your system requires an analog input module with 8 high-level inputs and 12-bit resolution. Confirm compatibility with your existing TSX Micro PLC rack. At SpareTechPLC, we stock the TSXAEY800 to ensure fast delivery for your automation needs.
Troubleshooting & Common Issues
If readings are inaccurate, check the input type configuration and wiring polarity. Ensure the module is within operating temperature (0 to 60 °C). If communication fails, verify the SUB-D 25 connector is properly seated. The overvoltage protection prevents damage from transient spikes, but persistent issues may indicate a faulty module.
Frequently Asked Questions
Q: What is the measurement error of the TSXAEY800?
A: The measurement error ranges from 0.15% to 0.41% of full scale, depending on input type and temperature.
Q: Can the TSXAEY800 handle both current and voltage inputs?
A: Yes, it supports current (0-20 mA, 4-20 mA) and voltage (+/- 10 V, 0-10 V, 0-5 V, 1-5 V) inputs.
Q: What is the isolation rating?
A: It provides 1000 Vrms isolation between channels and bus, and between channels and ground.
Q: What is the fast read cycle time?
A: The fast read cycle time is 3 ms + 3 ms per channel used.
Q: Is the TSXAEY800 suitable for outdoor use?
A: No, it has an IP20 protection rating, making it suitable for indoor use only.
