Product Overview

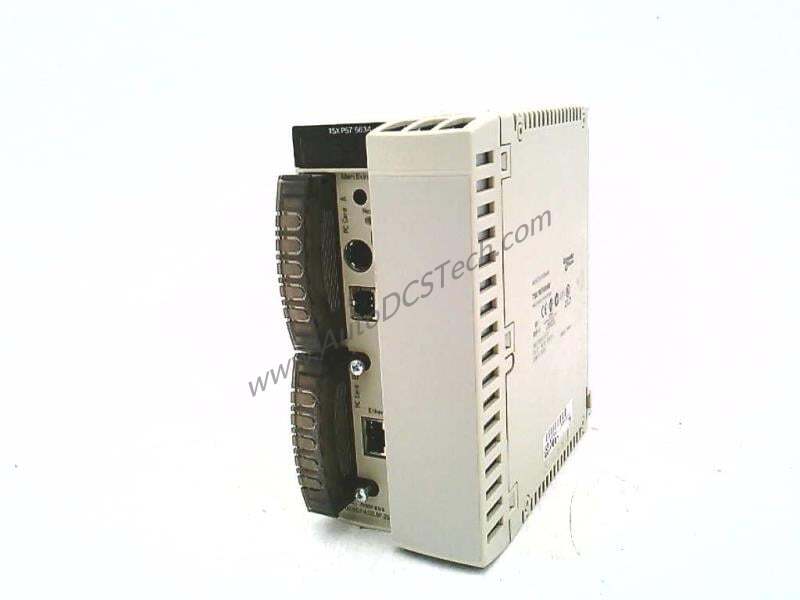

When your industrial control system demands reliable processing and flexible memory expansion, the Schneider TSXP575634M delivers. This controller module belongs to the TSX Micro PLCs series and provides a robust foundation for automation tasks. It features an internal RAM of 32 Kwords for program and data storage, with the option to enhance capacity using a PCMCIA card.
Technical Specifications Breakdown
Memory and Processing
- Internal RAM: 32 Kwords data (with or without PCMCIA card)
- PCMCIA Card: Adds 128 Kwords additional data storage and 64 Kwords program memory
- Execution Time: 0.5 µs Boolean without PCMCIA card; 0.6 µs Boolean with PCMCIA card
- Instruction Throughput: 1.05 Kinst/ms (65% Boolean + 35% fixed arithmetic) without PCMCIA card; 0.85 Kinst/ms with PCMCIA card
Electrical Characteristics
- Current Consumption: 440 mA at 5 V DC
- Inrush Current: 38 A at 240 V and 38 A at 100 V
I/O and Rack Capacity
- Discrete I/O Processor Capacity: 512 I/O
- Analogue I/O Processor Capacity: 24 I/O
- Number of Racks: 2 (12 slots) or 4 (4/6/8 slots)
Connectivity
- Integrated Connection Type: Non-isolated serial link, 2 female mini DIN, 19.2 kbit/s
- Communication Module Processor Capacity: 1 network module, 2 AS-Interface bus modules, 1 CANopen
Local Signalling
- 1 LED (green) for processor running (RUN)
- 1 LED (red) for I/O module or configuration fault (I/O)
- 1 LED (red) for processor or system fault (ERR)
- 1 LED (yellow) for activity on the terminal port (TER)
Comparison with Similar Modules
| Feature | TSXP575634M | Typical Premium CPU |
|---------|-------------|---------------------|
| Internal RAM | 32 Kwords | 1024 kB |
| Discrete I/O Capacity | 512 I/O | 2040 I/O |
| Execution Time (Boolean) | 0.5 µs | 0.0375 µs |
| Serial Link | Non-isolated, 19.2 kbit/s | RS485, Ethernet |
This comparison highlights that the TSXP575634M is optimized for smaller, cost-sensitive applications within the TSX Micro family.
Industry Applications
Packaging Machinery
In packaging lines, the TSXP575634M controls discrete I/O for sensors and actuators. Its 512 discrete I/O capacity handles multiple stations, while the 19.2 kbit/s serial link communicates with operator interfaces.
Material Handling
For conveyor systems, the module's 24 analogue I/O channels manage variable speed drives. The CANopen support integrates with motor controllers, and the non-isolated serial link simplifies wiring.
Installation & Setup Guidance
Mount the TSXP575634M in a standard TSX Micro rack. Ensure the 5 V DC supply can deliver 440 mA. Connect the serial link using a female mini DIN connector. Configure the PCMCIA card if needed for additional memory. Verify the rack arrangement: up to 2 racks of 12 slots or 4 racks of 4/6/8 slots.
Maintenance & Reliability
Periodically inspect the green RUN LED and red ERR LED for fault indications. Keep the ambient temperature between 32 and 140 °F. The module's standard format fits most enclosures. For long-term reliability, ensure the power supply is stable and within the inrush current limits (38 A).
Compatibility & Integration
The TSXP575634M integrates with TSX Micro PLC racks and supports:
- Communication modules: 1 network module, 2 AS-Interface bus modules, 1 CANopen
- PCMCIA cards for memory expansion
- Non-isolated serial link for programming and HMI
Selection Guide & Purchasing Advice
Before ordering, verify your rack configuration and I/O requirements. The TSXP575634M suits systems needing up to 512 discrete I/O and 24 analogue I/O. Contact SpareTechPLC for current availability and lifecycle status.
Frequently Asked Questions
Q: Can the TSXP575634M use a PCMCIA card for extra memory?
A: Yes. The PCMCIA card adds 128 Kwords data storage and 64 Kwords program memory.
Q: What is the execution time for Boolean instructions?
A: 0.5 µs without PCMCIA card and 0.6 µs with PCMCIA card.
Q: How many discrete I/O points can this controller handle?
A: It supports up to 512 discrete I/O.
Q: What type of serial link does it have?
A: A non-isolated serial link with 2 female mini DIN connectors operating at 19.2 kbit/s.
Q: What is the current consumption?
A: 440 mA at 5 V DC.
