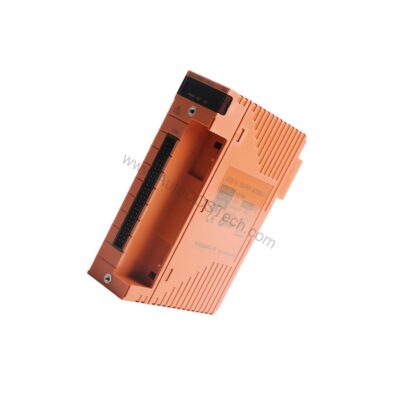

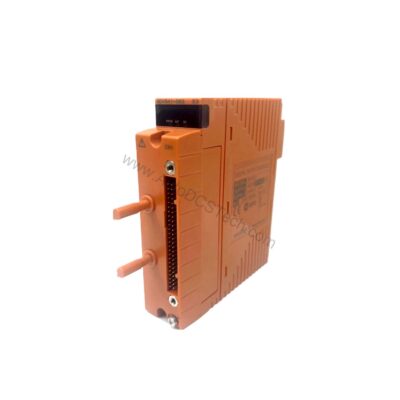

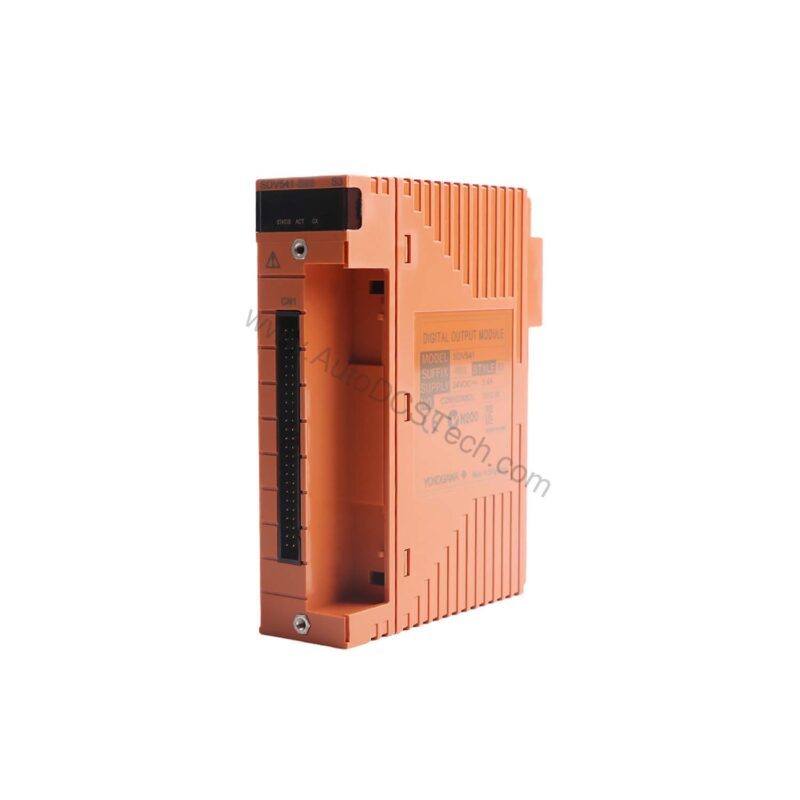

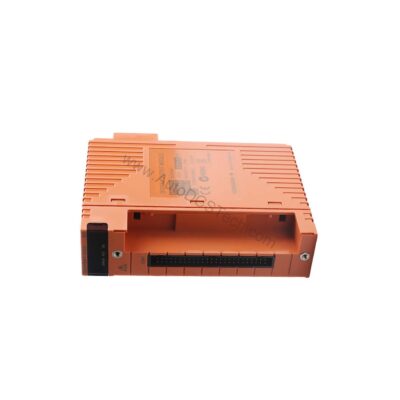

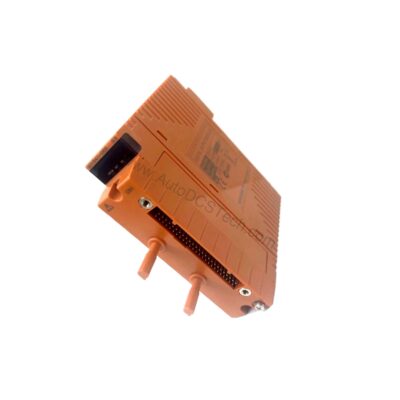

SDV541-S63: Digital Output Module
The SDV541-S63 is the Digital Output Module covered on this page. The attribute that decides whether it fits the existing installation without modification is Approx. 0.29 kg (without adapter).
The reason to specify this exact variant is digital output module. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. digital output module sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching Approx. 0.29 kg (without adapter) against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Brand | Yokogawa |
| Part Number | SDV541-S63 |
| Product No. | SDV541-S63 |
| Product Type | Digital Output Module |
| Number of Outputs | 16-channel, 24 V DC, module isolation |
| Output Voltage | 24 V DC |
| Output Voltage Drop | 1 V maximum |
| External Power Supply Rating | 24 V DC, 3.4 A minimum |
| Maximum Leak Current at Output Off | 1.6 mA |
| Maximum Load Current | 0.2 A/output line (3.2 A total) |
| Weight | Approx. 0.29 kg (without adapter) |
Availability & Condition at AutoDCSTech
| Part Number | SDV541-S63 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Japan |
