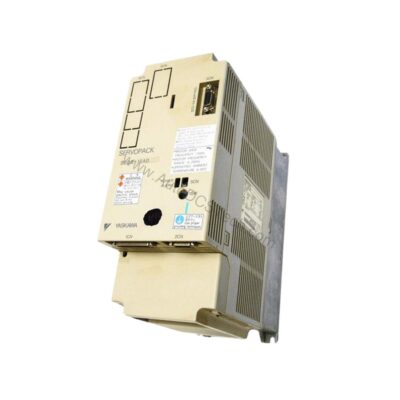

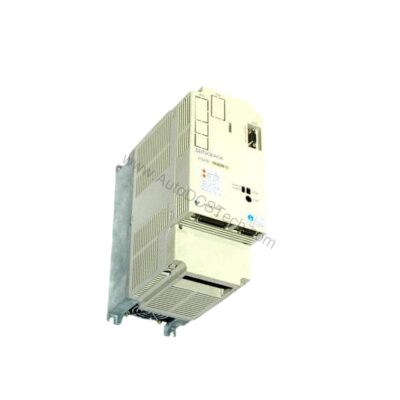

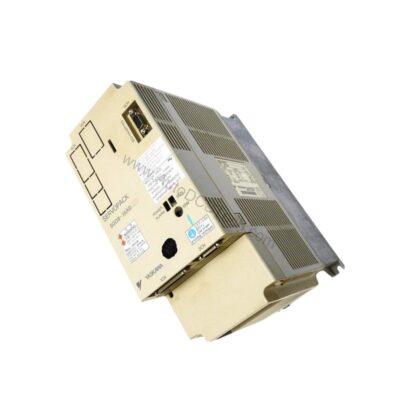

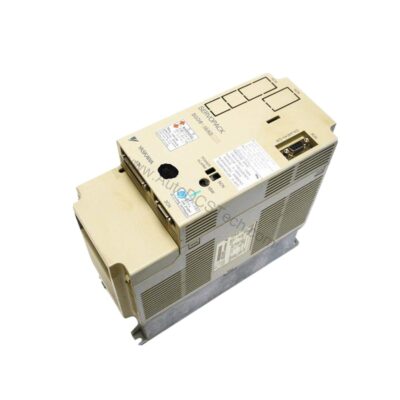

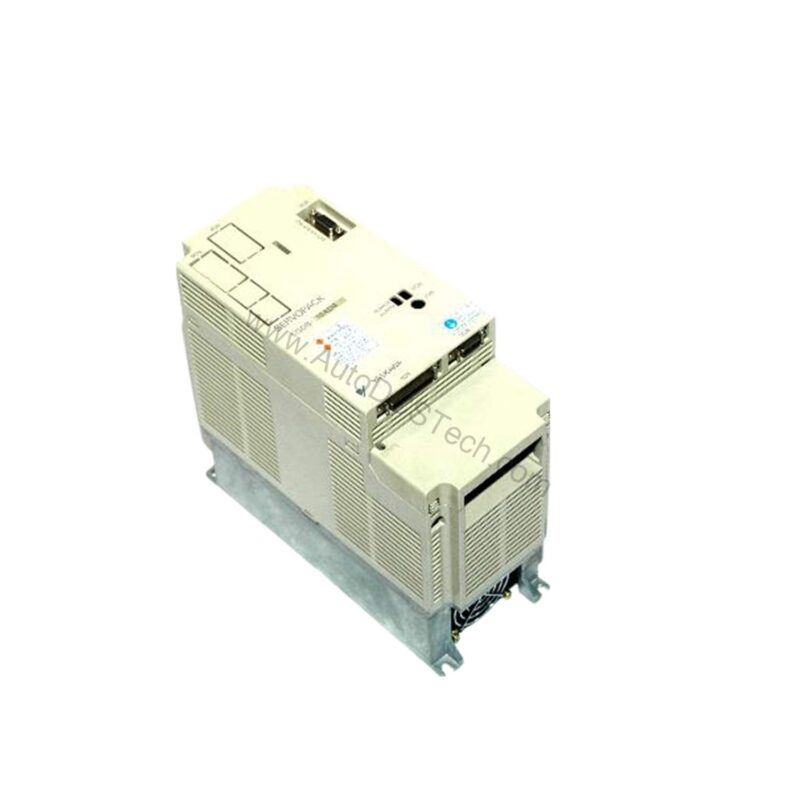

SGDB-15ADG: Servo Drive
The SGDB-15ADG is the Servo Drive covered on this page. The attribute that decides whether it fits the existing installation without modification is 1.3 kW (1.74 hp).
What separates this variant from its siblings is servo drive. A variable-speed or soft-start device is specified by the motor it must control and the starting or speed regime it must deliver. servo drive sets the current or power rating, the control method and the enclosure or network option — the things that decide whether the device starts the load without tripping and integrates with the existing control. Verifying 1.3 kW (1.74 hp) against the motor nameplate and the control architecture prevents a drive that fits the panel but cannot carry the load.
| Feature | Specification |
|---|---|
| Manufacturer | Yaskawa |
| Brand | Yaskawa |
| Part Number | SGDB-15ADG |
| Product Type | Servo Drive |
| Part Number | SGDB-15ADG |
| Power | 1.3 kW (1.74 hp) |
| Input | 200-230 VAC, 10 A, 3-phase |
| Output | 0-230 VAC, 10.7 A, 3-phase |
| Control Mode | Vector Control |
| Frequency | 50/60 Hz |
| Cooling Method | Natural Air Cooling |
| Weight | 6.00 lbs (2.72 kg) |
· Last updated:
Availability & Condition at AutoDCSTech
| Part Number | SGDB-15ADG |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Japan |
