TM3AM6G | Schneider Electric Analog Mixed I/O Module, 12-Bit

Product Overview: TM3AM6G Analog Mixed Module

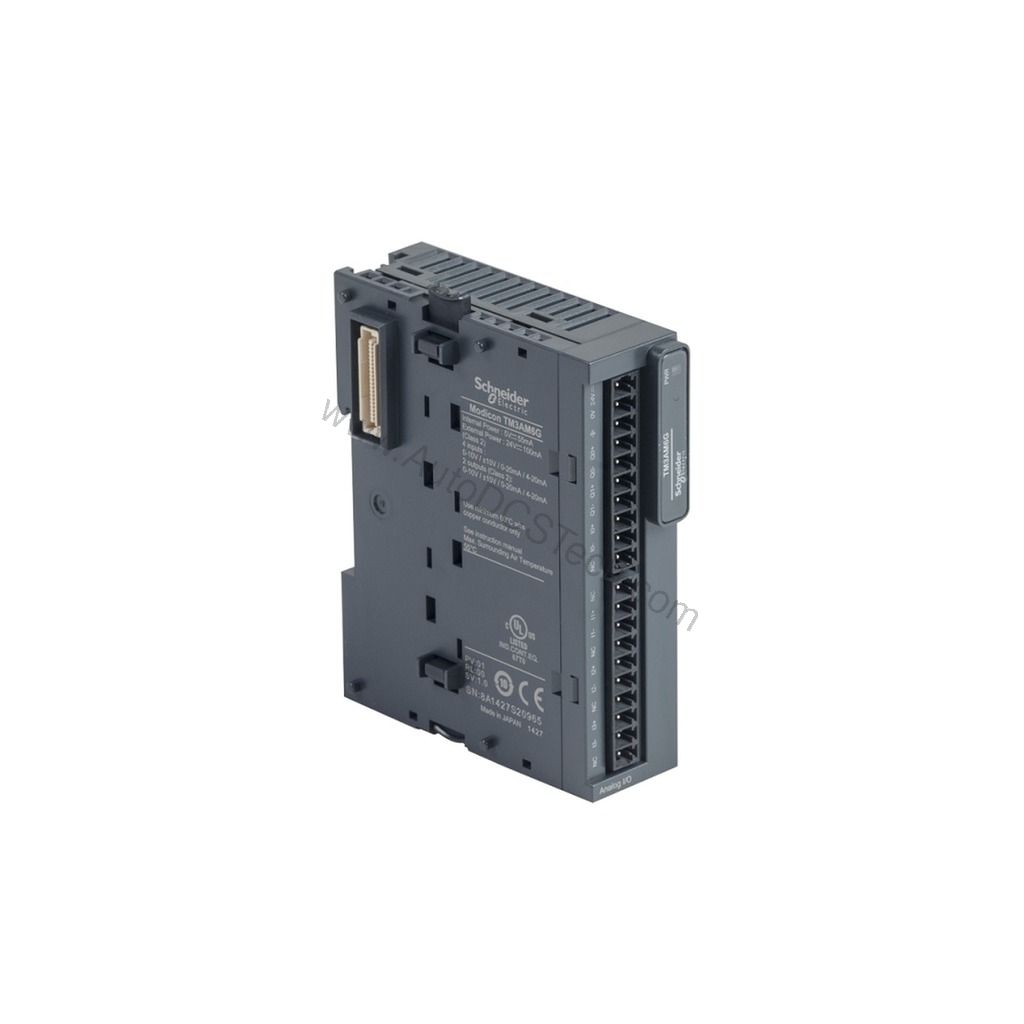

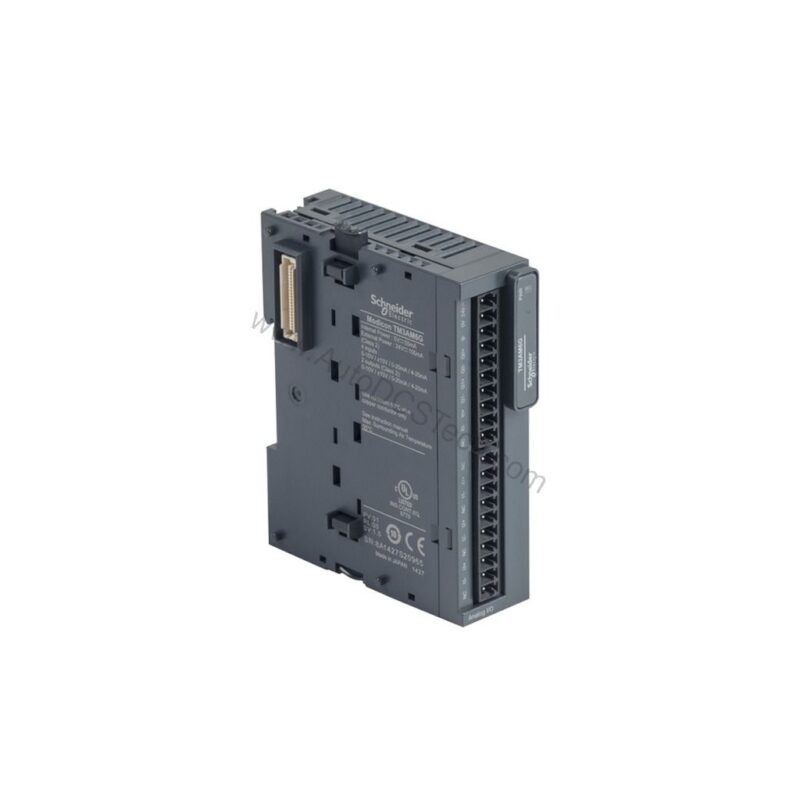

The Schneider Electric TM3AM6G is a Modicon TM3 analog mixed expansion module engineered for precise signal acquisition and control. It provides 4 analog inputs and 2 analog outputs, each configurable per channel for voltage or current operation. From a maintenance engineer's perspective, this module addresses the critical need for reliable, isolated analog signal handling in compact PLC architectures. The TM3AM6G integrates directly into Modicon M221, M241, M251, and M262 platforms via the TM3 bus, eliminating separate power wiring and reducing panel complexity.

TM3AM6G Key Features and Technical Specifications

Every specification below is verified against the manufacturer's data, ensuring engineering-grade accuracy for your integration planning.

• Channels: 4 analog inputs plus 2 analog outputs in a single module.
• Signal Ranges: 0-10 V, ±10 V, 0-20 mA, and 4-20 mA, configurable per channel.
• Resolution: 12 bits for both inputs and outputs.
• Accuracy: ±0.1% of full scale at 25 °C; ±1% FS over temperature.
• Isolation: 1500 V AC between analog I/O and supply; 500 V AC between analog I/O and internal logic.
• Response Time: 1 ms conversion plus 1 ms per channel plus one controller cycle.
• Supply Voltage: 24 Vdc via the TM3 bus.
• Bus Current: 50 mA at 5 V DC and 50 mA at 24 V DC at full load.
• Operating Temperature: 0 to +55 °C.
• Protection Rating: IP20.
• Dimensions (H×W×D): 90 × 23.6 × 70 mm.
• Weight: 0.11 kg.

The 1500 V AC isolation barrier is particularly significant for maintenance engineers. It prevents ground loops and protects the controller from field-side transients, which is essential in mixed-signal environments where analog sensors share a cabinet with variable-frequency drives.

Installation and Wiring for the TM3AM6G

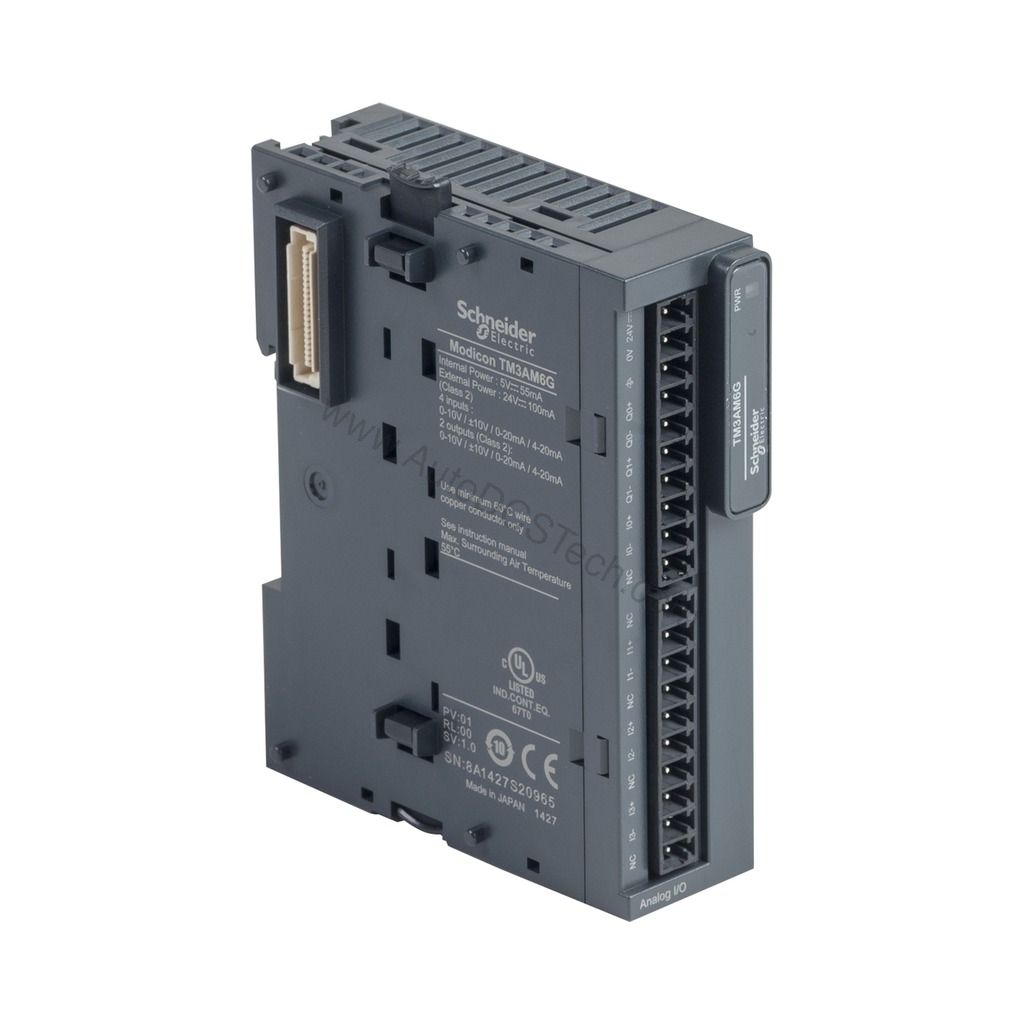

Mount the TM3AM6G alongside other TM3 expansion modules on the standard DIN rail. The removable spring-cage terminal block with 3.81 mm pitch simplifies field wiring and reduces mean time to repair. Because the module draws power from the TM3 bus, no separate 24 Vdc supply wiring is required. For signal integrity, route analog cabling away from power conductors. The IP20 rating mandates installation inside a protective enclosure. Always follow the manufacturer's safety manual for electrical connections.

Reliability and Maintenance Insights

From a maintenance perspective, the TM3AM6G offers three diagnostic indicators: channel status, module status, and bus status. These LEDs enable rapid fault localization without a programming terminal. Periodically inspect the spring terminals for secure contact and verify the operating temperature remains within 0 to +55 °C. Since the module has no moving parts, wear is minimal. However, environmental factors such as condensation or conductive dust can compromise the 500 V AC internal logic isolation over time. Therefore, maintain the enclosure's IP20 integrity and schedule annual verification of analog accuracy at 25 °C to confirm ±0.1% full-scale performance.

Compatibility and Integration

The TM3AM6G is compatible with Modicon M221, M241, M251, and M262 controllers. It communicates via the TM3 bus and requires no external gateway for these platforms. When integrating into existing systems, verify the controller firmware supports the module's diagnostic registers. For precise matching with your exact requirements, contact AutoDCSTech.
