TM5SDI4D | Schneider Electric 4-Ch 24 Vdc Sink Input Module

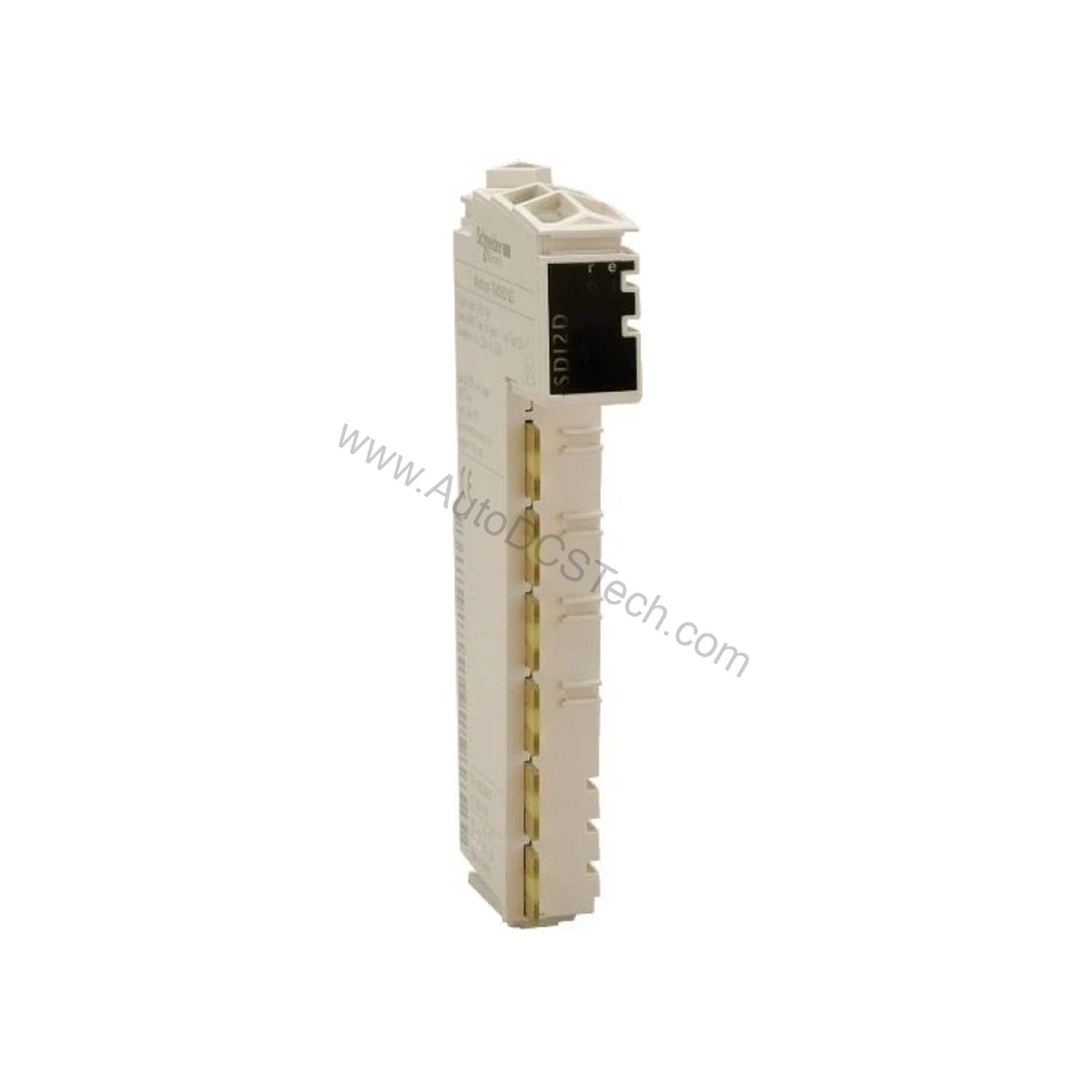

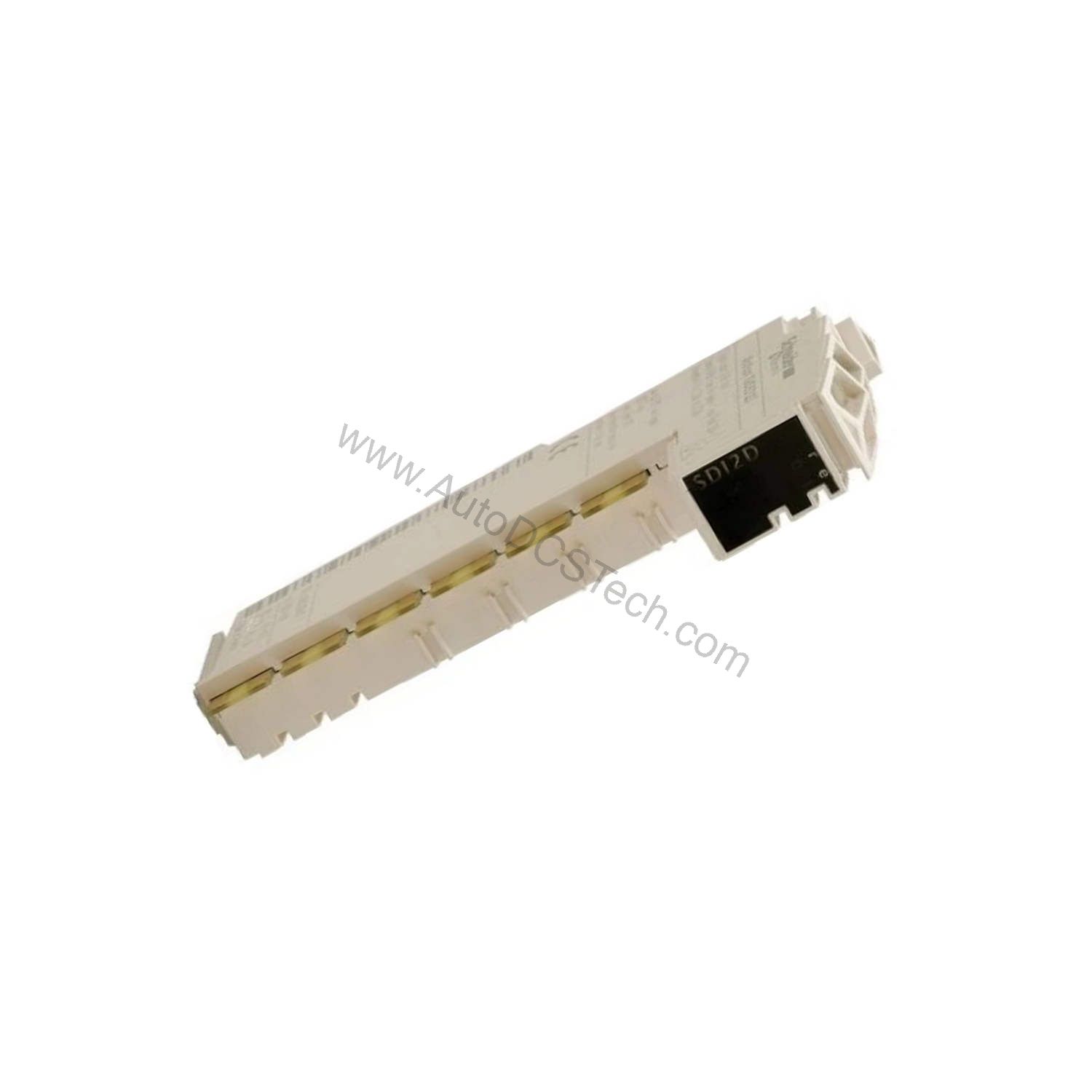

Product Overview of the Schneider Electric TM5SDI4D

The Schneider Electric TM5SDI4D is a digital input module engineered for the Modicon TM5 distributed I/O platform. It provides four sink-type input channels for 24 Vdc signals. Consequently, this module captures discrete sensor and switch states with engineering-grade precision. Each channel draws 3.75 mA at 24 Vdc, ensuring a stable load on the field supply. Meanwhile, the module operates from a nominal 24 Vdc range of 19.2 to 28.8 Vdc, accommodating real-world supply variation. Because the TM5SDI4D communicates via the TM5 bus, it integrates directly into compatible Modicon controllers without additional interface hardware.

TM5SDI4D Electrical and Isolation Characteristics

Isolation is a critical parameter for distributed I/O. The TM5SDI4D provides no isolation between channels, yet it maintains 500 Vrms AC isolation between the channel group and the bus. This separation protects the controller backplane from field-side transients. In addition, the module consumes only 0.55 W, minimizing thermal load inside the enclosure. Bus current draw is 20 mA at 5 V DC from the TM5 bus, plus 15 mA at 24 V DC when all inputs are on. The input filter is configurable, with a response time of ≤3 ms. As a result, the module suits applications requiring both noise rejection and timely signal capture.

Key Specifications

• Module type: Digital input (sink)
• Channels: 4
• Signal type: 24 Vdc, sink (Type 1 per IEC 61131-2)
• Input range: 24 Vdc nominal, 19.2–28.8 Vdc
• Input current: 3.75 mA per channel at 24 Vdc
• Isolation: No channel-to-channel isolation; 500 Vrms AC channel-to-bus
• Response time: ≤3 ms (configurable input filter)
• Diagnostics: ModuleOK, DcOk, NetworkOk; short-circuit and overload protection
• Power consumption: 0.55 W
• Protection rating: IP20

Comparison with Alternative Input Modules

When selecting a digital input module, engineers often compare sink versus source configurations. The TM5SDI4D uses sink inputs, meaning field devices switch the 24 Vdc supply to the input terminal. In contrast, source modules require the sensor to provide a positive voltage to the input. Consequently, sink modules pair naturally with NPN sensors and many industrial switches. Additionally, the TM5SDI4D offers 4 channels in a compact form factor. Competing 8-channel modules may reduce per-channel cost, yet they consume more panel width. For space-constrained installations, the TM5SDI4D delivers an exact channel count without wasted capacity. Furthermore, its 500 Vrms AC channel-to-bus isolation meets the separation needs of mixed-signal cabinets.

Installation and Compatibility Notes

The TM5SDI4D mounts directly onto the TM5 bus. It is compatible with Modicon M241, M251, M258, and LMC058 platforms. During installation, verify that the 24 Vdc field supply stays within the 19.2–28.8 Vdc range. Because the module provides no channel-to-channel isolation, avoid mixing circuits that require separate reference grounds. For network integration, the TM5 bus handles communication; no external gateway is needed for these controllers. However, confirm cable and connector requirements with the supplier before commissioning.
